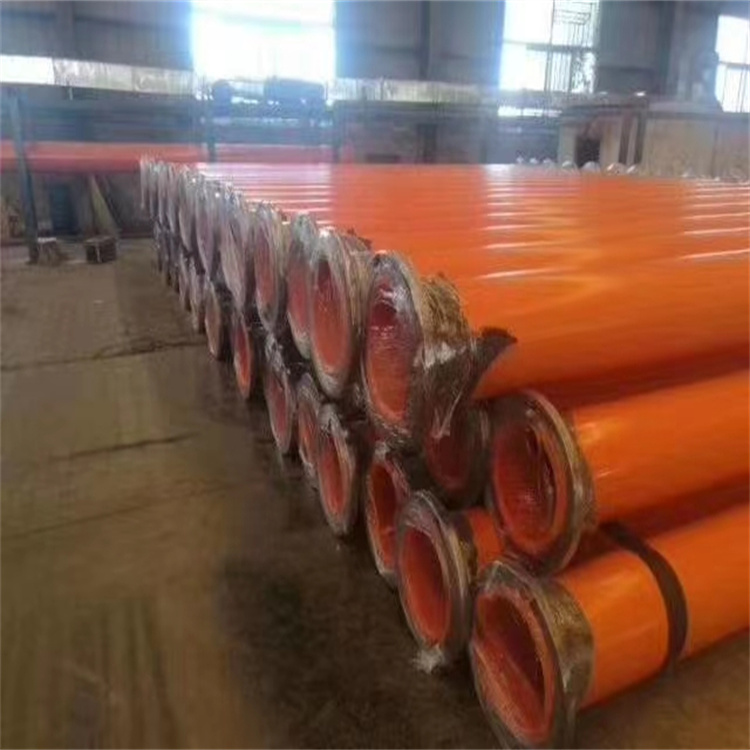

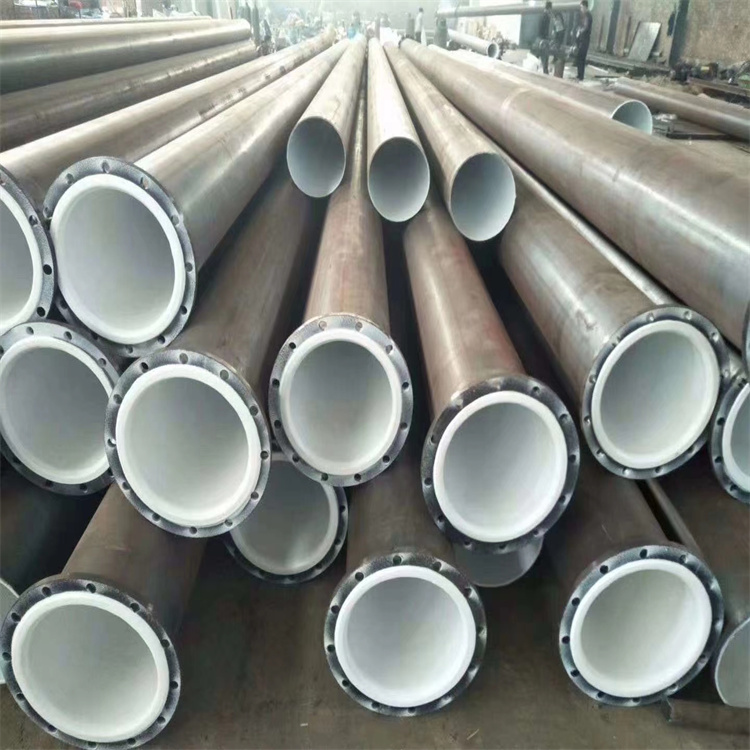

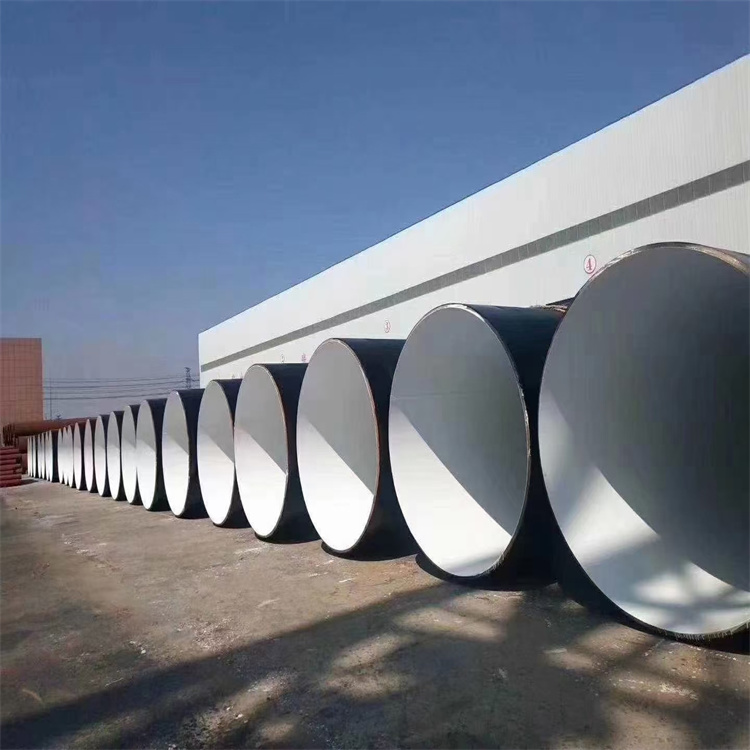

Plastic Coated Steel Pipes, also known as plastic coated pipes, steel-plastic composite pipes, or plastic coated steel-plastic composite pipes, are steel pipes with a plastic corrosion-resistant layer熔接 onto their inner surface (bottom pipe) or both inner and outer surfaces via spray, roll, immersion, or absorption techniques. These pipes offer excellent corrosion resistance and low friction resistance. Epoxy resin coated steel pipes are suitable for conveying media such as water supply and drainage, seawater, warm water, oil, and gases. Polyvinyl chloride coated steel pipes are suitable for conveying media such as drainage, seawater, oil, and gases.

Universal Colors: Black, Grey, Blue, Red, White, Green.

Coating Thickness: PE (modified polyethylene) coating thickness ranges from 400um to 1000um, EP (epoxy resin) spray thickness is from 100um to 400um.

Coating Method: PE (polyethylene) is hot dipped galvanized EP, and (epoxy resin) is for internal and external spraying.

Product Specifications: DN15 – DN1660

Ambient Temperature: -30°C to 120°C

Connection Methods: Threaded (DN15-DN100), Grooved (DN65-DN400), Flanged (suitable for any diameter), Welded, Bimetallic connection, Socket, Pipe joint, Seal connection, etc.
