Horizontal mixer

Cornell's over 20 years of experience in the mixing industry, offering a full range of CHS twin-shaft mixers and CDS twin-screw mixers, factory direct pricing, suitable for various construction materials, environmental protection, and commercial concrete industries.

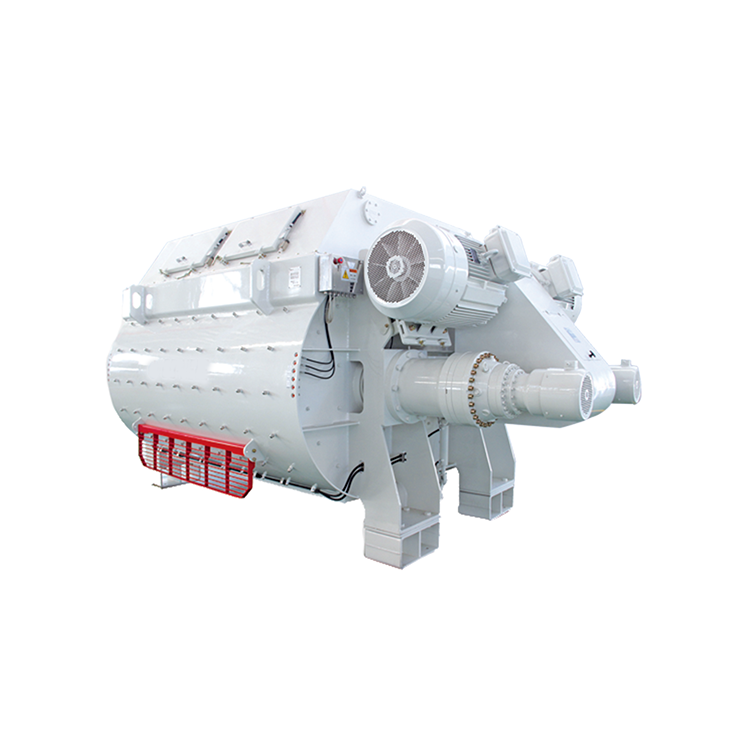

The Konele Horizontal Concrete Mixer utilizes European technology and is suitable for producing commercial concrete, hydraulic concrete, prefabricated components, environmentally friendly materials, and wall panel materials. The mixing unit features 60° and 90° angles.

Horizontal mixer features

Axle end seal equipped with floating oil seal rings and a multi-layer labyrinth seal structure composed of specially designed sealing elements and mechanical seals, ensuring reliable sealing, high stability, and long service life. Features an automatic lubrication system with four independent oil pumps for supply, high working pressure, and superior performance.

Top-mounted motor installation with belt self-tensioning device (patented technology), enhancing transmission efficiency, preventing excessive belt wear and damage, and reducing maintenance costs. The drum adopts a large-volume ratio design concept, effectively improving mixing efficiency, extending the service life of the shaft end seal, and minimizing the chance of material adhering to the shaft.

Large opening design of the discharging door prevents material jamming and leakage, with minimal wear and long-lasting sealing effect.

The mixing unit features a patented design with a 60° angle arrangement, the mixing arm is streamlined cast, ensuring even mixing with low resistance and minimal material adherence to the shaft. Equipped with a military-grade planetary reducer, it offers smooth transmission and high load capacity.

Available options include Italy original gearboxes, Germany original fully automatic lubrication pumps, high-pressure cleaning equipment, and temperature and humidity testing systems.
