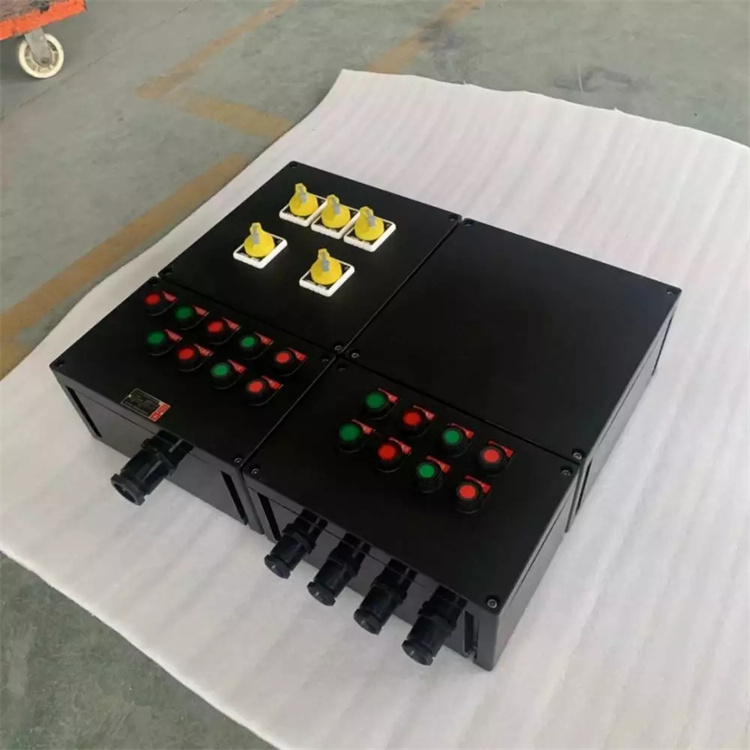

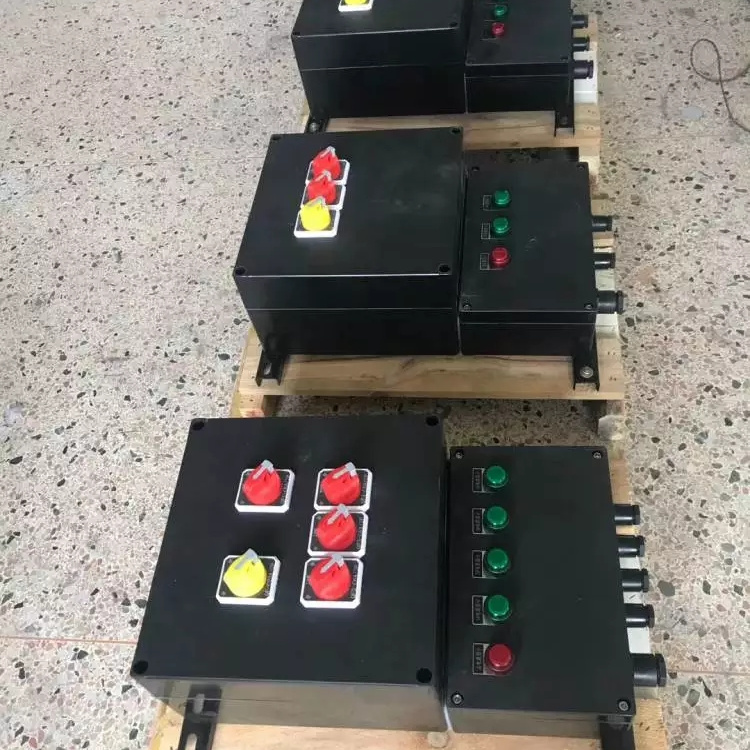

BXK8050 Explosion-proof and Corrosion-resistant Control Box - Suitable for Limited Applications:

◆Hazardous areas in Zones 1 and 2

◆Explosive gas conditions for IIA, IIB, IIC categories.

◆ Widely used in dangerous places such as kerosene, chemical industry, marine areas, and docks. Capable of clear switching between 50HZ, 220/380V, and DC voltage up to 220V, it efficiently controls the start and stop of multiple electric motors over long distances.

BXK8050 Explosion-proof and Corrosion-resistant Control Box Features:

BXK8050 Explosion-proof Control Box is suitable for switching 50Hz, 220/380V AC and DC voltage up to 220V, for clear and long-distance control of the start and stop of multiple electrical motors.

◆The housing is constructed with an explosion-proof shell, explosion-proof components (such as indicator lights, ammeters, buttons, switches), and terminal blocks, etc.

◆ HousingReceivedGlass fiber unsaturated polyester resin molded or accepts SS304 stainless steel plate bending and welding. Features an aesthetically pleasing, corrosion-resistant shell, with excellent anti-static, impact resistance, and thermal shock resistance.

◆The internal components are firmly seated in the specified tracks, with the protrusions on the components and the grooves on the tracks ensuring the components are securely positioned. The small spacing between components is 42 millimeters.

◆ Available for steel pipe or cable wiring.

◆ This product offers various modifications, which can be constructed based on the electrical circuit diagrams provided by the customer.

Section 3: BXK8050 Explosion-proof and Corrosion-resistant Control Box Technical Specifications:

Regulation Implemented: GB3836-2000 IEC60079

2. Explosion-proof marking: EXedIICT6, DIPA20TA, T6

3. Rated Voltage: AC 380V/220V/50Hz

4. Rated Current: 10A

5. Protection Level: IP54, IP65

6. Corrosion Resistance Grade: WF2

7. Usage Category: AC-3 / AC-4

8. Import Specifications: G3/4” - G1 1/2”

9. Cable Specifications: Φ9mm - Φ25mm

10. Interior Components: Explosion-proof button BA8050, explosion-proof indicator BD8050, this series typically features red for stop, green for start; Explosion-proof switch BK8050 series, explosion-proof ammeter CP series.

Section 4: Order Instructions:

Due to the versatile arrangement of explosion-proof and corrosion-resistant box components, the specific component layout must be based on the electrical circuit diagram provided at the time of customer order. We can either collaborate on the component layout diagram or, upon request, handle the design and production for you.
