Flexible bend-resistant cables for chain conveyors, robots, mechanical (robotic) arms, or mobile applications.

Flexible Insulating Sheath

Flexible, oil-resistant, bend-resistant

750,000 bends-resistant

Product Features:

Ideal for environments with frequent movement or bending, offering flexibility, oil resistance, and a bend life of over 7.5 million cycles.

Product Model:

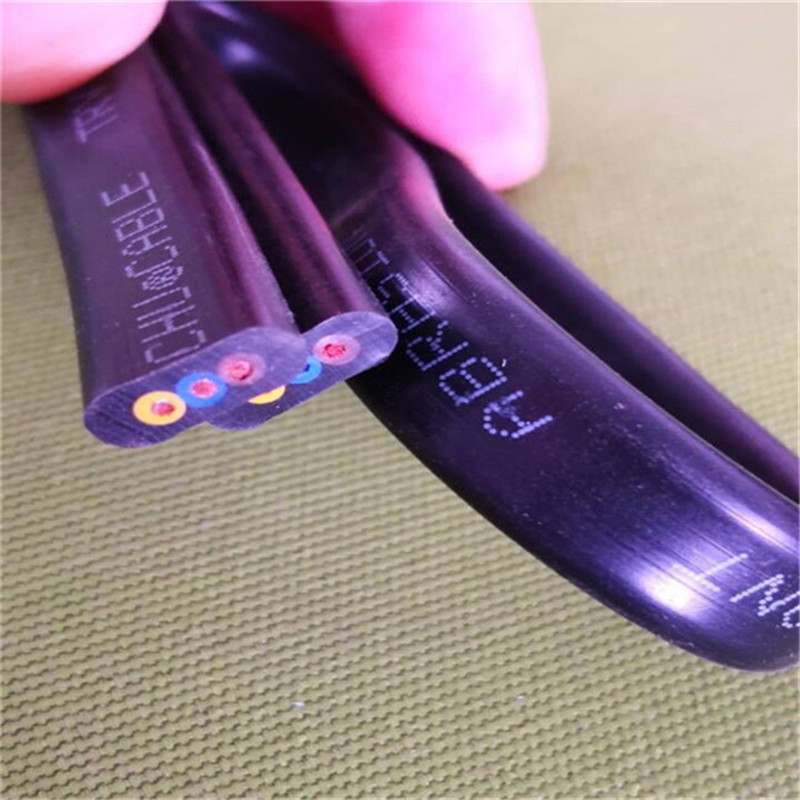

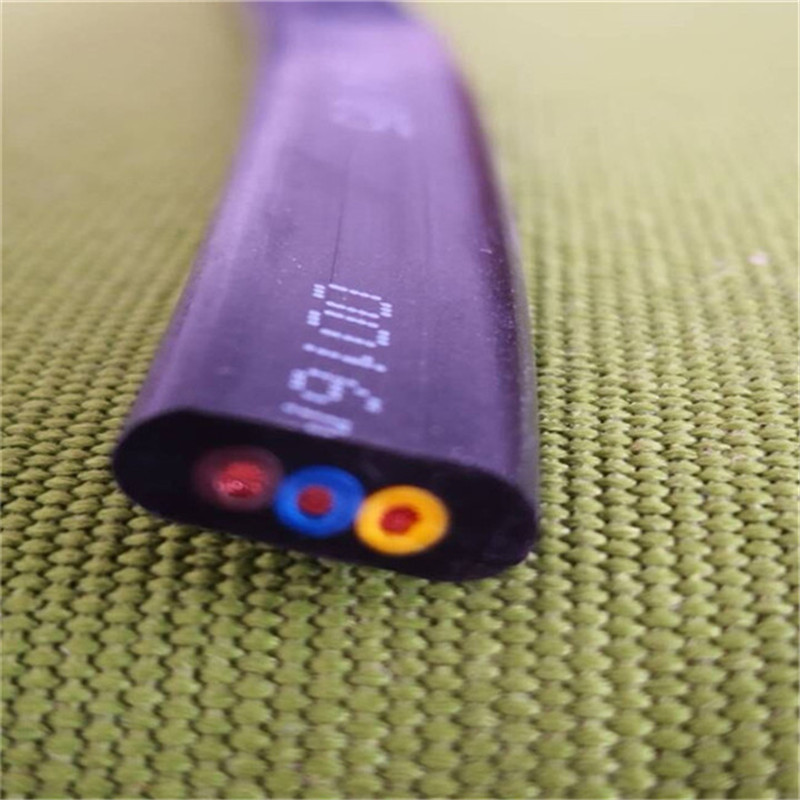

TRVV-B Flat Medium-Speed Flexible Duct Cable

Cable Structure:

Conductor: Super-fine drawn oxygen-free copper wire, conforms to VED0295 CLASS 6 standard

Insulation: Flexible Insulation

Nitrile Flexible Sheath

Color: Black (RAL 9005) Grey (RAL 7001) Orange (RAL 2003)

Rated Voltage: <0.5mm²: 300/300V; ≥0.5mm²: 300/500V

Test Voltage: 2000V

Operating Temperature Range:

Fixed Installation: -30℃ to +90℃; Portable Installation: 15℃ to +90℃

Bend Radius:

Fixed Installation: 5x Cable Outer Diameter

Mobile Installation: Bending Radius is 7.5xD when stroke is less than 10 meters.

When the travel is ≥ 10 meters, the bend radius is 10xD.
