Product Features: Over 20 million bending cycles.

Waterproof, oil-resistant, cold-resistant, UV-resistant, wear-resistant, flame-retardant. Suitable for installation in dry or humid indoor environments, under free continuous reciprocating motion without strong stress relaxation or forced guidance, particularly in frequently bending situations in industrial settings, such as woodworking machinery, machine tools, logistics conveying systems, and lifting equipment.

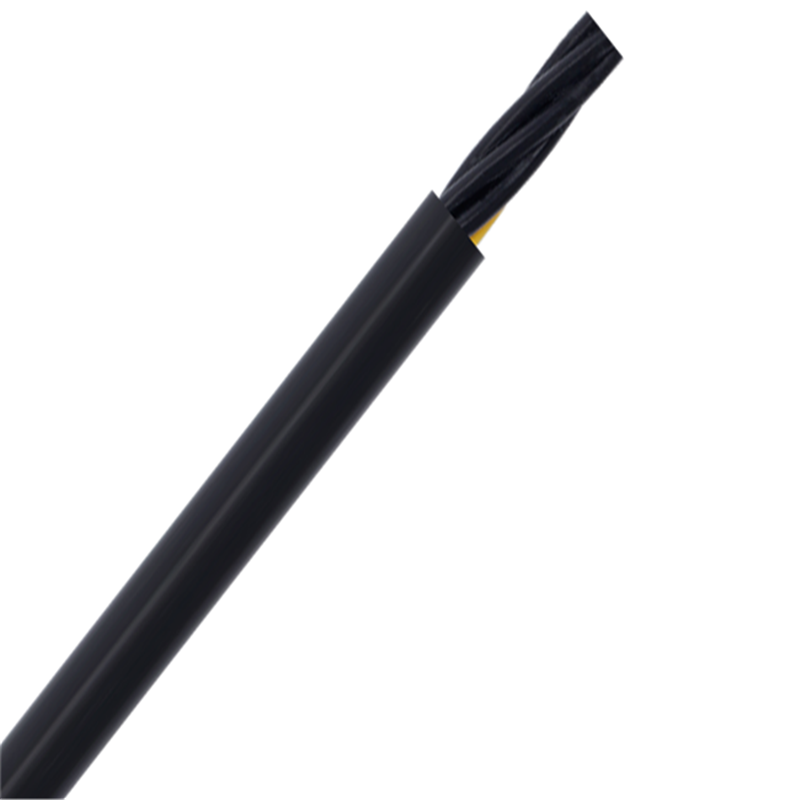

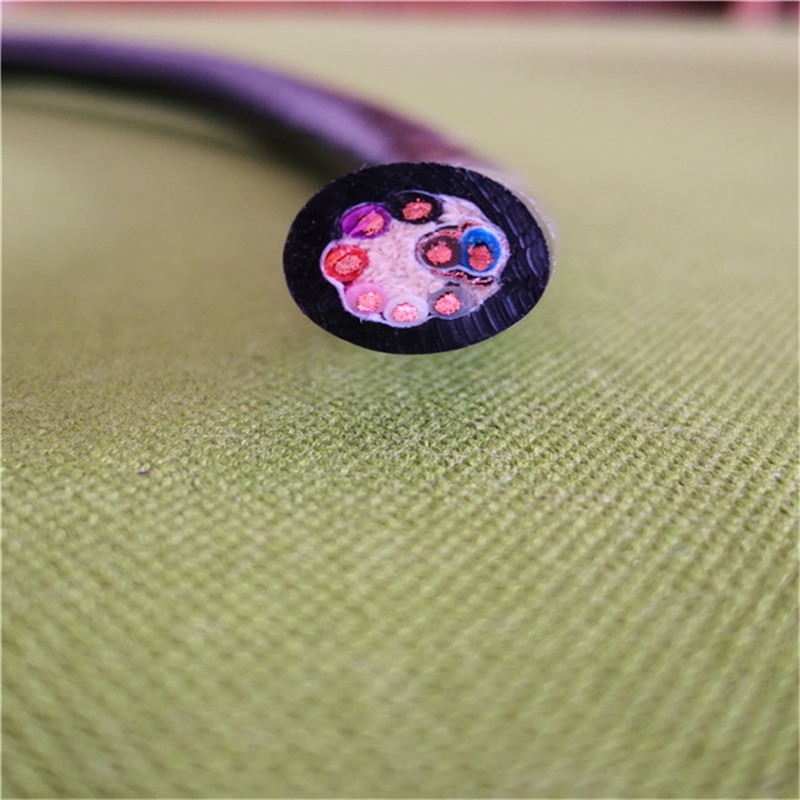

Cable structure

Conductor: Multi-strand ultra-fine drawn oxygen-free copper wire

Insulation: Special blended PVC insulation

Color:

≤0.5mm Color Representation: Brown, Black, Blue, Purple, Pink, Orange

≥0.5mm black digital, white numbered identification, with over 3 cores and yellow-green grounding wire (yellow-green optional)

Protective Cover: Special PUR

Black (RAL 9005) or Grey (RAL 7001)

Rated Voltage:

Cross-section < 0.5mm²: 300/300V

Cross-sectional area ≥ 0.5 mm²: 300/500V

Test Voltage: 2000V

Operating Temperature Range: Fixed Installation: -50℃ to +90℃

Mobile Installation: -30℃ to +90℃

Small bend radius: Fixed installation: 5 times cable outer diameter.

Mobile Installation: When stroke is less than 10 meters, the bending radius is 8.0×d.

When the travel is ≥ 10 meters, the bending radius is 10 x d
