Plug-inSteel GratingType

Plug-inSteel GratingTypes can be divided into four categories: Depending on the insertion method and angle, they can be categorized as pressedSteel GratingOverloadSteel GratingIntegratedSteel GratingSunshade curtain styleSteel GratingWait.

1.Press-fit connectorSteel Grating:After cutting slots in the flat steel being carried,Bar steel press lock forming. Production of standard typeSteel GratingThe processing height is100mm。Steel GratingLength is typically less than2000mm。

2.Heavy-duty connectorSteel GratingInterlocking high and flat steel bars with crossbars.1200A compacted shape under tons of pressureSteel GratingProduct. It is suitable for high load-bearing spans.

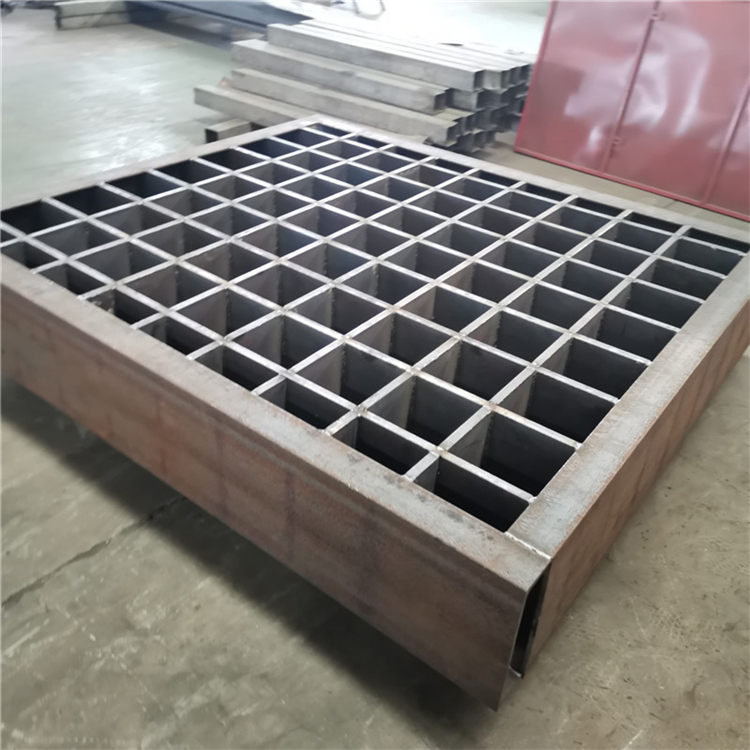

3.Integrated plug-inSteel GratingIntegrated plug-inSteel GratingThe bearing flat steel and crossbar flat steel have the same height and slot depth as the bearing flat steel.1/2。Steel GratingHeight not exceeding100mm。Steel GratingLength is typically less than2000mm。

4.Sunshade type connectorSteel Grating:Sunshade Type ConnectorSteel GratingFlat steel carrying capacity30°Or45°Chute,Slotting, flattening, and locking die forming of channel steel. We can deliver grating panels with different spacing and specifications as per requirements, available in materials such as carbon steel, stainless steel, aluminum, etc. The height of the grating panels is less than100mm。
