State NanGuan Electronic Equipment Co., Ltd. is located in the convenient and economically developed Xiangcheng District of Suzhou City, specializing in the research and production of nitrogen cabinets.
Detailed specifications and parameters of the NC1434 fully automatic gas-saving nitrogen cabinet, as follows:
Please provide the Chinese content to be translated. Numbers | Product Name | Fully Automatic Regulated Temperature Nitrogen Cabinet | |||||||
| Model | NC1436 | ||||||||
| Content Volume | 1430L | ||||||||
External Dimensions W*D*Hmm | W1200*D700*H1830 | ||||||||
Internal Dimensions W*D*Hmm | W1155*D650*H1660 | ||||||||
Dehumidification Range | 1% to 50% RH (tested under no-load conditions)） | ||||||||
Control Panel | LED digital control, genuine Honeywell brand sensor from the USA | ||||||||
Cabinet Material | 1.0mm Cold Rolled Steel Sheet, cabinet made with laser cutting, numerical punch automatic press and CNC sheet metal equipment for production, high manufacturing precision, good cabinet sealing. The cabinet surface is treated with resin and anti-static powder coating. Fully automatic powder coating line for spraying | ||||||||
Door | 6 swing doors opening up and down as well as left and right.Please provide the Chinese content you would like translated into American English.5mm explosion-proof reinforced tempered glass | ||||||||
Shelf panel | Standard steel adjustable shelf panels, 5 pieces (positions can be adjusted, quantity can be increased), each panel can support 50kg. | ||||||||
Overall anti-static | Static Dissipation Factor: 106-108.Grounding chain | ||||||||
Power Supply | 220V/AC/50Hz, Average Power: 15W | ||||||||
Product Safety and Maintainability | The entire product is designed with modular construction and error-proofing features, making it easy to troubleshoot. Customers can easily resolve issues over the phone without affecting the normal operation of the equipment. | ||||||||
Technical Features | Variable flow throttle technology in industry applications，Adjustable nitrogen pressure and flow controller for loading boxes. Achieves both rapid dehumidification and nitrogen conservation. More nitrogen-efficient than traditional nitrogen cabinets. Energy-saving and environmentally friendly. Also enhances safety and significantly reduces operational costs. Vertical jet inside the box ensures more even nitrogen distribution. Enhances the antioxidant properties of items. | ||||||||
Selection Configuration:

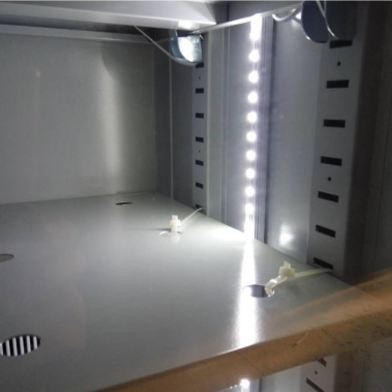

1. LED lighting inside the box
Over-temperature and humidity alarm
3. Smart Storage and Retrieval Product Features
4. Desiccant dehumidification function for the main unit.
5.485 Computer Network Monitoring
6. The cabinet and shelves are available in optional stainless steel material.
7. Accept size customization
