The stainless steel metal chain plate conveyor uses metal chain plates to pull workpieces for flat conveying movement, achieving the production process objectives. The assembly line features a modular assembly pattern, with workstations that can be set according to process requirements. The workstations are equipped with power outlets, toolboxes, and material boxes, ensuring a quick and orderly process. Typically, it is driven by a chain plate machine, also known as a plate chain machine.
Direct metal chain plates are available in widths of 63.5, 82.5, 101.6, 114.3, 152.4, 190.5, 254, and 304.8; curved chain plates come in widths of 82.5, 114.3, 152.4, 190.5, and 304.8. They are widely used in automatic conveying, distribution, and post-processing packaging lines for industries such as food, canned goods, pharmaceuticals, beverages, cosmetics, detergents, paper products, seasonings, dairy, and tobacco.
Metal conveyor chains are available in two types: stainless steel and stainless iron. The bending styles include winged bend and magnetic bend.

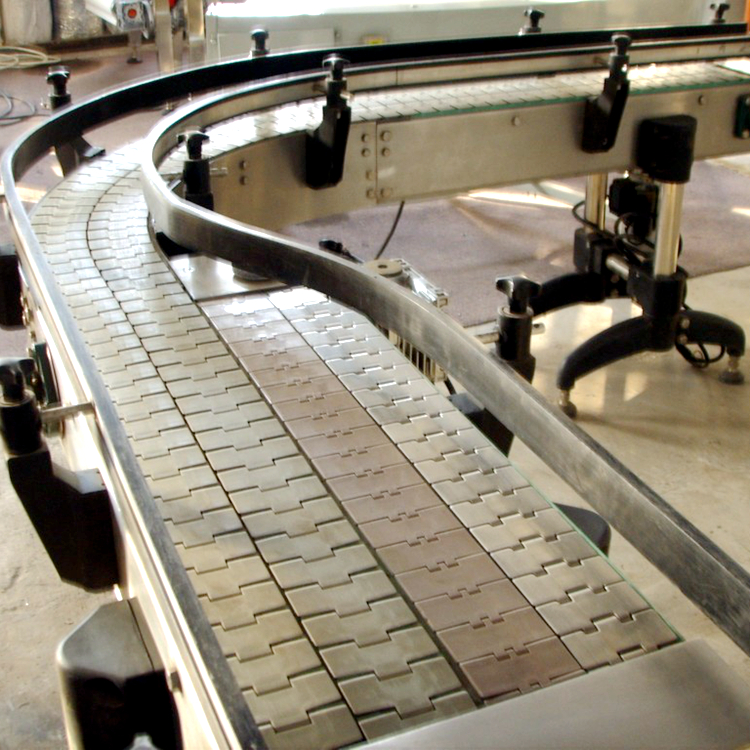

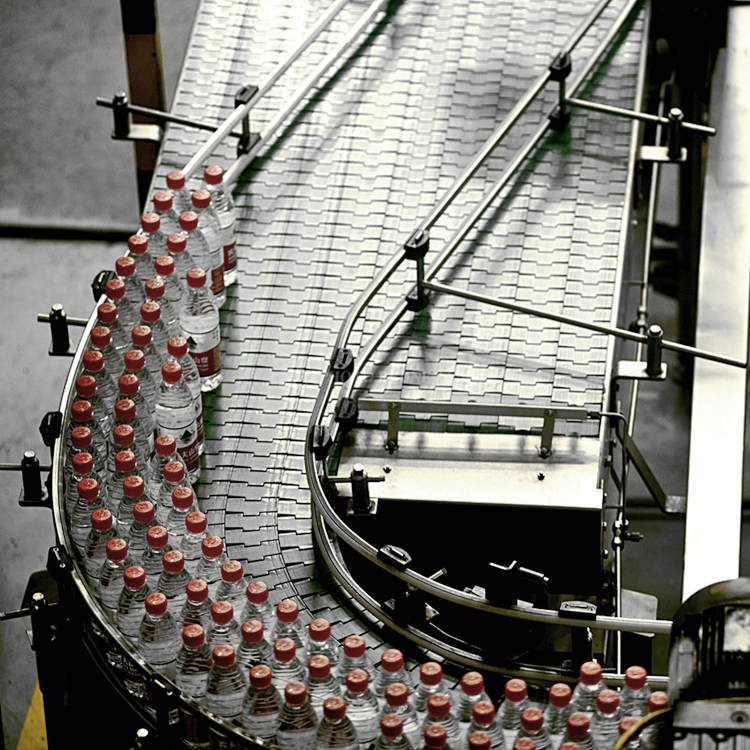

The curved metal chain plate conveyor utilizes π-shaped curved chain plates as the conveying medium, which run on curved guides made of high molecular polyformaldehyde; or it can use stainless steel curved chain plates with magnetic curved guides, ensuring the conveying chain plates always remain within the guides for smooth operation and easy installation. Depending on the requirements of your product, different widths and shapes of chain plates can be selected to achieve flat conveying, curved conveying, lifting, and lowering.
The stainless steel chain plate conveyor is a conveying machine that utilizes stainless steel chain plates as the conveying medium. It features the following characteristics:

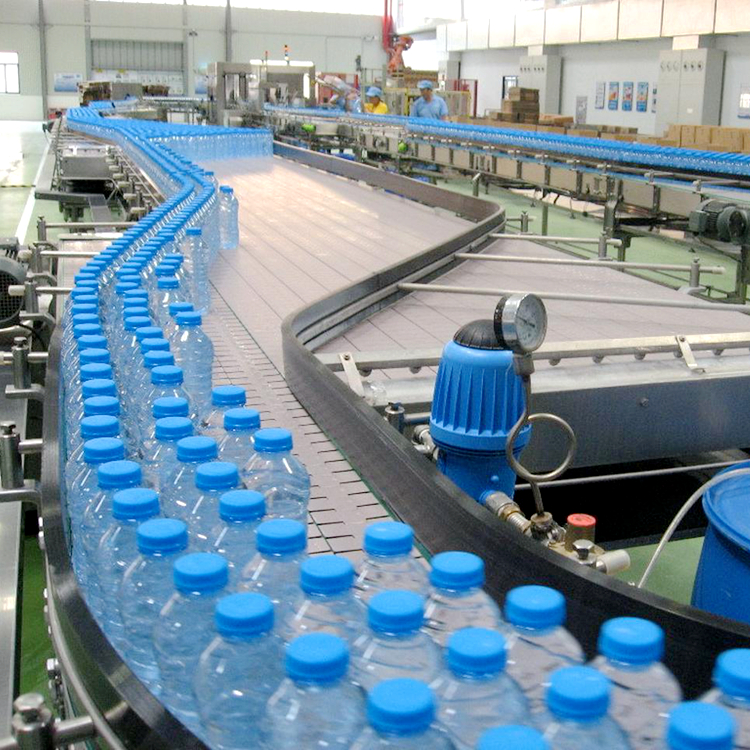

1. The stainless steel chain conveyor features a flat and smooth conveying surface with low friction, ensuring a stable transition of materials between conveyors. It is capable of transporting various items such as beer, beverages, glass bottles, PET bottles, cans, and also various packaging boxes. Available straight chain widths include 63.5, 82.5, 101.6, 114.3, 152.4, 190.5, 254, and 304.8 mm. Curved chain widths are available in 82.5, 114.3, 152.4, 190.5, and 304.8 mm. Widely used in automatic conveying, distribution, and post-processing packaging lines for food, canned goods, pharmaceuticals, beverages, cosmetics, detergents, paper products, seasonings, dairy, and tobacco industries.
2. Chain plates are available in stainless steel, with a wide variety of specifications and types. They can be selected according to the material handling and process requirements, meeting the diverse needs of various industries.
3. The rack material is divided into aluminum profiles, ordinary carbon steel, and stainless steel.
4. High conveying capacity, capable of bearing larger loads, suitable for use in industries such as electric vehicles, motorcycles, and generators.
5. Accurate and stable conveying speed, ensuring precise synchronous conveyance.
6. Chain plate conveyors are generally washable with water or can be soaked directly in water, making cleaning convenient and meeting the hygiene requirements of the food and beverage industry.
7. Flexible equipment layout. Horizontal, inclined, and curved conveyance can be completed on a single conveyor line.
8. Simple in structure, easy to maintain
