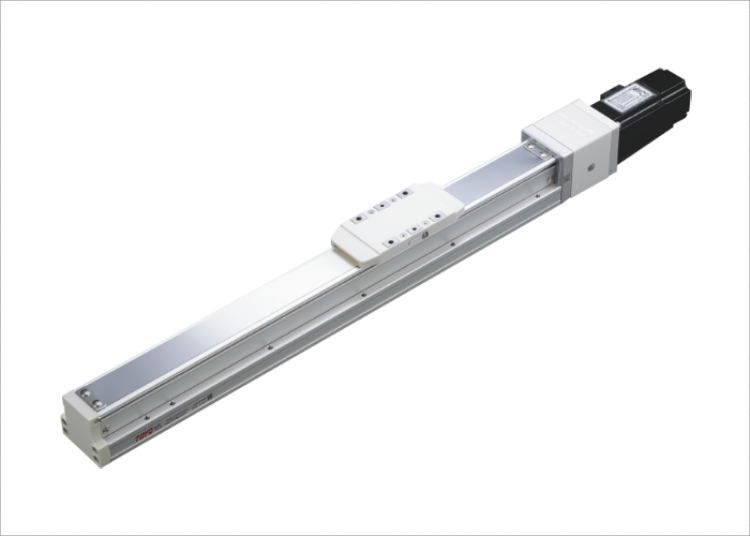

Ball Screw Linear Module GTH5
Product Specifications:
Repeatability accuracy: ±0.005 mm
Screw Lead: 2/5/10/20 (mm)
Maximum speed: 100/250/500/1000 (mm/s)
Maximum Load Capacity: Horizontal Use: 30/30/15/10 (kg)
Maximum Load Capacity for Vertical Use: 10/10/5/2.5 (kg)
Stall Thrust: 854/341/170/85 (N)
Standard Travel: 50-800 / 50 (mm)
Tips: If the stroke of the screw module exceeds 600, there will be screw eccentricity. Please reduce the speed at this time.
Motor speed adjustment set to 0.2 seconds.








Our company specializes in the manufacturing of precision precision engineering automation products, with our own CNC precision processing center. We offer one-stop customized non-standard services tailored to the needs of customers from various industries, featuring a complete range of standard product specifications and providing various precision automation products. For more information, please feel free to inquire.
