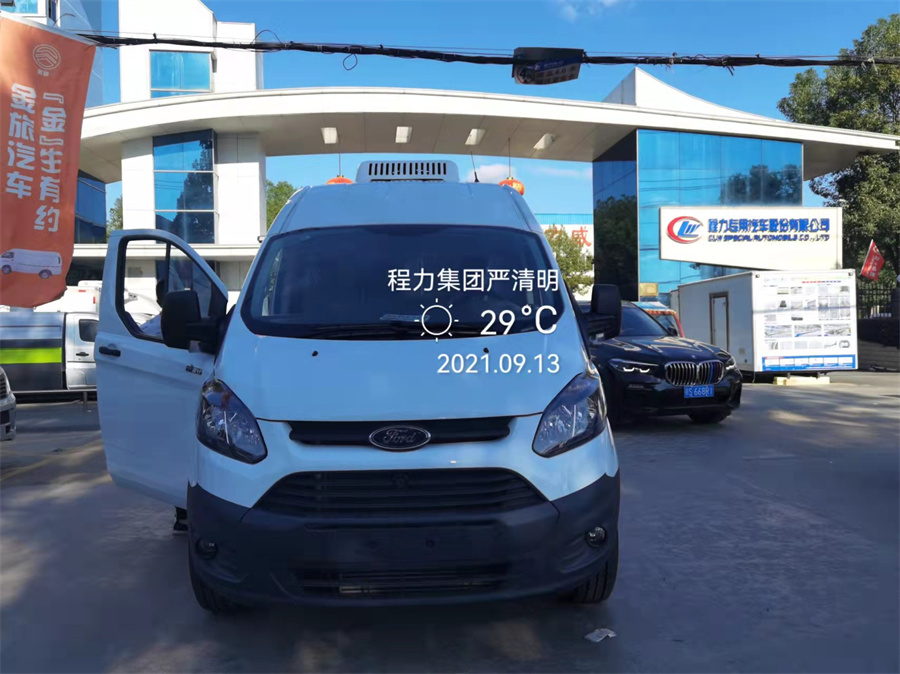

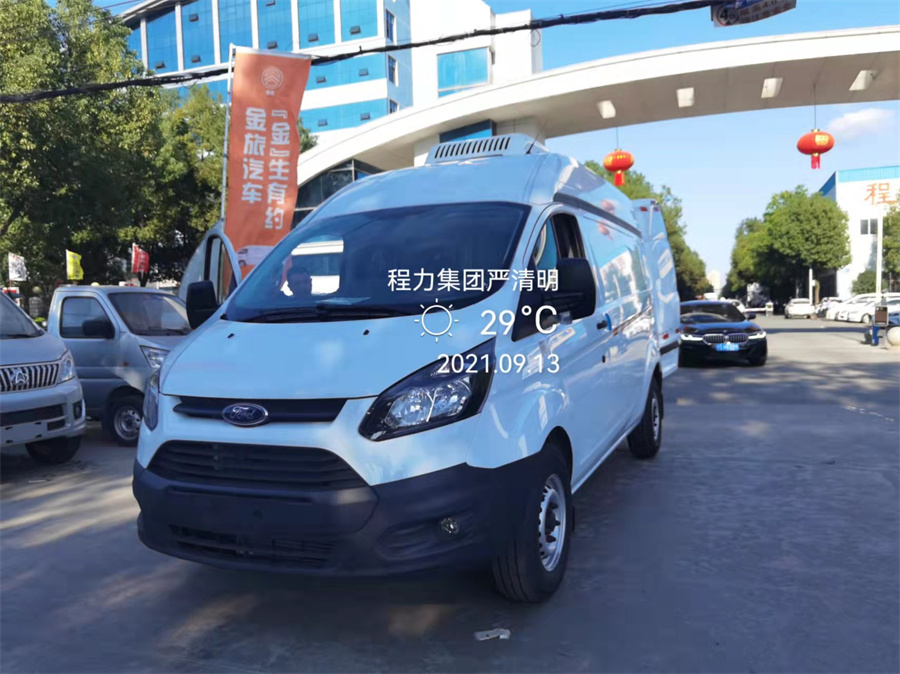

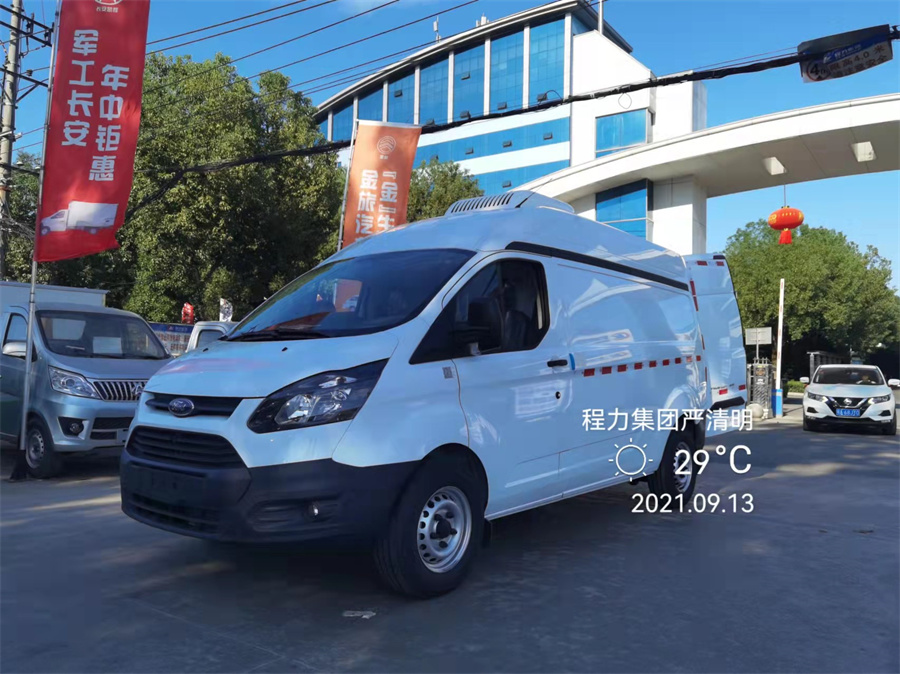

Ford New Transit V362 Refrigerated Van

Vehicle Model: CLW5040LCJDP Refrigerated Truck

Chassis Model: JX5043XXYTF-M6

Dimensions: 5341×2032×2580

Interior Dimensions: 2290×1450×1550

Chassis Configuration: Ford PUMA 2.0T Direct Injection, Common-Rail Diesel Turbo Engine. Power: 90KW, 122HP, Torque: 300N.M.

Four-wheel disc brakes, 5-speed manual transmission, MacPherson struts with independent suspension, solid steel springs for rear suspension without independent suspension.

Front-wheel drive, standard with Bosch 9.1 ABS+EBD, multi-functional steering wheel, driver's airbag, electric glass, remote central control.

Side-hinged door fully open, rear double doors, rear blind window, reverse parking sensor.

【Apparel Configuration】

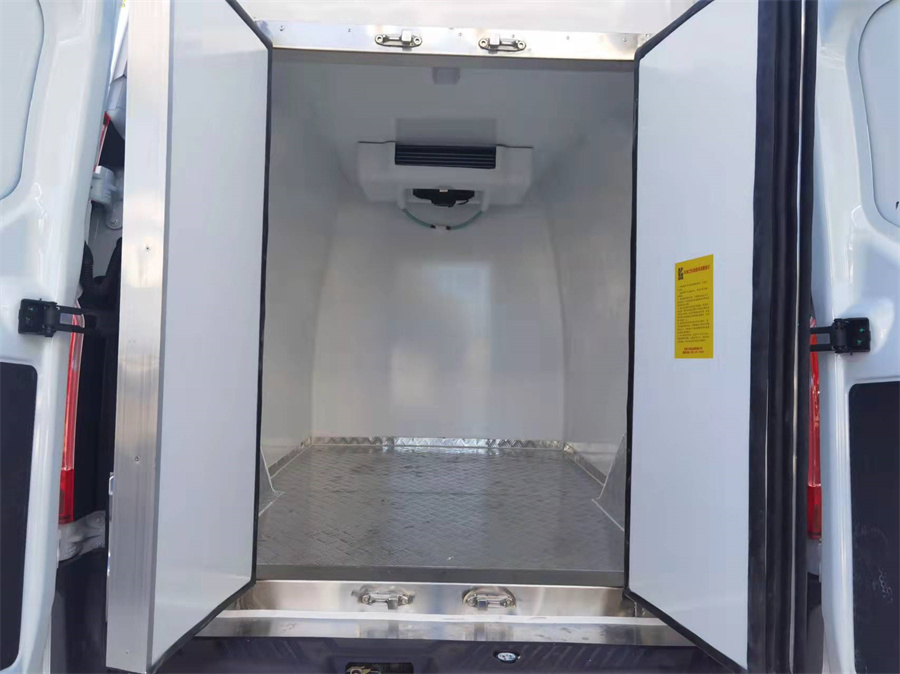

(1) Manufacturing Process: The van body is manufactured using a vacuum and hydraulic吸附 integrated molding production line, with sandwich composite bonding, achieving national A-grade thermal insulation standards.

(2) Panel Material: The inner and outer wall panels are made of domestic fiberglass (non-reflective, good thermal insulation, strong hardness, and anti-oxidation); the middle insulation layer is XPS extruded polystyrene board. The floor is made of aluminum patterned plate, and the door edge strips are equipped with labyrinth-style rubber sealing strips.

(3) Van Parts: Stainless steel door locks and hinges, stainless steel door frames and hinges, energy-saving LED lighting inside the van.

Refrigeration Unit - Kelly Refrigeration, -5°C and -15°C options available

【Optional Components for Vaccine Refrigerated Vehicles】

Five-sided ventilation grooves, temperature and humidity recorder, dual temperature unit.
