High Pressure Flanged Socket Welding Flange Product Overview:

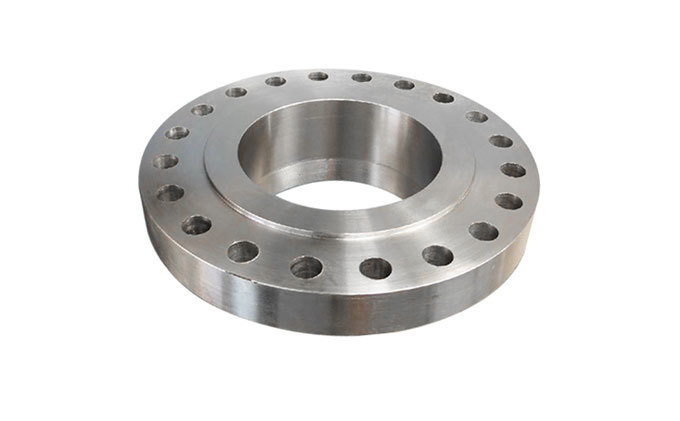

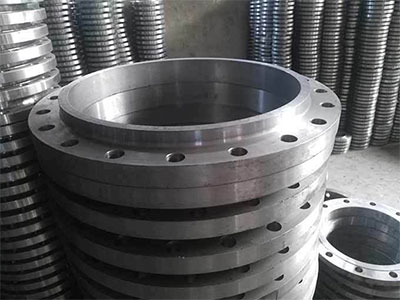

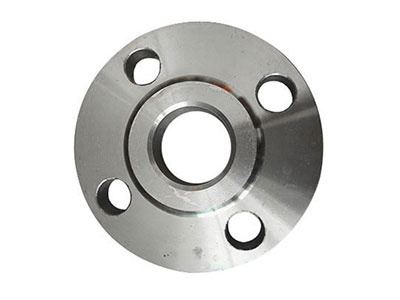

High Pressure Flanged Socket Welding Flange

Specification: 1/2" ~ 24", DN15 ~ DN600

Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB

Socket Weld Flanges belong to the Socket Weld Flange series, abbreviated as SW flanges.

Application of High-Pressure Flanged Socket Welding Fittings:

Necked flat welding flanges are a widely used and versatile component in engineering design. They are an indispensable part of piping design and valve fittings, as well as essential components in equipment and equipment parts (such as manholes, sight glasses, liquid level gauges, etc.). Additionally, necked flat welding flanges are frequently utilized in various fields such as industrial furnaces, thermal engineering, water supply and drainage, heating, ventilation, and automatic control.

Material of the Flange:

Carbon steel, alloy steel, stainless steel;

High-pressure Flanged Socket Welding Flange Standard:

GB series (***Standard), JB series (Mechanical Department), HG series (Chemical Industry Department), ASME B16.5 (US Standard), BS4504 (UK Standard), DIN (German Standard), JIS (Japanese Standard).

International Pipe Flange Standard System

There are primarily two international pipe flange standards systems: the European pipe flange system represented by Germany's DIN (including the former Soviet Union) and the American pipe flange system represented by ANSI.

In addition, there are Japanese JIS pipe flanges, but they are generally used only for utility purposes in petrochemical plants and have a relatively minor international impact.
