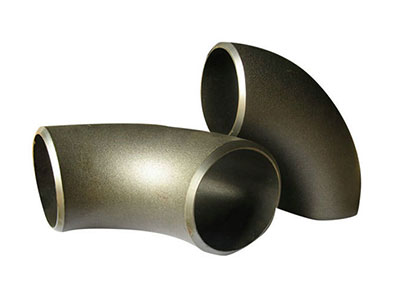

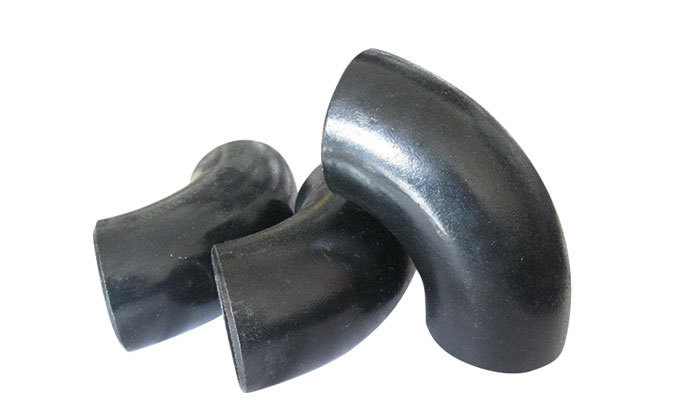

Welded Elbow Introduction

Welded elbow alias: Pressed elbow, Seamless elbow, Steel elbow, Forged elbow, Weld neck elbow, etc., different regions have different names, all belonging to a type of elbow series.

Welding elbows are metal pipe fittings used to change the direction of pipeline on pipes.

Application: Connect two pipes, allowing them to change direction to a 45-degree, 180-degree, 90-degree angle, or other angle turn.

Manufacturing Standards: National Standard, American Standard, Japanese Standard, German Standard, Russian Standard

Variety Classification

Welded elbow curvature radii: They can be divided into long-radius elbows and short-radius elbows. Long-radius elbows refer to those with a curvature radius equal to 1.5 times the pipe outer diameter, i.e., R=1.5D; short-radius elbows refer to those with a curvature radius equal to the pipe outer diameter, i.e., R=1.0D; (D is the elbow diameter, R is the curvature radius; D can also be expressed in multiples;)

Welded elbows are categorized by angle: the most commonly used are 45-degree, 90-degree, and 180-degree elbows. Additionally, other non-standard angle elbows, such as 60-degree, are included based on engineering requirements.

Welded elbows are categorized by material: carbon steel elbows, stainless steel elbows, alloy steel elbows, etc.

Welded elbows are categorized by pressure ratings: there are approximately seventeen types, and those that align with American pipe standards include: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS, with STD and XS being the most commonly used.

Production Process

Welded elbows can be roughly categorized into: hot-pressed, stamped, and medium plate welded shapes.

The recommended elbow forming process boasts aesthetic appearance, even wall thickness, and continuous operation, making it suitable for mass production. Consequently, it has become the primary forming method for carbon steel and alloy steel elbows, and is also applied in the forming of certain specifications of stainless steel elbows.

Press brake elbows were an earlier technique used for mass production of seamless elbows, but have been replaced by hot extrusion or other forming processes for commonly used elbow specifications. However, in certain specifications with low production volumes, excessively thick or thin walls, they are still utilized.

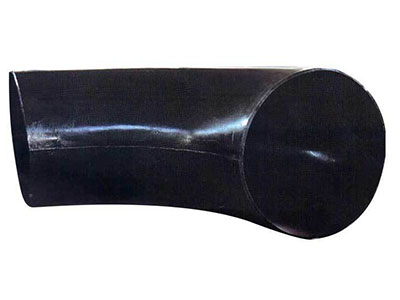

A half-section of the elbow profile is formed using a plate bending press, followed by welding the two halves together; this process is generally used for the production of large-diameter socket weld elbows with DN700 or more.

Application Fields

Due to the excellent comprehensive properties of welding elbows, they are widely used in basic engineering fields such as chemicals, construction, water supply and drainage, oil, heavy and light industries, refrigeration, sanitation, plumbing, fire protection, electricity, aerospace, shipbuilding, and more.

Procurement Recommendations

1: Recommend purchasing from a reputable elbow manufacturer with a certain production scale.

2: manufacturers of elbows must provide material test reports and other relevant documents for elbows.

3: Elbows must have the corresponding specification model stamp and identification.
