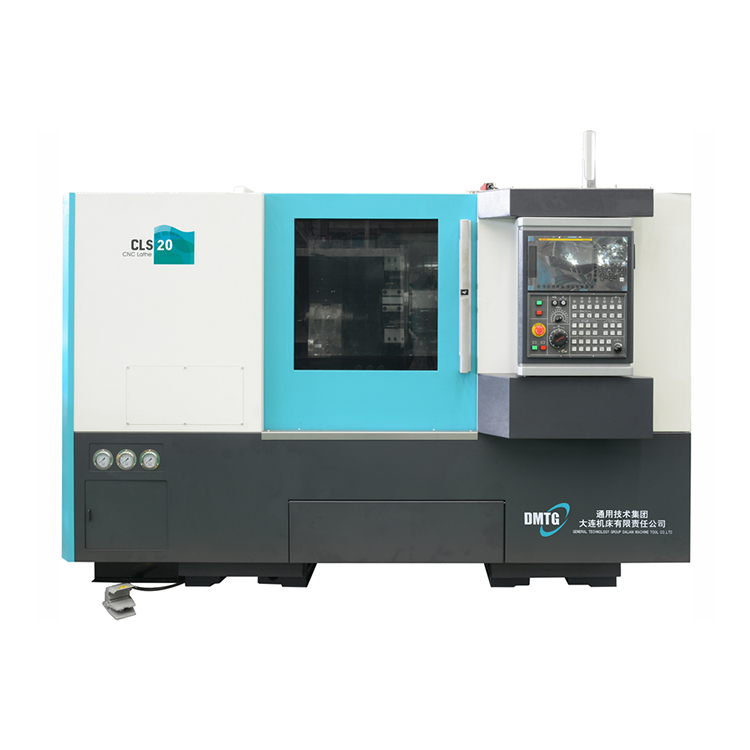

Product Introduction

Fanuc Oi-TF, GSK systems, equipped with USB ports and a 10.4" color LCD monitor

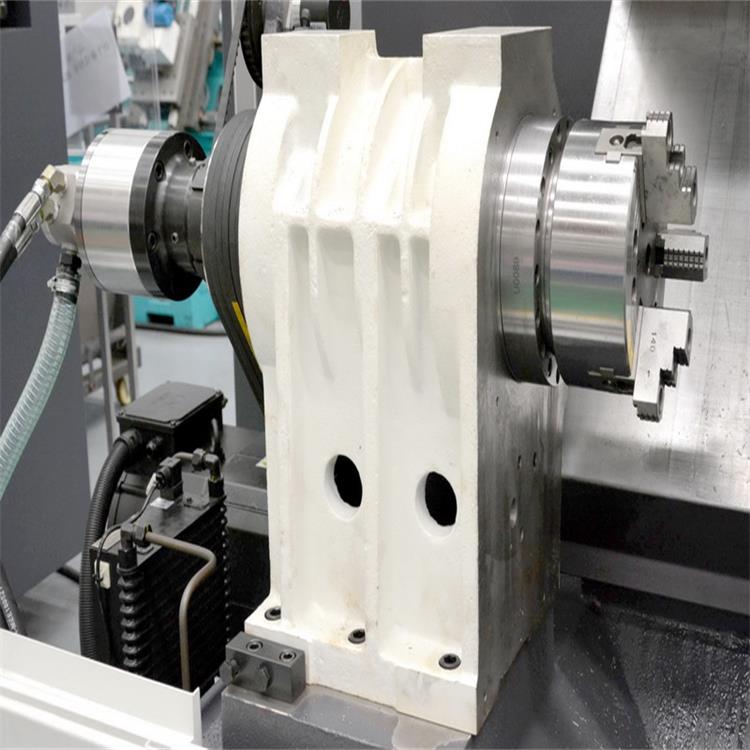

High-tensile cast iron bed frame

Parallel V-belt drive

Linear guide rail width, X - 35 mm / 1.378", Z - 35 mm / 1.378"

Servo motor directly coupled to lead screw, X - φ28 mm / φ1.102", Z - φ36 mm / φ1.417"

Faster rapid traverse speed, X - 20 m/min / 787 ipm, Z - 24 m/min / 945 ipm

☆  Machining high and low guide rail beds to avoid secondary positioning and clamping, making the processing process simpler and more precise and stable.

Backrow dust, side dust removal
