I. Application Fields

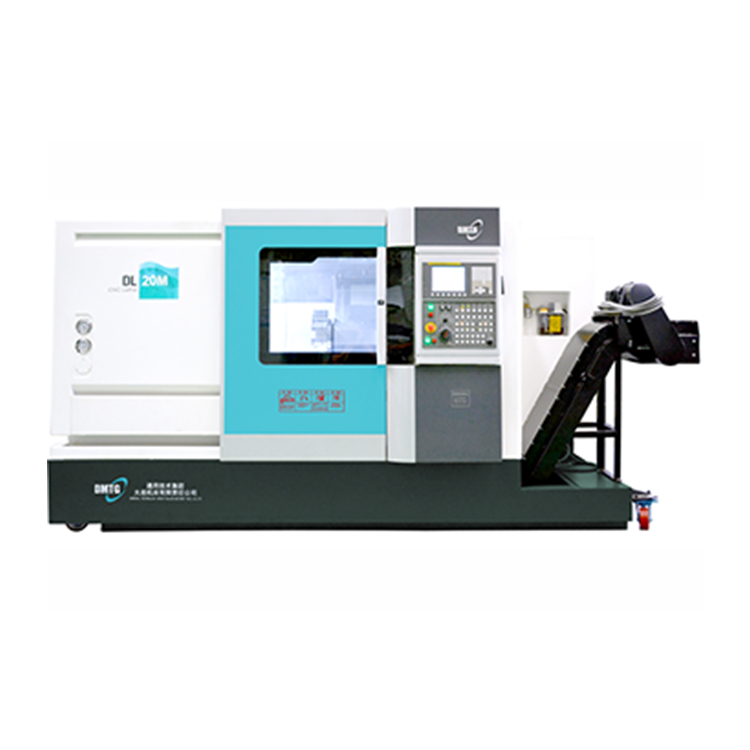

DL-M Series Inclined Bed TypeCNC latheBroadly applicable to the machining of shaft and plate components in industries such as automotive, mold, bearing, petroleum, and coal machinery manufacturing, where a single fixture allows for automatic completion of multi-process operations including turning, boring, drilling, reaming, tapping, and threading.

Section II: Machine Tool Features

1、High-performance spindle with NSK precision high-speed spindle bearing sets at both ends, applied with appropriate preload, combined with span support and box-type spindle housing, enabling the spindle to possess high rigidity and high-speed operation capabilities.

2、High-rigidity hydraulic turret with significant axial tensile force internally, ensuring the cutting disk has high torsional rigidity and repeat positioning accuracy.

3. High-Precision Drive System。Machine tools are equipped with precision ball screws and linear roller guides.High transmission efficiency and good precision retention ensure rapid and stable movement of the machine tool's tool holder, with high positioning accuracy.

Section 3: Key Technical Indicators

1. Bed frame, bed saddle,Ball screws, supports, and other precision-related components are meticulously optimized for structure and machining accuracy. Additional assembly control items are implemented, significantly enhancing the overall precision and reliability of the machine, as well as improving the repeated positioning accuracy.30%, with some performance indicators reaching the precision level of precision machine tools.

2. Machine tools provide continuous and effective guide rail and ball screw lubrication, automatic chip removal, and forced cooling.Ensure continuous, uninterrupted operation of machine tools with a high spindle speed4500 rpm, higherQuick movement speed24 m/min, shorter adjacent stationsChange blade time only0.45 seconds, the combination of various indicators and reliable operation can increase the machining efficiency of machine tools by over 10%.

3. Machine tools are fully enclosed with protective guards.Avoid leakage of iron filings and coolant, mechanismA variety of extreme protection features, combined with system self-diagnostic prompts and warnings, ensure continuous operation without downtime for machine tools, particularly suitable for24Hourly production line.
