I. Application Fields

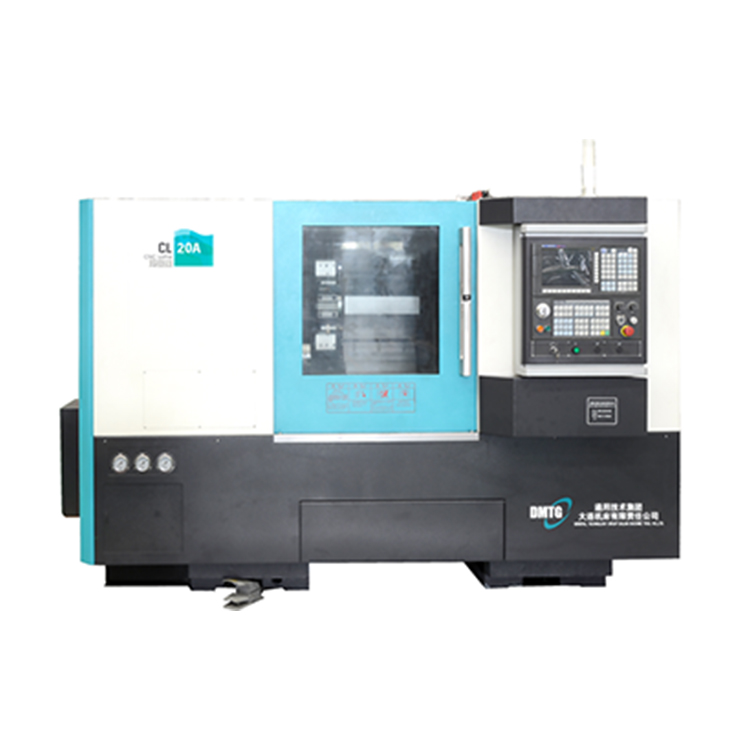

The CL series inclined bed CNC lathe is suitable for the machining of shaft and disk parts for industries such as automotive, mold, electronics, and light industry. The parts can be automatically completed for multiple processes such as turning, boring, drilling, reaming, and threading in a single clamping.
Section II: Machine Tool Features and Key Technical Indicators
1. High-performance spindle. Equipped with NSK precision high-speed spindle bearing sets at both ends, and properly pre-tensioned, it is paired with span support and a box-type spindle housing, providing the spindle with high rigidity and high-speed operation capability.
2. High rigiditySex hydraulic knife tower, with greater axial tension, ensuring the cutting disk has higher torsional rigidity and repeated positioning accuracy.
3. High-precision drive system. The machine tools are equipped with precision ball screws and linear roller guides, offering high transmission efficiency and good precision retention. This ensures rapid and stable movement of the machine tool's tool holder, along with high positioning accuracy.
4. Carefully optimized the structure and machining accuracy of components such as the bed body, saddle, lead screw, and support, significantly enhancing the overall precision and reliability of the entire machine.
5. Machine tools provide continuous and effective guide rail and ball screw lubrication, automatic chip removal, and forced cooling, ensuring uninterrupted long-term operation. The spindle achieves a high speed of 5,000 r/min, with a rapid movement speed of 20 m/min, and a neighboring station tool change time of only 0.5 seconds. The ideal combination of various indicators and reliable operation can increase the machine tool processing efficiency by more than 10%.
6. The machine tools are fully enclosed for protection, completely preventing the leakage of iron chips and coolant. Various limit protections are coordinated with the system's self-diagnosis alerts and warnings, ensuring continuous operation without downtime. Particularly suitable for 24/7 production lines.
