One,Application Fields

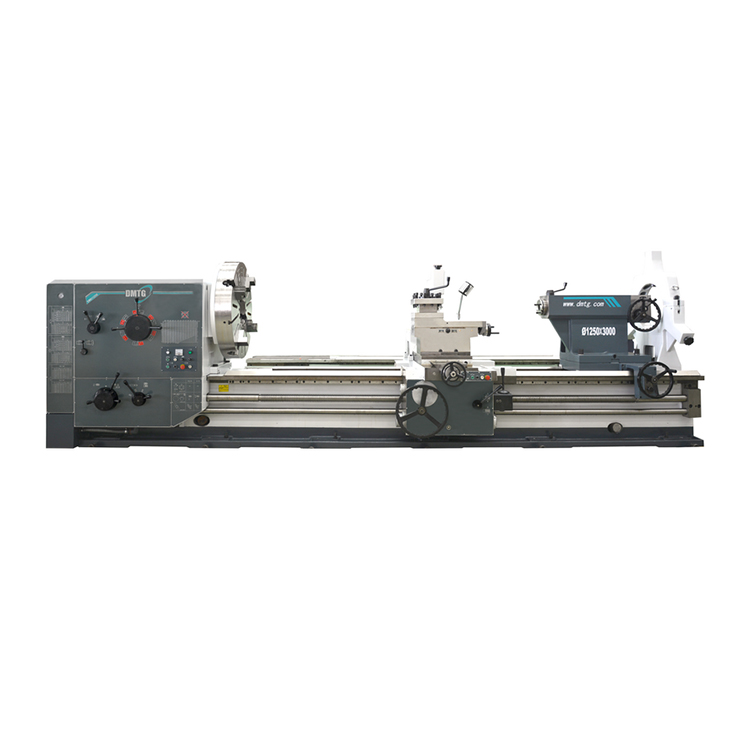

The CW-M series large lathe has a mature structure with high power, strong rigidity, and a wide spindle speed range. It is suitable for heavy-duty or high-speed cutting. It can process both internal and external cylindrical surfaces, conical surfaces, end faces, grooves, chamfers, drilling, and threading on various shaft and disk components. It can also process common metric threads, British threads, module threads (can process common taper threads when equipped with a taper gauge), and special threads require consultation. The small tool post can machine short tapered bodies, and the compound movement of longitudinal feed and small tool post feed can machine long tapered bodies, demonstrating its superiority in processing large and complex parts.

Section II: Machine Tool Features

1、Powerful Performance: Standard main motor with a power of 22kW, available for special order in 30kW.

2. Full Bed Frame, Full Headboard Cabinet: High-quality design and manufacturing technology, providing equipment with high rigidity and high precision retention.

3. The bed has been heat treated for时效，and the guideways are made with high-frequency quenching: extending the service life of the machine tool.

4. Precision ground bed rail: Entire casting, machining, and grinding ensure high precision over the full length of the rail.

Section 3: Key Technical Indicators

1、The headboard cabinet is equipped with a forced lubrication system.

2. The headboard box gears are precision-machined with high-quality equipment.

3. Thoughtfully designed, manufactured, and assembled
