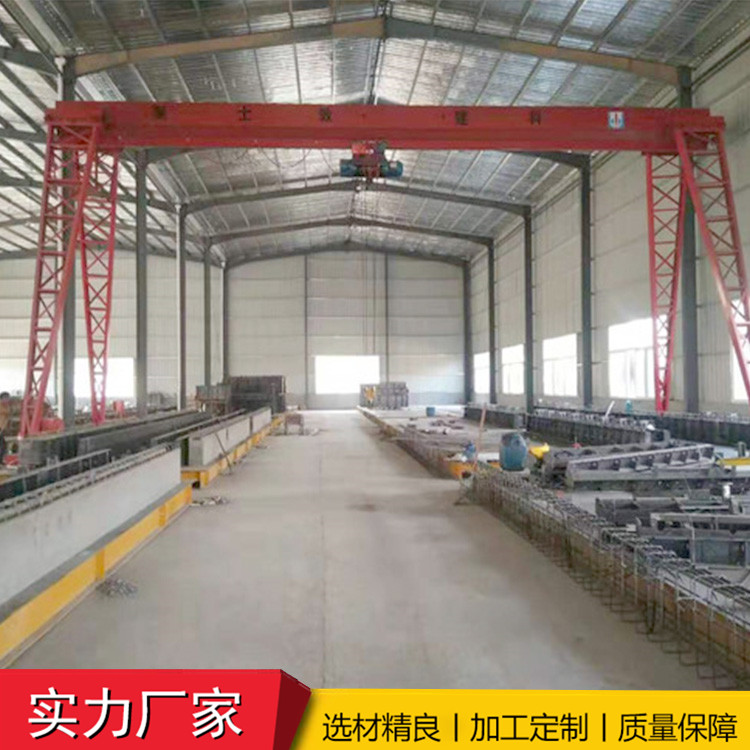

The gantry crane is a variant of the bridge crane. At ports, it is mainly used for loading and unloading cargo, materials, and bulk goods in outdoor yards and quarries.
Operation. Its metal structure resembles a door frame, supporting two legs under the main beam, which can directly move on the ground track. Main
I-beam ends availableWith an outward extending suspensionArmBeams. The gantry crane features high site utilization, large working range, wide adaptability, and strong versatility.
Features, at the port yardWidely utilized.
Single Girder Overhead Crane

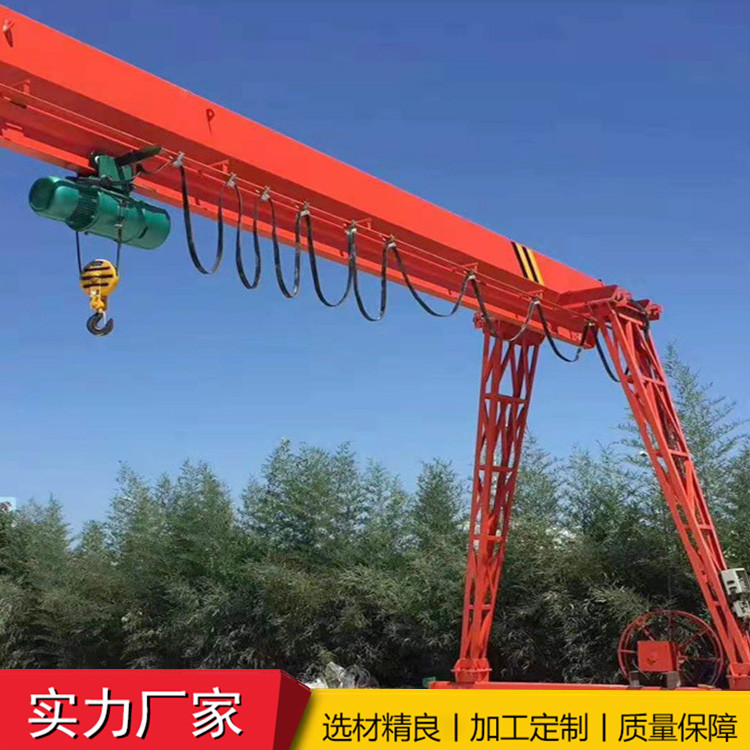

The single girder cantilever crane features a simple structure, easy manufacturing and installation, and a small self-weight, with the main girder mostly in a skewed box girder structure.With
Double girder doorCompared to the model crane, the overall rigidity is slightly weaker. Therefore, when the lifting capacity Q ≤ 50t and span S ≤ 35m, it is advisable to...Please use this
Form. Single master beam typeHeavy machinery door legs are available in L-shaped and C-shaped forms. The L-shaped design is easy to manufacture and install, and has good load-bearing performance.Quality is smaller, but
Yes, the cargo is hoisted through the legs.The space is relatively smaller. The C-type legs are designed to be sloped or curved for the purpose of...There is considerable lateral space.
Space, to allow the goods to pass smoothly through the legs.
Application Scope:
Widely used for cargo hoisting in various locations such as factories, warehouses, and material yards; prohibited in environments with flammable, explosive, or corrosive media.Used.
GroundedWith two operation modes in the air. Ground operation includes wire handle operation and remote control handle operation; aerial operation...Operation Department
Cockpit operation. Driver's cabin.Open and closed types, which can be divided into left or right side installation according to actual conditions.Door direction
Two sides and ends available, to meet the needs of users forChoose from a variety of options to meet different needs.
