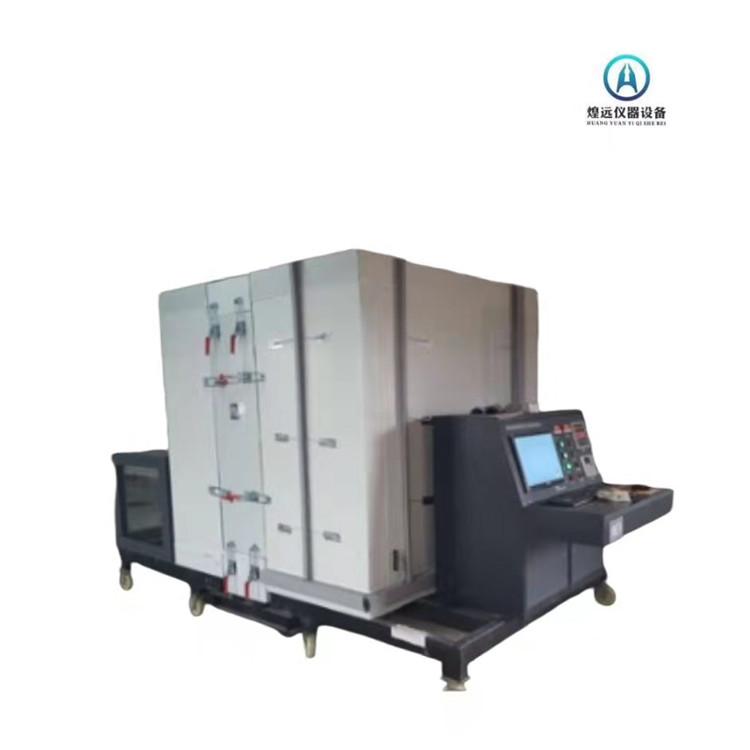

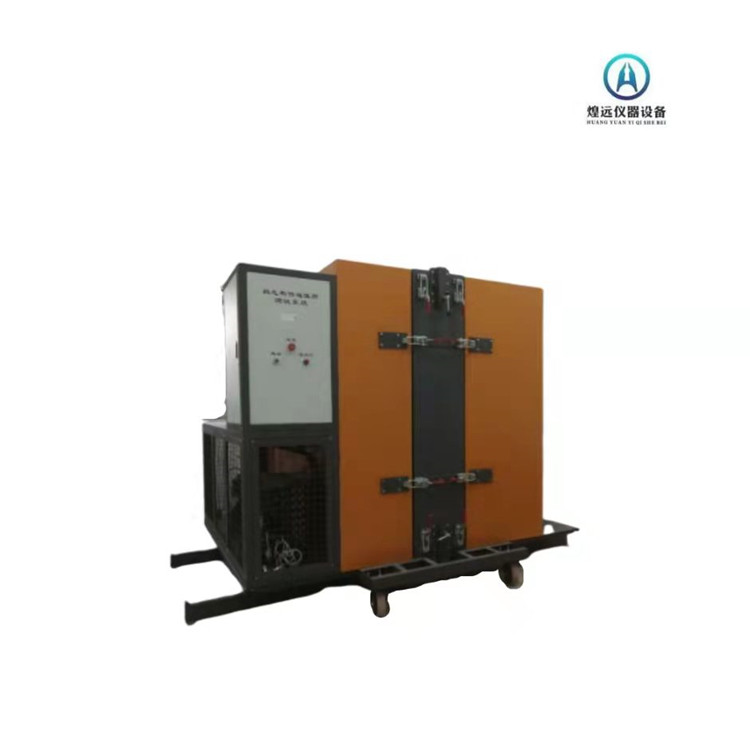

Thermal Insulation Performance Tester for Building Walls

Product Overview

Insulation Performance Testing Device for Walls and Hollow Glass, Insulating glass with thermal performance, integrating the characteristics of heat flow meter method, protective thermal box method, and calibrated thermal box method. Therefore, it can be used according to specific conditions and local circumstances, fully utilizing its advantages.。

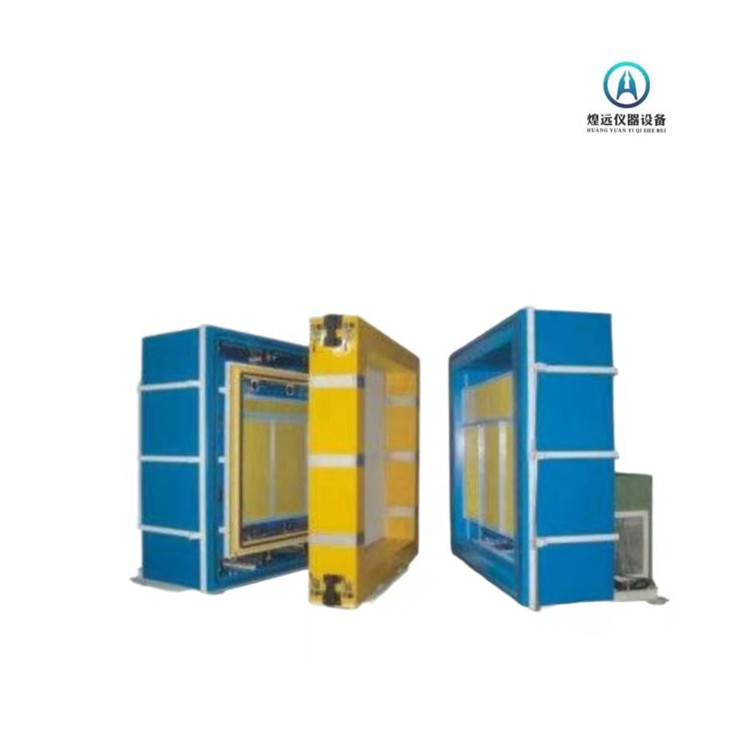

The testing equipment is composed of three parts.: Enclosure, temperature controller, and patrol instrument. The specimen holder is used to place testing materials, with the rear half of the cold box housing the compressor unit and temperature control components. The hot box, in addition to the enclosure, is equipped with one precision temperature controller, one DC power supply for the uniform heating fan, and a patrol instrument for data collection and processing. The patrol instrument utilizes a microcontroller system and a high-stability, low-drift, low-noise instrument amplifier. It also employs platinum resistance as the temperature sensing element for the measuring bed and has developed various software to enhance and expand its accuracy and functionality. It is not only suitable for indoor testing of protective structures but also capable of measuring the thermal performance and heat loss of protective structures on-site during winter or summer.。

Standard Compliance

CB/T13475-2008 "Standard for Calorimetric Determination, Calibration, and Protection of Insulation Stability Heat Transfer Properties"

GB/T 10295-2008 "Method for Measuring Steady-State Thermal Resistance and Related Properties of Insulating Materials Using Heat Flow Meters"

Technical Specifications

Insulated Container

Temperature Control Range for Hot BoxesAmbient temperature: ~40℃; Continuous controllable internal air temperature fluctuation ±0.5℃; Heat transfer coefficient of the cabinet < 5%; Power1200w

2. Refrigerated Container

Refrigerated container temperature control range:-10℃ to ambient temperature (below 25℃). Air temperature fluctuation inside the box ≤ ±1℃, power 800W.

3. Temperature Heat Flow Circulation Detector

Temperature Range:-100.00~+100.00℃

Thermal flow range:0.3~200.00m

Data collection speed200ms per channel

Harvesting Accuracy: Pt1000 basic error less than ±0.1.01

Work environmentTemperature: -20℃ ~ 50℃, Humidity: Less than 90% RH

Output Relay Contact Rating250VAC, 2A (resistive load)

Supply Voltage:380V

Product Features

1Utilizing platinum resistance as the temperature-sensing elementHigh precision, excellent stability

2Channel Number Display, Measurement values indicate, alarm status indicator lights for each channel

3Alarm MethodCommon alarm relay output

4Surge and overvoltage protection are provided for all input channels., and can freely disable any unused channels.

5Robust anti-interference designSuppresses rapid pulse group interference and other electromagnetic interference generated by relays, contactors, and other equipment on-site, with interference resistance reaching level II.

6Automatic compensation for time drift and temperature drift.

7Each channel independently sets the digital filter time constant.Enhanced display stability, with independent zero and full-scale corrections for each channel, improves system measurement accuracy. The control software is applicable for both calorimeter method detection and calibration box method detection.

8、Reports and original records are usedMicrosoft Word processing is available, allowing users to modify and create their own formats. The software includes the report format from the National Construction Engineering Quality Supervision and Inspection Center for reference.

9、Control software is developed by senior inspectors.Windows 95/98/2000 platform, VB/WC hybrid programming, user-friendly and flexible interface control for the entire detection process

10、Open-endedAccess database management, highly compatible, can interface with any management software for seamless connection

Dimensions

1010 Model

Wall specimen size1' x 1' thickness 0.33m

Insulated BoxDimensions: 1.22×1.4×0.6m

Reefer containerDimensions (W×H×D): 1.22×1.4×0.8m

Sample Box(Width × Height × Thickness): 1.22×1.4×0.33m

15Model 15

Wall specimen dimensions1.5' x 1.5' thickness 0.4m

Insulated Container(Length × Width × Thickness): 2.14×2.14×1m

Refrigerated Container(Width x Height x Thickness): 2.14 x 2.14 x 1m

Sample box(Width × Height × Thickness): 2.14×2.14×0.4m
