Insulator Porcelain Bottle flaw detector

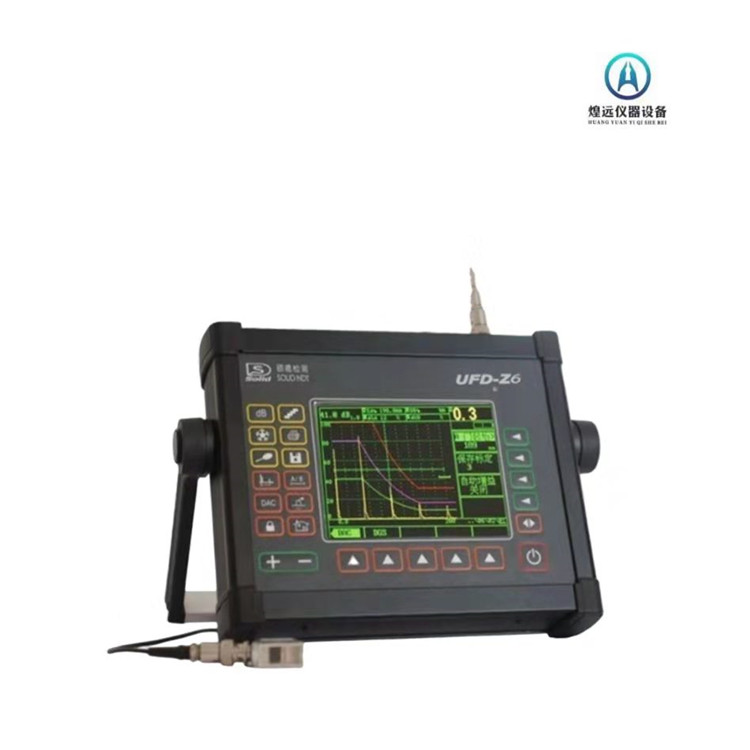

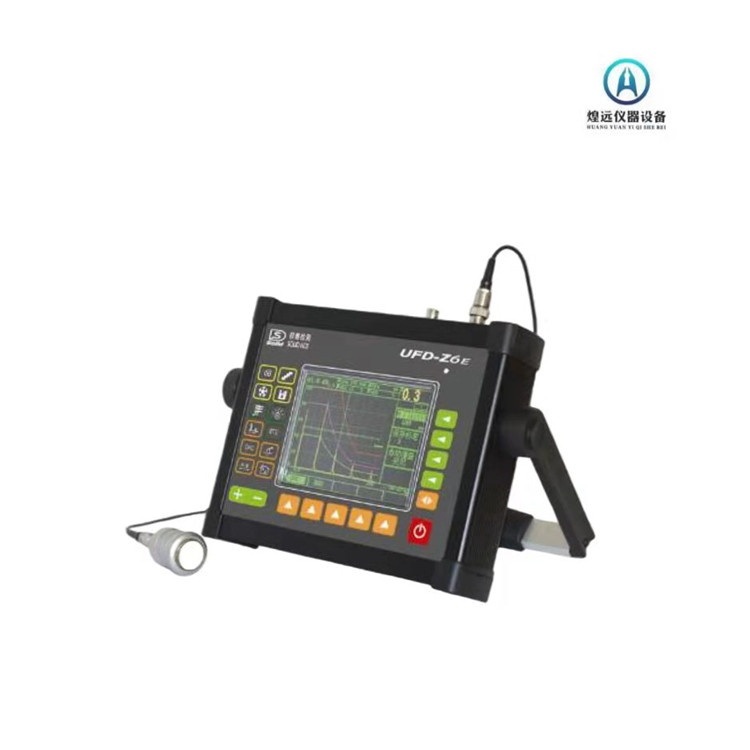

Z Series Z6E：Let the senses soar freely
Waveform Technology IntegratedZSeriesHigh-endUltrasonic flaw detectors combine performance, speed, professionalism, and portability, precisely meeting various stringent requirements. Outperforming mainstream models, honed through experience, and daring to challenge the limits. With sensitive feedback, superior performance, digital essence with analog experience, and a comfortable feeling free from interference, it acts as your sixth sense, moving with your thoughts.ZThe series of ultrasonic flaw detectors is more like a portable detection workstation in disguise, sure to elevate you to a higher level of inspection.
Performance
l Pole insulators, porcelain sleeve switches, ready to start with a single press.
l Support insulators, porcelain sleeve wave probe, longitudinal wave low angle, transverse wave probe
l Insulator flaw detection test block
l Rapidly switch process channels
l Built-in standard power processing specifications
Performance
l Square Wave Excitation: Suitable for materials with difficulty in penetration
n Domestic industry's adjustable square wave excitation technology, suitable for a variety of materials that are difficult to penetrate. High-performance adjustable options“Square Wave/Pulse Generator,” for matching with probes. Particularly effective for composite materials with significant sound wave attenuation, castings, and thick plates, offering high penetration power and signal-to-noise ratio; while also providing high resolution for inspecting thin workpieces and composite materials.。
l Narrowband filter set(Z)
n On top of conventional broadband filters, multiple commonly used narrowband filters have been added. Signals passed through a narrowband filter matched to the probe can achieve a higher signal-to-noise ratio, thereby effectively suppressing noise (reaching a noise-free effect).
l Domestically leading10 High Precision AD Sampling Channels
l Extended Battery Life10-20 hours, free from charging worries
l High-definition true color, visible in bright light, screen brightness5-level adjustable, energy-saving and environmentally friendly
l Industrial-grade wide-temperature hardware operation, military-grade components, failure rate
l Magnesium alloy housing, sturdy and durable, effectively preventing electromagnetic interference
Features
l USB flash drive storage, plug and play
n USB interface supports insertion of flash drives; no driver required, hot swapping supported; plug and play. Enables storage of flaw detection reports and screen capture printing.。

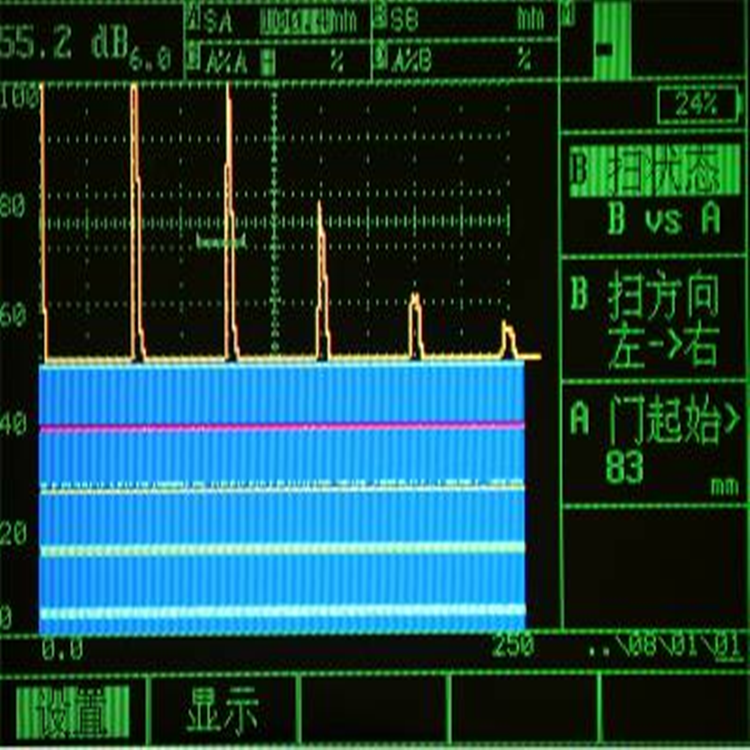

l 2D BarcodingB-Scan - Intuitive display of defect location
n High-end flaw detector with two-dimensional color codingB-Scan feature. The image-based observation of defect patterns in the B-Scan feature offers excellent contrast effects, facilitating defect analysis and judgment. Through grayscale/color palettes, it can automatically display the severity of defect hazards and allows for real-time comparison between A-Scan waveforms and B-Scan images.
l Ultra-high capacity data storage:3200 data sets
l Ultrasound Inspection and High-Precision Thickness Measurement Integrated
l 5 intelligent DAC curves, compliant with JIS and API standards
l PracticalDGS curve: three reference types - large flat bottom, flat bottom hole, and through-hole
Operation
l Quick Access to Common Features
l Menu layout is rational
Automatic Calibration: Sound Velocity, Transducer Delay, Angle/K value
Performance specificationsZ8 |
Scope of Inspection 1.0~15000mm |
Detection Resolution 0.01mm(<100mm) 1mm(>100mm) |
Sound Velocity 500~20000m/s 20 Fixed Speeds |
Display Latency -20~3400 US units Resolution: 0.1 US unit |
Probe Delay 0~99us Resolution: 0.01us |
Automatic Calibration Automatically calibrate sound velocity and probe delay through two known reference echoes |
Linear Error Level≤0.1% vertical ≤3% |
Dynamic Range ≥36dB |
Sensitivity margin ≥64dB, 200mm Diameter, Flat Bottom Hole |
Dimensions 240×180×50mm |
Weight 9Kg (including battery pack) |
Work Environment Temperature:-20℃~70℃ Humidity:5%～90% |
Transmitting pulse |
Incentive Pulse Square WaveNegative尖Pulse |
Pulse Width 50-2000ns |
Pulse Amplitude 50-500V |
Repeat Frequency Pulse Emission Repetition FrequencyPRF Continuous Adjustment |
Damping Match 50/150/400Ω |
Receiving System |
Test Mode Pulse EchoTransmitter/Receiver / Transmission |
Measurement Method PeakEdge |
Amplification 0~110dB Step length0/0.1/0.2/0.5/1/2/6/12/Custom |
Detection method Please provide the Chinese content to be translated into American English.Negative Half Wave/RF/Full Wave |
Frequency Bandwidth 0.3~1 / 0.5~4 / 2~15 MHz broadband filter 1/2.5/5/10/15 MHz Narrowband Filters |
Display |
LCD 5.7" Industrial Grade Wide Temperature High-Brightness TFT Color LCD |
Backlight Brightness 5-level adjustable |
Display Refresh Rate Not less than60Hz |
GUI Theme Sleek/Classic/Grayscale/High Light/Low Light - 5 themes available, users can freely customize the theme by setting text, A-scan waveform, background, and coordinate colors. |
Gate/Measurement/Alarm |
Gate A/B two independent gates |
Measurement indicates 5 measurement display zones, with 1 being the main display zone. Selectable measurement content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB |
Alarm Gate independent logic alarm, thickness measurement threshold alarm |
Storage |
Channel Parameters 20 sets |
A Sweep Waveform3200 sets |
Thickness value 320,000 linear units |
Waveform Video 10 minutes |
Waveform Reference 4 reference waveforms |
Input/Output |
Probe Connection LEMO or BNC |
Communication RS232 |
Region |
Clock Real-time display of date and time |
Language Chinese and English |
Unit mm/inch |
Power Supply |
Battery High-energy lithium-ion batteries with overcharge and over-discharge protection |
Power Monitoring Battery energy monitoring based on Coulometric measurement, percentageBattery Life Display Remaining Charge |
Office Hours Continuous operationOver 20 hours |
Power Adapter Input100~240V/50~60Hz Output9VDC/4A |
Premium |
Dynamic Echo Digital essence, analog performance |
USB flash drive storage Directly store screen capture/Waveform/Thickness Three Data Reports |
Gate Width Extension Observe and analyze the details within the concerned gate area |
2D CodeB Scan ThicknessContour scanning; grayscale/color palette settings |
Echo Coding CoordinatesTwo waveform coding methods for ease of span calculation |
Curved Freezing All/Peak Memory/Comparison/Envelope/Time Delay Envelope |
Feature Indication Mark Wavefront path length measurement and amplitude measurement location indicator |
CSC Surface Correction Adjustments can be made to the measured values based on the probe angle, workpiece thickness, and curvature diameter. |
Lock in Each menu can be independently locked to prevent system parameter adjustments; data sets can also be locked to avoid accidental deletion. |
Screen Saver Standby/Text/Shutdown |
Molar curve |
DAC Curve Recordable30 calibration points; automatic gain; calibration in any order; two correction methods: calibration/editing; takes material attenuation and surface compensation into account; 5 adjustable gain evaluation curves comply with JIS and API standards |
DGS Curve Suitable for large flat bottom, flat hole, and through-hole types, Taking into account reference attenuation, material attenuation, and surface compensation factors, defect evaluation methods: equivalent size/equivalent gain/percentage |
