Drop Impact Tester

Model:QC-2

Product Description:

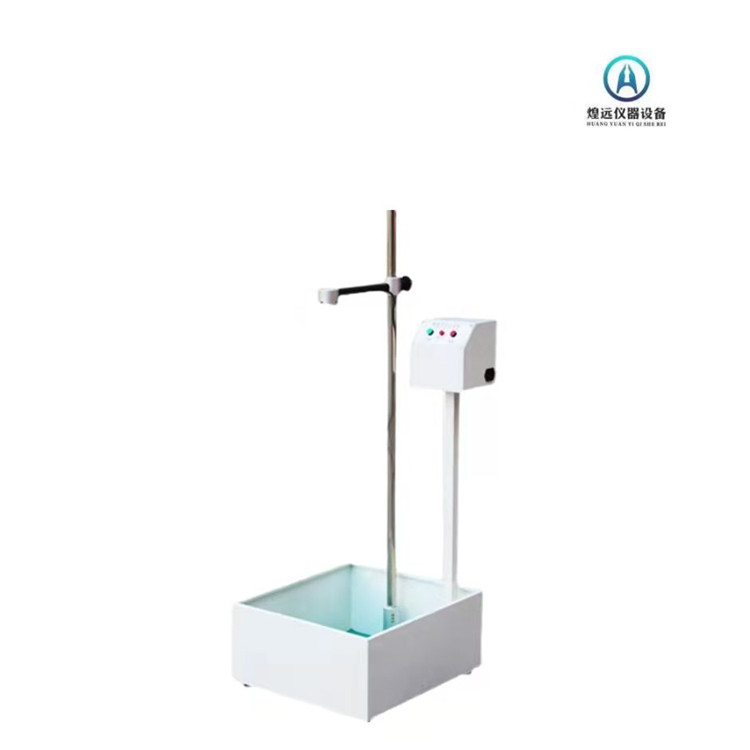

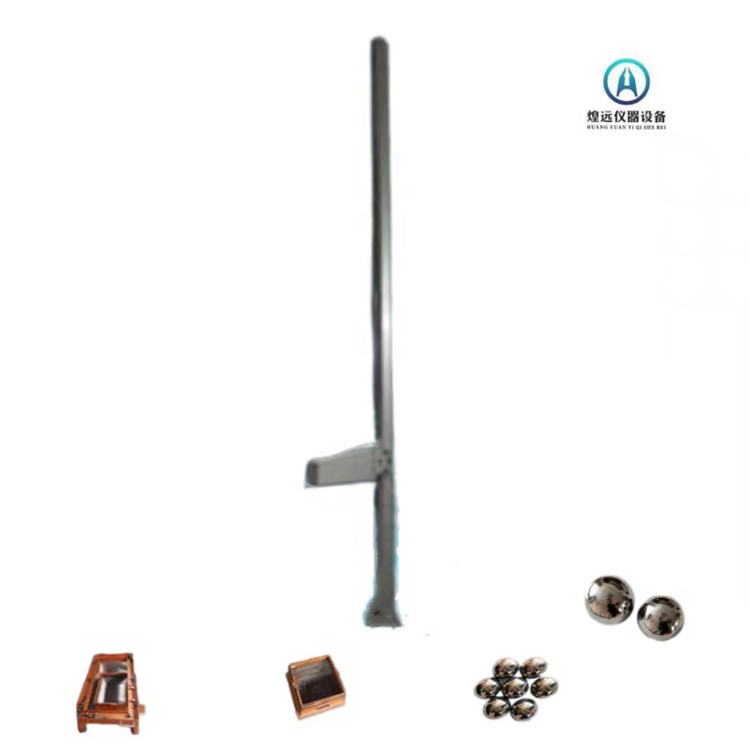

Model QC-2 Ball Drop Impact Tester, equipped with an electromagnetic release, can discharge standard 1040g and 2060g steel balls, as well as a 10Kg head dummy. It is also suitable for releasing American standard 200g steel dart and 4.99Kg shotgun shell impact bodies, capable of discharging 28.5g steel balls for impact testing on 1.1-0.7mm LCD display chemical toughened glass. This equipment meets the requirements of standards GB9656-2003, GB15763.2-2005, and GB15763.3-2009.

Technical Specifications:

1. Height Measurement Resolution≤  0.5

2. Height Control Accuracy ± 2cm

3. Drop Ball Time≤  1S

4. Rising and falling speed: 20 cm/s

5. Electromagnetic Release Interval≤ 10S

6. Electromagnetic Attraction Strength≥ 15kg Release28.5g steel ball, simulating a 10kg human head release

7. Testable Height: 2M ~ 12M(Height adjustable)

8. Rated Power≤  50W

9. Working Voltage: 220V/AC
