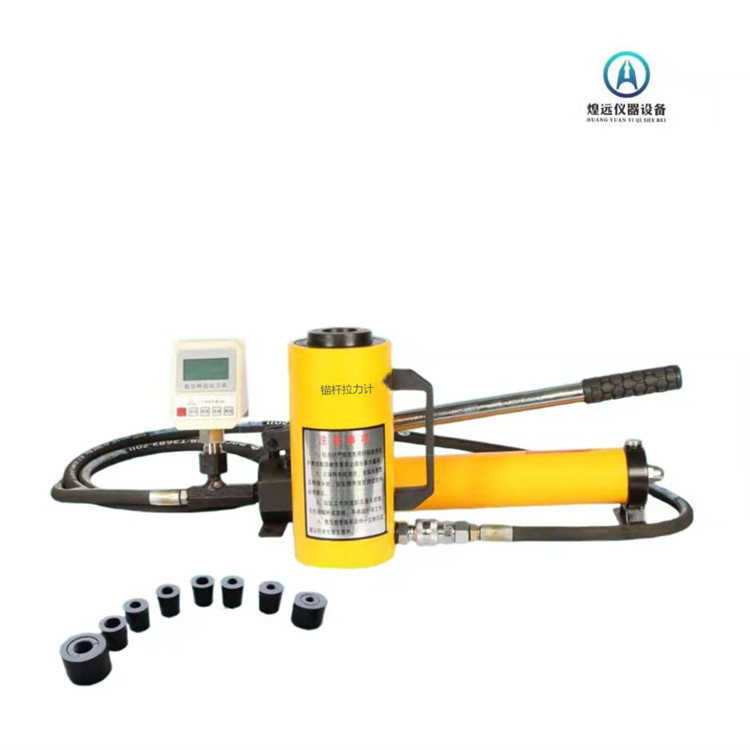

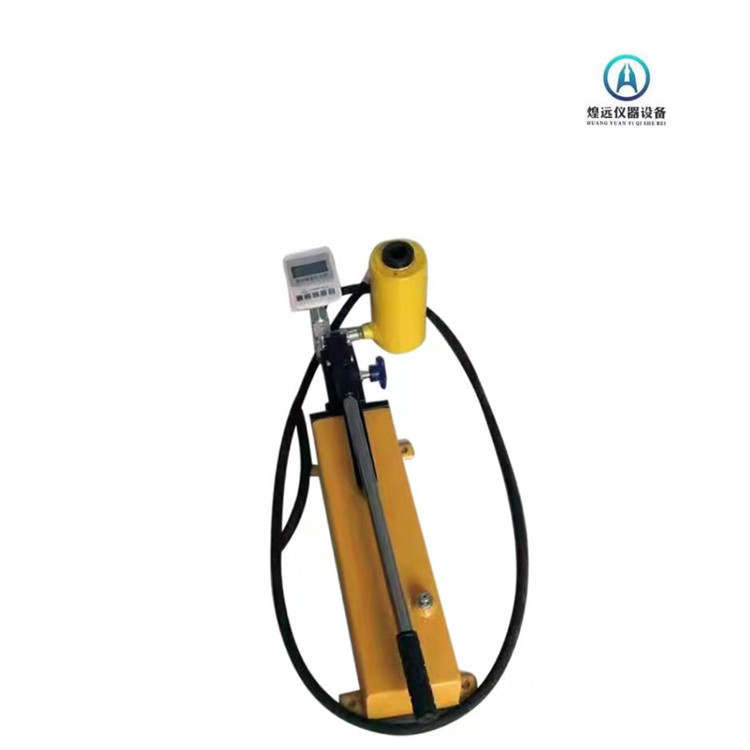

Anchor Rod Pull Test Instrument
Application Fields
Anchor拔力测试仪, also known as Anchor Tension Gauge, is a device used for testing the pull-out resistance of various anchors, anchor ropes, rebars, bonded rebars, expansion bolts, chemical anchors, railway spikes, and other anchoring components. It can also be used for on-site pull-out resistance testing (试验) of glass curtain walls. It is an essential testing instrument for quality control units, reinforcement companies, supervision agencies, universities, coal mines, and more.
Meets Standards:
GB 50367-2006 "Code for Design of Reinforcement for Concrete Structures"
GB 50330-2013 "Technical Code for Engineering of Building Slopes"
JGJ120-2012 "Code for Construction Foundation Pit Support Technology"
CECS 22: 2005 "Technical Code for Rock and Soil Anchors (Cables)"
GB50007-2011 "Code for Design of Foundations of Buildings"
CECS22:99 "Code for Design and Construction of Soil Anchor Rods"
JGJ 145-2013 "Code for Post-Anchor Technology of Concrete Structures"
Product Features:
1. The digital gauge features a Swiss-imported sensor with a measurement accuracy of 1% F.S.
2. 200 data records, search functionality, and LCD lighting feature
3. Peak Hold, Auto Shutdown with No Operation
4. Numeric 10-segment line correction for enhanced instrument precision.
5. Power supply: 3 AA batteries, ultra-low power consumption design, continuous working time over 200 hours
6. Features imported sealing rings, durable and long-lasting, with automatic spring return, and a simple structure.
7. Corrosion-resistant electrostatic powder coating on hydraulic cylinder surface, nickel-plated pistons, and sliding sleeves
8. Hollow section equipped with dust-proof sleeve, overload protection, quick oil leakage prevention connector
Technical Specifications
Product Model | ZP-10T | ZP-20T | ZP-30T | ZP-50T | ZP-60T | ZP-100T |
Measurement Range | 0-100KN | 0-200KN | 0-300KN | 0-500KN | 0-600KN | 0-1000KN |
Bushing center hole | 27mm | 34mm | 45mm | 60mm | 75mm | 86/95mm |
Cylinder stroke | 60mm | 80mm | 80mm | 120mm | 120mm | 150mm |
Cylinder weight | 5.5kg | 13kg | 15kg | 25kg | 35kg | 50/75kg |
Hydraulic Cylinder Reset | Automatic Reset | Manual Reset | ||||
Manual Pump Oil Storage Capacity | 0.7L | 4L | ||||
Manual Pump Operating Pressure | 63Mpa | |||||
Instrument Resolution | 0.01KN | 0.1KN | ||||
Test Error | 1%F.S | |||||
Power Supply Method | Three-sectionAA battery | |||||
Screen size | 55mmX21mm | |||||
Data Storage | 500 units | |||||
Anchor Rod Pulling Tester Common Accessories Specifications (These are optional accessories) | ||||||
Product Model | ZP-10T | ZP-20T | ZP-30T | ZP-50T | ZP-60T | ZP-100T |
Common Anchor Fittings | Φ6-18 | Φ6-25 | Φ6-32 | Φ20-40 | Φ20-40 | Φ25-50 |
Trolley handle | M18 | M24 | M30 | M40 | M40 | M40 |
Common Connectors | M6-18 | M6-24 | M6-27 | M6-39 | M6-39 | M27-39 |
Product Accessories
Product Configuration
Name | Quantity | Name | Quantity |
Manual Pump | 1 unit | Steel box | 1 piece |
Hydraulic Cylinder | 1 unit | Data pouch | 1 piece |
Digital Display Gauge | 1 piece | Anchoring equipment | As required, additional accessories available. |
3-meter hose | 1 piece | Trolleys and conversion connectors | As required |
