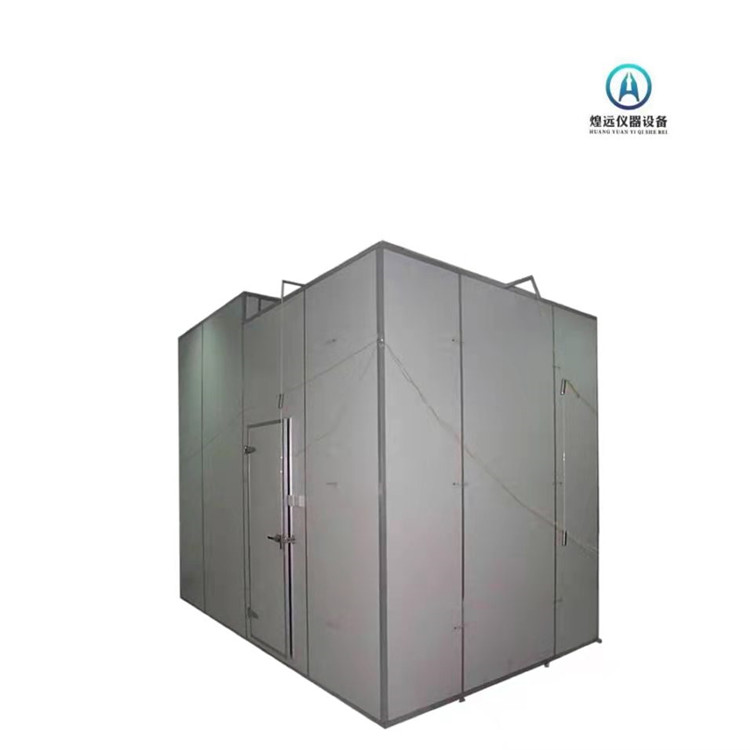

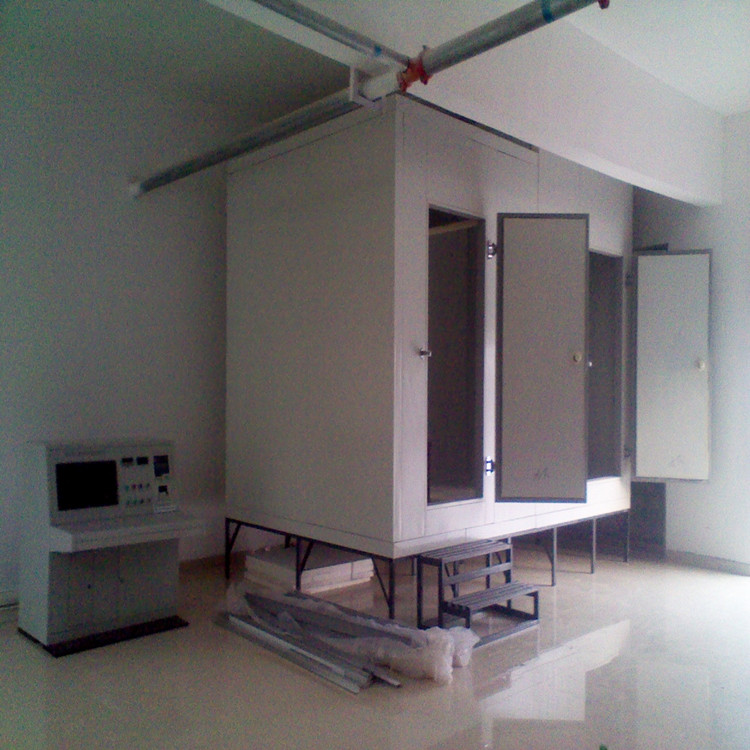

ConstructionPlease provide the Chinese content you would like translated into American English.Insulation Performance Testing Equipment for Doors and Windows
Product Overview
Used for measuring the thermal transmittance and condensation resistance factor of building exterior windows, doors, curtain walls, and other enclosing structures. Utilizes the internationally standardized calibration method of the heat box.Automated measurement and control systems, paired with reasonable laboratory renovation, fully meet the current national standards.。
Standard of Execution
GB/T8484-2020"Classification and Testing Methods for Thermal Insulation Performance of External Windows in Buildings"
Technical Specifications
1. Equipment dimensions: 4010×2630×3330mm (as per 1818)TypeFor example)
2. The environmental space should ensure there is a 0.5-meter distance around the equipment.
3. Power Supply: 380V AC, 12KW Power
4. Temperature Accuracy: ≤0.02℃
5. Temperature Control Accuracy: Hot Chamber: <0.1℃; Cold Chamber: ≤0.2℃
6. Humidity Control System: Relative Humidity in Hot Room ≤ 20%
7. Heating Power of Hot Room: 1200 watts
8. Cold room temperature can reach: -25℃
9. Testing Method: Full-Automatic Inspection Method
Model and Specifications
Testable piece size / Equipment cabinet sizeRoom Dimensions (Length × Width × Height)
Model
1800×1800mm
1818Type
5010×3630x4530mm
4010×2630×3330mm
Note1. Room dimensions are as listed; control room is not included. 2. If room height is insufficient, consider excavation for a basement.
Product Features
1. Utilizing a one-time molded polyurethane board, each prefabricated panel is equipped with high-strength locks around the edges, ensuring good sealing and easy assembly. Special design
Corner boardsT-shaped plates can be conveniently assembledCombineLaboratory with various sizes and temperature requirements。
2. All temperature sensors utilize internationally recognized high-precision Pt1000 platinum resistance, ensuring accuracy at any cost; equipped with a high-power refrigeration unit for rapid cooling, enhancing testing efficiency; glass sealant、Sealant、Refrigerated Storage Rack Shelves。
3. Advanced data collection and processing system, displaying all test curves authentically, long-term storage, and capable of automatically analyzing test results.
Heat TreatmentProvide timely and accurate test reports.
4. The humidity control system utilizes state-of-the-art dehumidifiers, ensuring precision that fully meets the requirements of the new standards.
5. Reports and original records are processed using Microsoft Word. Users can modify and create their own formats. The software includes report formats from the National Construction Engineering Quality Supervision and Inspection Center for reference.
6. The control and measurement software is developed by senior inspectors using the Windows 95/98/2000 platform with a mix of VB/WC programming, featuring a user-friendly and flexible interface for controlling the entire testing process.
7. Open Access database management with strong compatibility, capable of seamless integration with any management software interface.
