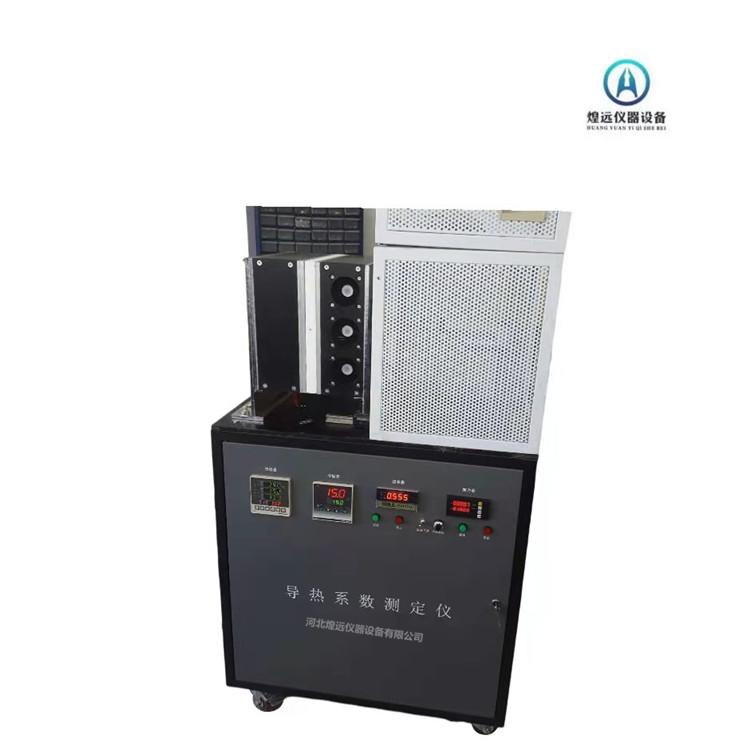

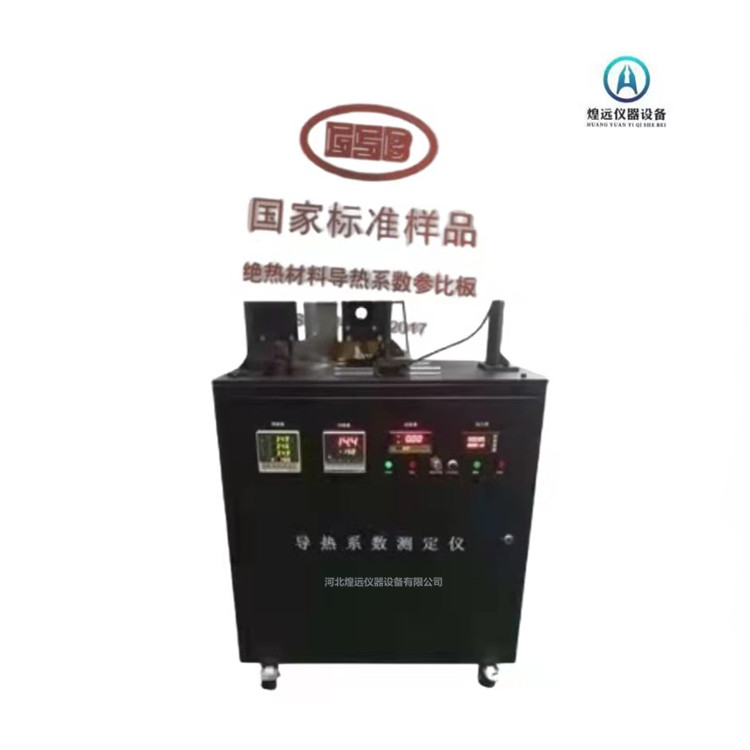

Flat Plate Thermal Conductivity Meter
Model:300Type 600Type
Product Description:
Flat plate thermal conductivity meter in accordance with national standard(GB/T 10294-2008) Standard，Thermal conductivity measuring instrument for new types of construction materials. The instrument features a large test specimen area and the capability to test a wide variety of materials.(Individual material or composite material), high temperature control accuracy, stable and reliable performance, intelligent automatic control, computer-generated test reports, easy operation, and many other advantages. Complies with the standard GB/T10294-2008 "Thermal Insulation Materials - Steady-State Thermal Resistance and Related Determination - Protective Plate Method" test scope. Individual materials: foam plastics (flat thermal insulation materials, boards), polyurethane, phenolic, urea-formaldehyde, mineral wool (glass wool, rock wool, mineral wool), concrete walls; composite materials: glass reinforced composite board CRC, cement polystyrene board, sandwich concrete, glass fiber reinforced plastic panel composite materials, paper honeycomb board.
Technical Specifications:
1. 300TypeTestable piece dimensions300L x 300W x 45.5H mm
2. 600ModelTestable piece dimensions600mm x 600mm x 75mm
3. Temperature Control Accuracy: Hot Plate (+/- 0.1℃), Cold Plate (+/- 0.1℃)
4. Hot Plate Set Temperature: 60℃
5. Air-cooled equipment cold plate temperature: -10℃
6. Water-Cooled Equipment Cold Plate Temperature: -30℃
7. Instrument Measurement Accuracy: 3%
8. Thermal Conductivity Measurement Range: 0.010-1.600 W/(k.m)
9. Control Cabinet Dimensions 400260X800 (Unit: m)
10. Cooling Methods - Air-cooled, Water-cooled
11. Power Supply AC220V
12 Power 3KW
Product Features:
1. Surface temperature is accurate and even. The thermal conductivity tester is designed with a large, solid copper plate as the temperature control measuring plate, which ensures better consistency in the surface temperature of the tested piece.
2. Advanced control system. Equipped with imported intelligent temperature control instruments with automatic tracking capabilities, offering rapid and stable temperature control with ±0.1℃ accuracy.
3. User-friendly interface. Hot plate temperature, cold plate temperature, and heat flow power can all be directly read from the digital gauge.

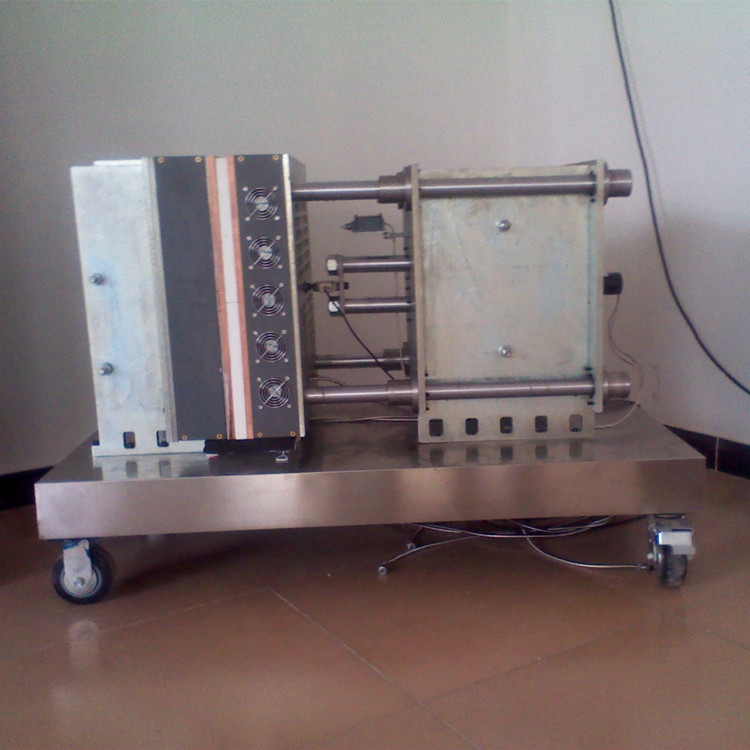

4. Simple operation. Electrically powered sliding cold plate with adjustable clamping force; after the specimen is properly installed, close the top, bottom, and side insulation doors.
5. Intelligent data processing. Highly automated computer data communication and report processing system. The flat heat conduction meter is equipped with a computer communication interface, allowing temperature control of the heat and cold plates to be set from the computer, with real-time display of the actual temperature curve.
6. Includes printed test reports. Software features built-in test records, data processing, and report formatting, automatically generating reports.
7. Stable and Reliable. Features a secure and reliable automatic protection function with overcurrent protection.
