Quotation for bag filter of 15 ton biomass boiler in Dalian

The quotation for the bag filter of a 15 ton biomass boiler in Dalian is warmly welcomed by users due to its low cost and low nitrogen oxide emissions in daily operation. However, biomass boilers produce a large amount of ash during combustion, and user enterprises need to configure suitable dust removal equipment to meet environmental emission requirements. As a result, biomass boiler dust collectors have emerged,biomassboilerResearch and development of dust collectorsIt's Shi Hengenvironment protectionAccording to the boiler industry's flue gas treatmentofActual needs,sutraSummarize years of production experienceButdevelopeda kind ofBoiler industry specific dust collector. Please follow our company website for more information http://www.btshhb.com

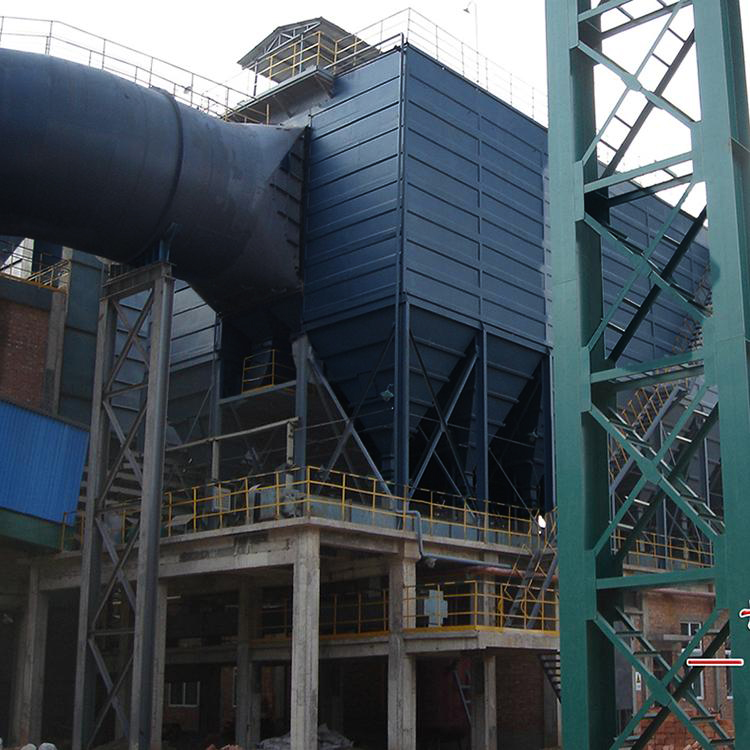

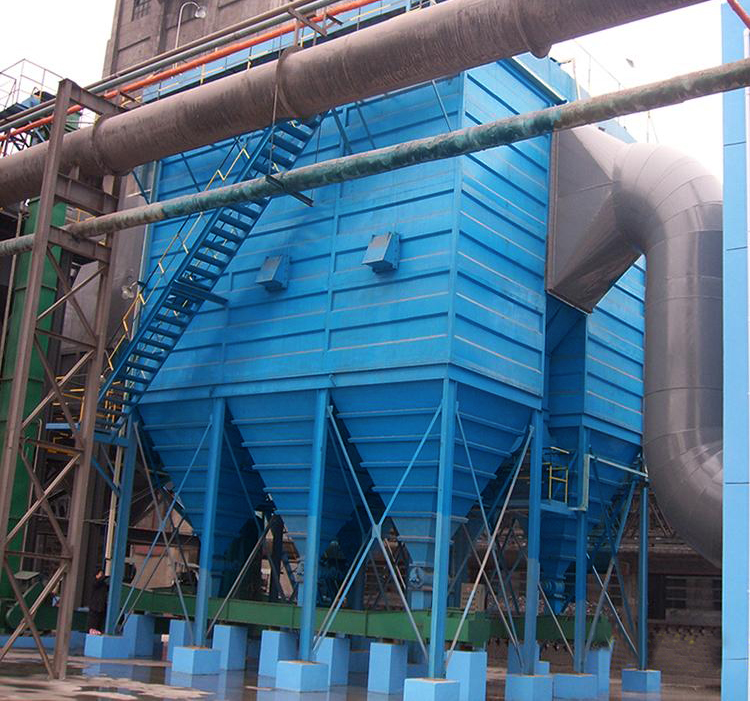

1、 Structure setting of bag filter for 15 ton biomass boiler:

Biomass boiler smoke and dust are fine and prone to carry small, unburned particles and carbides, which can lead to secondary combustion. Install a flame arrester in front of the bag filter(also known as a Mars lander)To prevent sparks from entering the dust collector and damaging the bag,structural frameworkincludingSupporting the dust collector body, ash hopper, and ash conveying equipment, etc，The box includes an upper box, a middle box, and an ash hopper, etc。Filter bag, cage bone, and flower board：The filter bag and cage bone form the dust filtration system of the dust collector；Flower board is used to support filter bag components and separate filter chambers (including dust sections) and clean air chambers, and serves as a maintenance platform for dust collector filter bag components；The filter bag component is installed from the flower board into the intake system, including the intake air guide manifold, guide plate, and intake electric control valve；exhaust system：Including a dust collector purification gas emission system composed of exhaust pipes, etc。Ash unloading system：devicefromThe cleaning air cannon and manual plug-in valve on the ash hopper of the dust collector form the ash unloading system of the dust collector. The lower part can be equipped with ash conveying equipment platforms such as warehouses, railings, ladders, and maintenance platforms for manual (pneumatic) valves。Rainproof canopy on top of dust collector：Used to protect the top device of dust collectors such as electromagnetic pulse valves and the lighting system of dust collectors。

2、 The function and characteristics of bag filter for 15 ton biomass boiler:

1. The 15 ton biomass boiler equipped with a bag filter can effectively filter smoke and dust, achieving an accuracy of up to 0.3 μ m in smoke and dust filtration. The air leakage rate is less than 0.1%, and the filtration efficiency is as high as 99.99%, reducing the emission of dust pollutants.

2. With high temperature resistance, boiler bag dust collectors are more resistant to high temperatures than ordinary dust collectors, with temperatures reaching up to 240 degrees Celsius.

3. Long service life, the boiler bag filter can have a service life of over 5000 hours.
