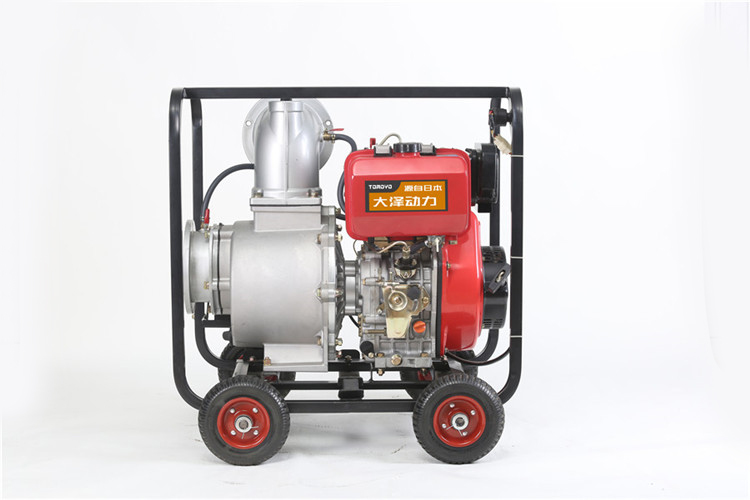

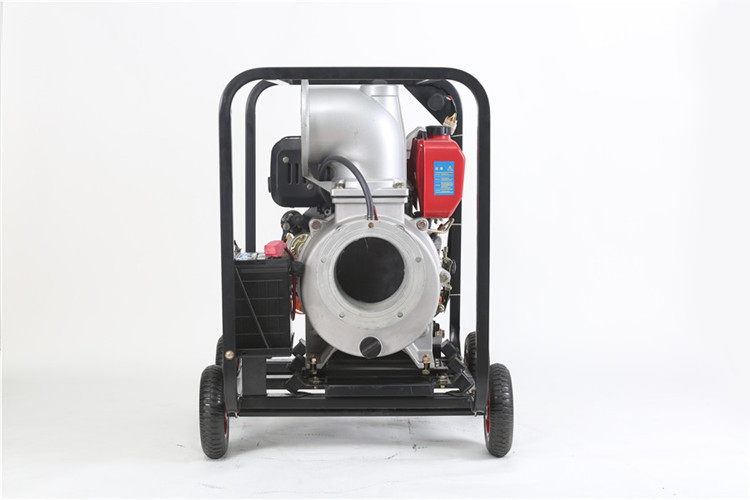

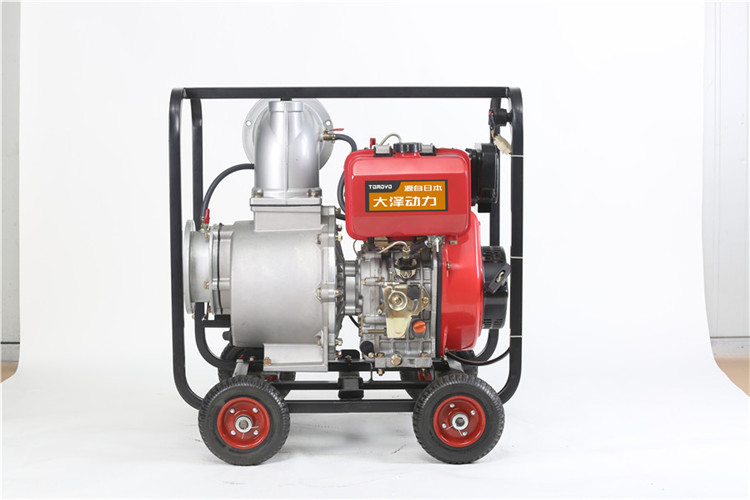

6 Inch electric diesel engine water pump Diesel engine fire pumps are mainly used for boosting water supply in fire protection system pipelines. It can also be applied to industrial and urban water supply and drainage, high-rise building pressurized water supply, long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurized air conditioning refrigeration system water supply and equipment matching, and other occasions. The pump body and pump cover of the diesel engine fire pump are divided from the back of the impeller, which is commonly known as the rear door structure. Its advantage is that it is easy to maintain. During maintenance, the pump body, suction pipeline, discharge pipeline, and motor do not need to be moved. Only the middle connecting piece of the (extended) coupling needs to be removed to exit the rotor components for maintenance. The casing of a diesel engine fire pump constitutes the working chamber of the pump. The impeller, shaft, and rolling bearings are the rotors of the pump. The suspension bearing components support the rotor components of the pump, while the rolling bearings are subjected to radial and axial forces from the pump. In order to balance the axial force of diesel engine fire pumps, most pumps are equipped with sealing rings at the front and rear of the impeller, and balance holes are provided on the rear cover plate of the impeller. Due to the low axial force of some pumps, there are no sealing rings or balance holes on the back of the impeller.

6TO-60EW

Inlet diameter:150MM

Outlet diameter:150MM

Standard traffic   : 150m3/h(Hourly150cubic meters)

; Font size: 15px ">Traffic         : 170m3/h

Head         : 20M

suction         : 8M

Rated speed   : 3000rpm

Fuel consumption       :245g/kw. h

Power model    : ET1V90F (Alevel)

Water pump outlet: buckle form: flange connection, bolt hole diameter

Engine form: single cylinder, four stroke, diesel engine

Rated power    :7KW

Use fuel    :Diesel

Cooling method    :Forced air cooling

Fuel tank capacity    : 20L

Startup method    :Hand/Power start

Run time     :   10-15h

Net      Heavy       : 80kg

Dimensions:  800*630760MM
