Portable High-Energy Igniter TYBQ-12-3.5

Composition: Consists of a portable high-energy igniter TYBQ-12-3.5, ignition cable TYL-1, conductive rod TYG-18, bent tube TYW-1, and ignition gun TYZ-18.

Product Introduction:

Portable High-Energy Igniter TYBQ-12-3.5

Composition: Consists of a portable high-energy igniter TYBQ-12-3.5, ignition cable TYL-1, conductive rod TYG-18, bend tube TYW-1, and a TYZ-18 ignition gun.

Application: The portable high-energy igniter contains a battery pack, requiring no external power for ignition. Simply lift the high-energy igniter to ignite; also, it can be remotely controlled from a distance to ignite from a safe location. Convenient for temporary ignition needs or in remote areas without power, such as furnace flues, vent torches, etc.

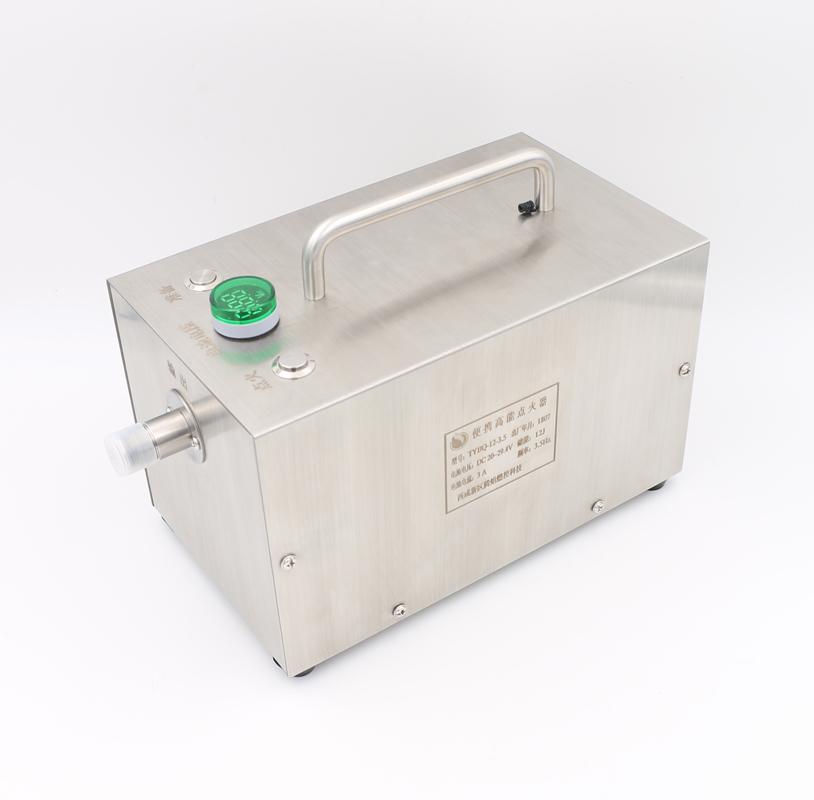

TYBQ-12-4 Portable High-Energy Igniter

Battery Specifications: DC 24V 2.4Ah (18650 Lithium-ion Battery)

2. Energy Storage: 12J (High Energy Storage)

3. Output Parameters: Output Voltage: 2500V Spark Frequency: 4Hz

4. Technical Features: High-frequency step-up, all-solid-state device discharge, high circuit efficiency, long lifespan.

5. Meets Standards: Q/TYQ 01-2021

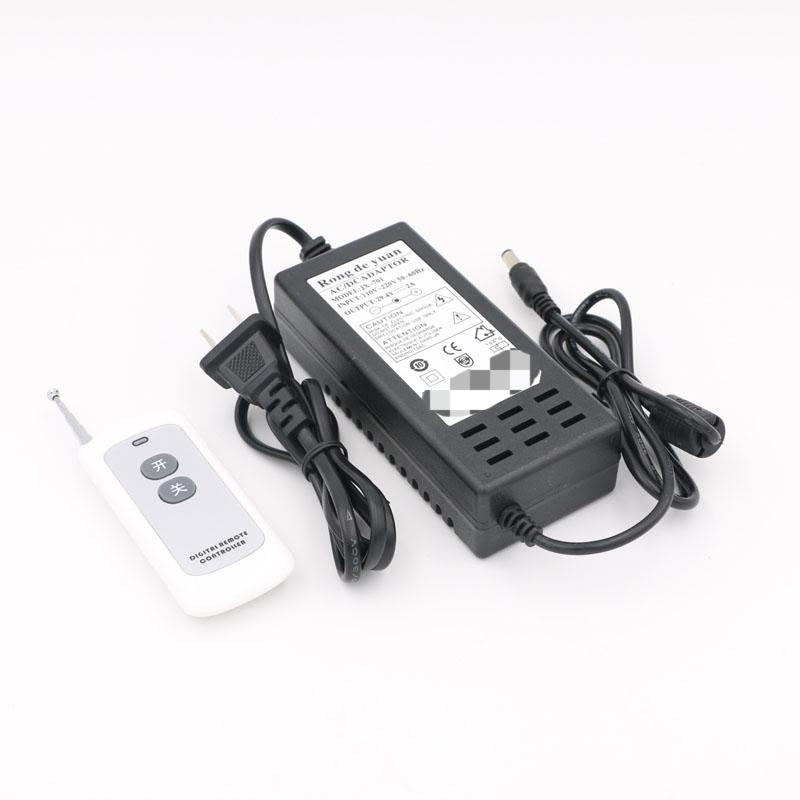

Charger and remote control

Charging Input Parameters: 100V ~ 250V, 50Hz

2. Charging Input Parameters: DC 29.4V, 2A

3. Remote Control Distance: Over 100 meters (unobstructed, interference-free)

Bend Tube TYW-1

Function: Transmits high-voltage pulse electricity under high temperatures, with the transmission direction turning 90°.

Material: 95 High-Alumina Porcelain, Stainless Steel 304

3. Process Structure: Welded stainless steel tube, internally insulated with high-alumina ceramic, with a stainless steel rod as the central core serving as the high-voltage electrode. 4. Temperature resistance up to 1000°C.

5. Voltage resistance: 10kV.

6. Utilizes a quick-connect nut structure, facilitating connection with conductive rods, ignition guns, and semiconductor electrodes.
