I. Technical Specifications
Standard of Execution: SH/T 0066
2. Test Unit: 2-hole
3. Heating Method: Water Bath Heating
4. Temperature Control Range: Room Temperature to 100℃
5. Temperature Control Accuracy: ±0.1℃
6. Gas Source: Air Pump
Power: AC220V, 50Hz
8. Power: 1500W
9. Graduated Cylinder: 500ml
10. Flow: 1000 ± 25 ml/min
11. Environmental Temperature: 10℃ to 30℃
Relative Humidity: ≤85%
II. Key Features
The Engine Coolant Foam Characteristic Analyzer is designed and manufactured based on SH/T0066 <<Determination of Engine Coolant Foam Characteristics>>.
The instrument is controlled by an intelligent digital temperature display controller, ensuring precise temperature control and easy operation.
The instrument features a left-right structure, with the left side being a transparent glass bathtub and the right side for temperature and flow control.
● The instrument can conduct 2 sets of experiments, with stable flow control.
● The instrument boasts an aesthetically pleasing design and user-friendly operation. It can work continuously for extended periods with an extremely low failure rate, and is robust and durable.

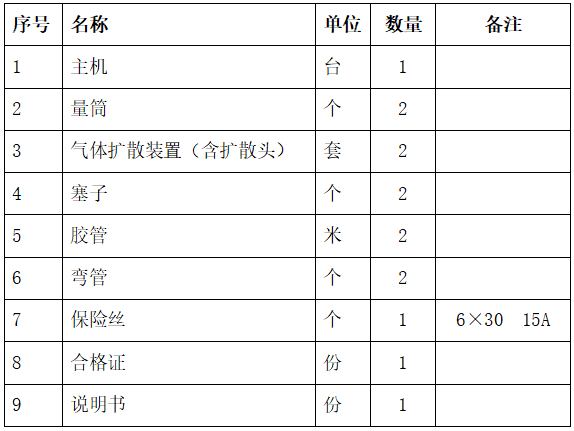

Section 3: Configuration List
