I. Technical Specifications
Standard of Execution: SH/T 0085
2. Test Unit: 6 Hole
3. Heating Method: Metal Bath Heating
4. Temperature Control Range: Room Temperature to 100℃
5. Display Accuracy: ±0.1℃
6. Air Source: Built-in air pump
7. Temperature Control: 6 Independent Temperature Control Ports
Power Supply: AC 220V, 50Hz
9. Power: 1500W
10. Environmental Temperature: 10℃~30℃
11. Relative Humidity: ≤85%
II. Key Features
The Engine Coolant Corrosion Tester is designed and manufactured based on SH/T0085 <<Method for Measuring Engine Coolant Corrosion>>. It is suitable for high-boiling and low-boiling point engine coolants and their concentrates, as well as for measuring the corrosion of engine cooling system rust inhibitors.
● The instrument consists of a metal heating bath, 6 temperature control units, a condensation unit, and a flow control unit.
● Metal heating bath for aluminum heating, fast heating-up speed, replaces traditional water baths, long service life, easy to operate.
● 6 independent temperature controls, allowing real-time observation of the temperature and flow size for each sample group.
● The instrument temperature control utilizes an intelligent digital temperature controller, ensuring precise temperature control.
● The instrument temperature section uses a precise platinum resistance PT100 for temperature measurement, offering high accuracy and precise display.
● The instrument boasts an aesthetically pleasing design and user-friendly operation. It can work continuously for extended periods with an extremely low failure rate, and is robust and durable.

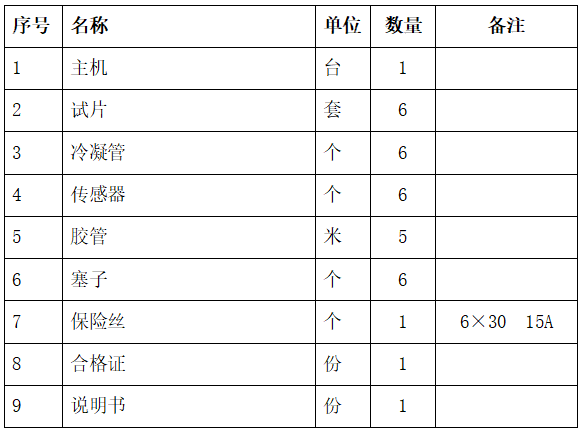

Section 3: Configuration List
