I. Technical Specifications
Standard of Execution:SH/T0175
2. Temperature Control Range:Room temperature to 100℃
Resolution: 0.1℃
4. Temperature Control Accuracy: ±0.2℃
5. Temperature Sensor: PT100
6. Test Tub: Metal Tub
7. Test Holes: Six Hole
Flow Meters: Six Pieces
9. Power Supply: AC 220V ±10% 50Hz
10. Total Power: ≤ 2000W
11. Dimensions: 700×450×1350
12. Instrument Weight: 60 kg
13. Environmental Temperature: 10℃～30℃
14. Relative Humidity: ≤ 85%
II. Performance Features

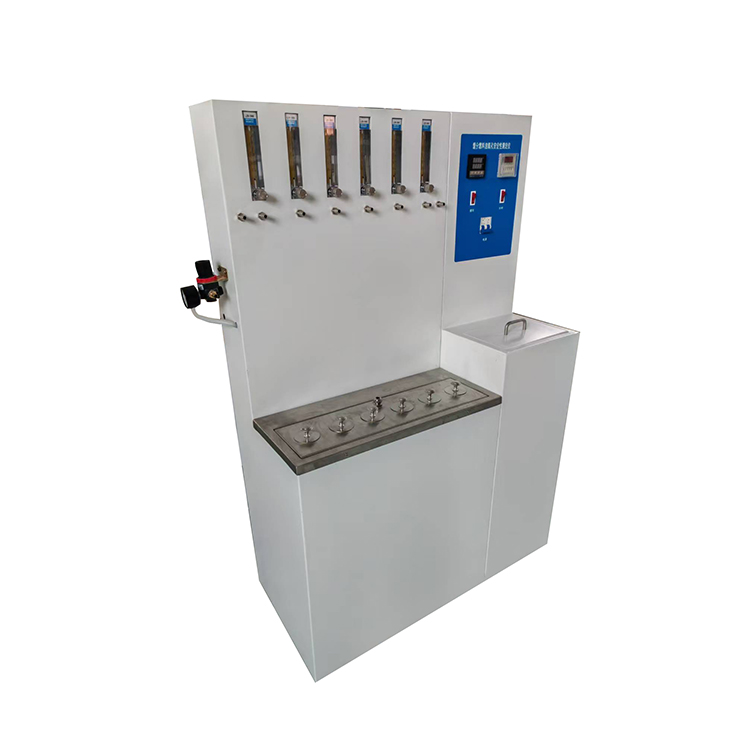

The unit features an integrated structure, with an aesthetically pleasing design and easy operation.
●Digital temperature controller with automatic temperature controlEquipped with a high-precision platinum resistance temperature sensor for temperature detection, providing precise temperature control.
●Equipped with a dark box for light-proof storage before placing the oxidation tubes into the heating bath and for light-proof cooling after removing the oxidation tubes.
●Converts instruments from traditional water baths to metal baths, ensuring non-contamination and eliminating the need for water or other media, providing both safety and energy savings.
● The instrument is equipped with a timer.Used for recording the time of the test.
●Equipped with an internal gas buffer tank and six flowmeters, each indicating the gas flow into one of the six oxidation tubes, enabling simultaneous testing of six samples.

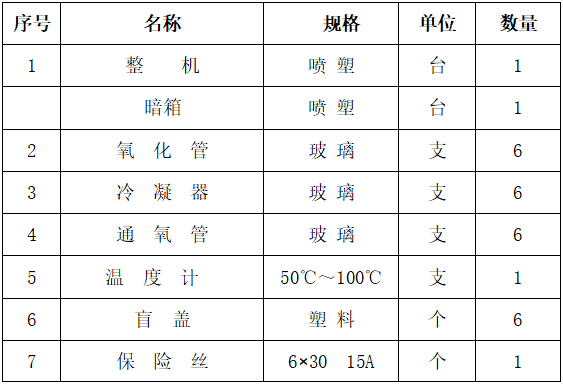

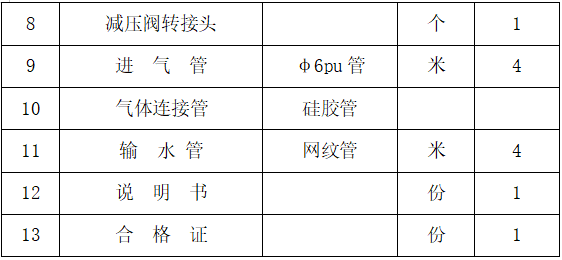

Section 3: Configuration List
