3M Details

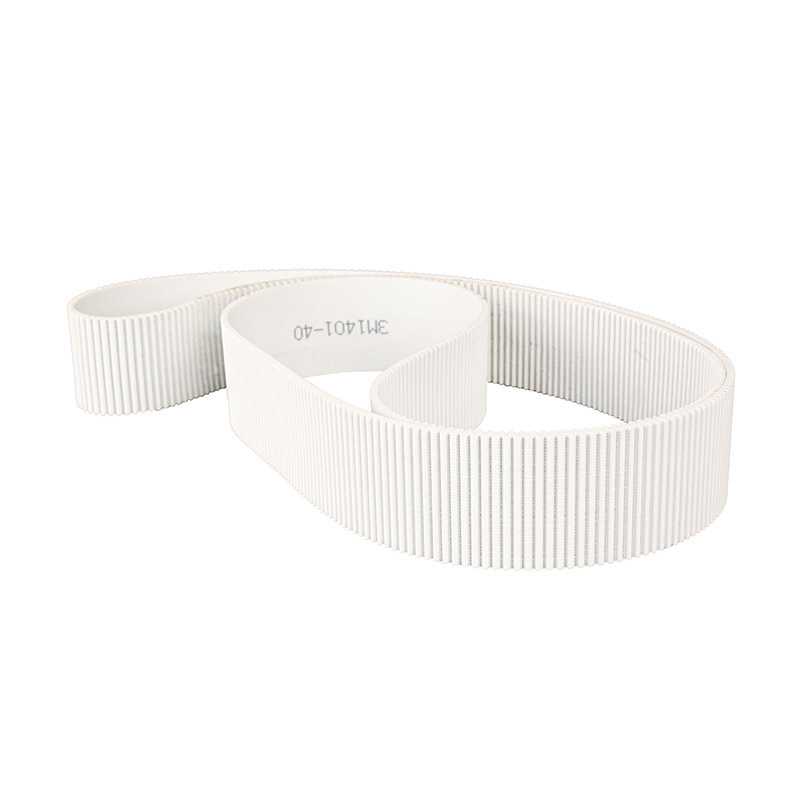

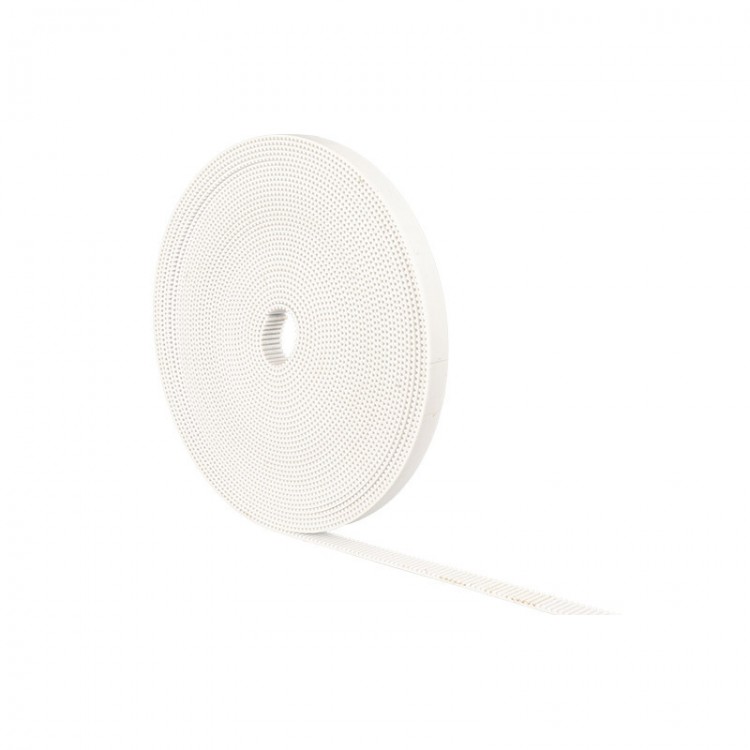

PU synchronous belts are made of thermoplastic polyurethane material, with the frame constructed from钢丝 or aramid yarn, ensuring excellent performance during transmission, accurate and smooth operation, and serving both transmission and conveying functions.
Characteristics of PU Opened Synchronous Belts:
(1) Accurate transmission with no slippage during operation, featuring a constant transmission ratio.
(2) Smooth transmission with shock absorption and vibration reduction capabilities, low noise.
(3) High transmission efficiency up to 0.98, with significant energy-saving effects.
(4) Easy maintenance with no need for lubrication, low maintenance costs.
(5) Wide speed ratio range, typically up to 10, with linear speeds up to 50m/s, offering a broad power transmission spectrum, ranging from a few watts to hundreds of kilowatts.
(6) Suitable for long-distance transmission, center distance up to 10m or more.
Conveyor belts, also known as transmission belts, are the transmission medium in the belt drive system. The belt drive system is a type of transmission system that includes two or more pulleys with a belt wrapped around them, allowing the belt to rotate freely. One or more pulleys provide power to the drive belt and support the material being driven on the drive belt. The power-driven pulley is called the drive pulley, while the others are called idler pulleys.
Conveyor beltConveyor belt, also known as a transportation belt, is a composite rubber, fiber, and metal product, or a plastic and fabric composite, used for carrying and transporting materials in belt conveyors. Conveyor belts are widely used in short-distance, low-volume conveying applications in industries such as cement, coking, metallurgy, chemical, and steel.
