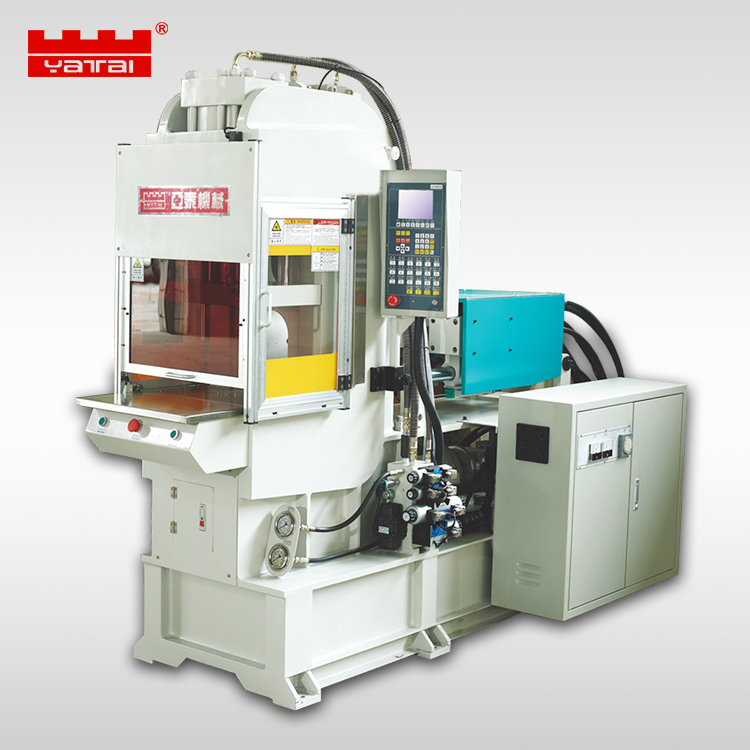

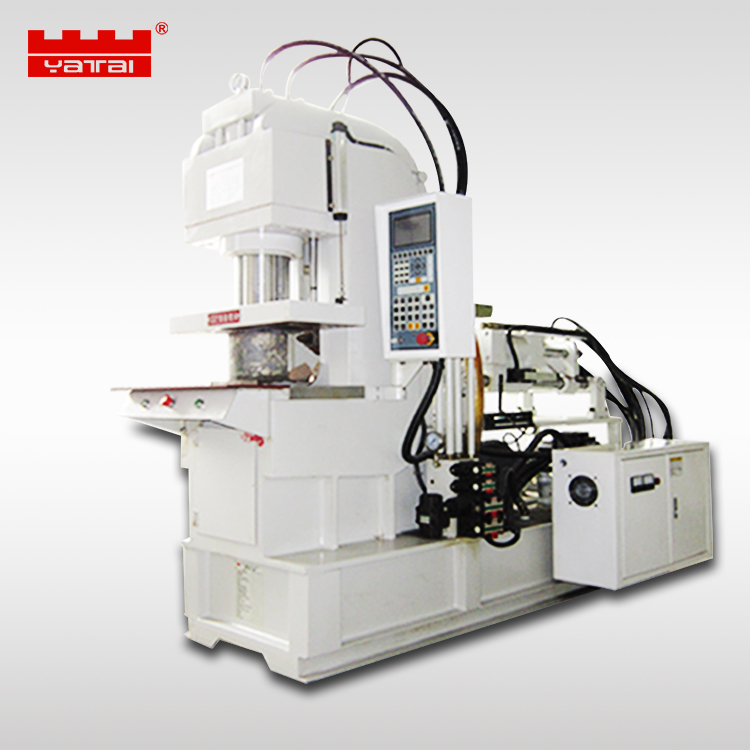

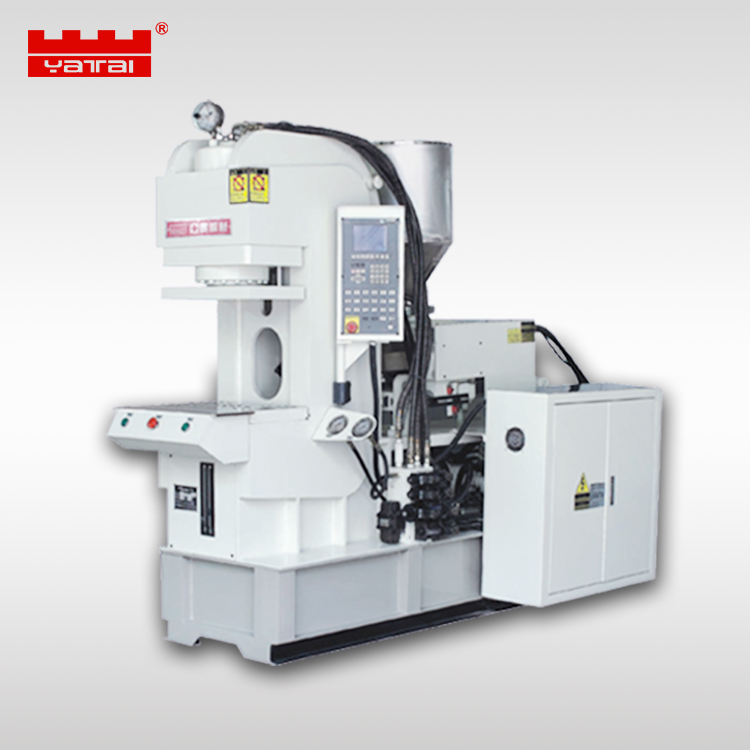

C-Type Vertical Injection Molding Machine (55/85 tons)

Features:

1. Vertical closed mold horizontal side injection molding.

2. Three (Four) Segment Screw Temperature Controller

3. The C-type body allows staff to operate without the hindrance of columns, enhancing work efficiency.

4. The lower mold fixed upper mold active design ensures that inlaid materials won't shift, guaranteeing the molded product.

5. Low-pressure mold clamping devices protect the mold.

6. Available for installation with double sliders or round disks.

Technical Specifications:

Model	Unit	YT-C55-C			YT-C85-C
Screw Diameter	mm	30	38	42	50	38	42
Theoretical Shot Volume	cm³	106	181	222	314	170	208
Injection Volume(PS)	g/0z	98/3.5	168/5.9	206/7.3	292/10.3	158/5.5	193/6.8
Injection Rate	cm²/see	72	125	153	217	117	142
Injection Pressure	kgf/cm²	2178	1760	1440	1016	1357	1111
Screw speed	rpm	0~240			0~300
Locking force	tf	55			85
Mold Trial Process	mm	200			270
Small and thick	mm	175			185
Large opening mold spacing	mm	375			455
Template Size	mm	490*288			590*396
Spacing between formwork columns	mm	-			-
Top Travel Itinerary	mm	90			90
Top Out Force	tf	2.7			2.7
High Pressure Large Hydraulic Pressure	Kgf/cm²	140			140
Actuating Oil Volume	l	185			350
Motor Power	kw	7.5(10HP)			15(20HP)
Electrical Heating Capacity	kw	6.8			7.5
Machine dimensions	mm	241040701940			287012502320
Total Machine Weight	kg	3000			5300
