The XVM-A series vibration motors operate safely and reliably, are easy to install and maintain, simplify structure, reduce costs, and allow for greater material processing capacity in vibration screens; the excitation force can be easily adjusted continuously over a certain range to meet various operational requirements; utilizing new sealing technology and imported seals significantly enhances the dust and moisture resistance of the vibration motors, ensuring safe and stable operation in high dust and high humidity environments; the XVM-A vibration motors offer enhanced stability, with advanced design and precise manufacturing processes ensuring a long service life.

The XVM-A series vibration motor features adjustable eccentric blocks installed at both ends of the double-extended rotor shaft, utilizing the centripetal force generated by the rotation of the eccentric blocks to produce excitation force. The vibration motor offers high excitation force, low energy consumption, low noise, and long lifespan. It is suitable for bin wall vibration in silos, hoppers, and chutes, as well as the excitation source for various vibration equipment like self-synchronous linear vibratory screens, vibratory feeders, and conveyors. It is an ideal equipment for metallurgy, mining, coal, building materials, chemical industries, and more, with a wide range of applications for vibratory screens.

Technical Features of the XVM-A Vibration Motor:

1) This model vibration motor is designed and manufactured using the advanced VIMARC technology.

2) Advanced Design Technology: All parameter calculations and optimized designs are fully completed by computer workstations. Precise machining processes and a stringent quality system ensure that the components of the vibration motor work together and bear loads within the specified range.

3) Special electromagnetic design: The stator and rotor required for the vibration motor are both made of high-quality silicon steel sheets with excellent magnetic conductivity, reducing core eddy current losses, ensuring strong starting torque, and allowing for quick achievement of rated operating speed.

4) Heavy-duty bearing design: All bearings used are heavy-duty, specially designed bearings capable of withstanding and transferring radial excitation forces and axial loads, with excellent heat dissipation. Dual seal design ensures the bearing chamber remains clean in severe dust environments. Imported high-temperature-resistant lithium-based grease lubricant is used to extend the bearing service life.

5) Infinite Adjustment: The vibration motor's exciter blocks are marked with precise scales, allowing for easy adjustment of the excitation force and working torque from zero to infinity, meeting working requirements.

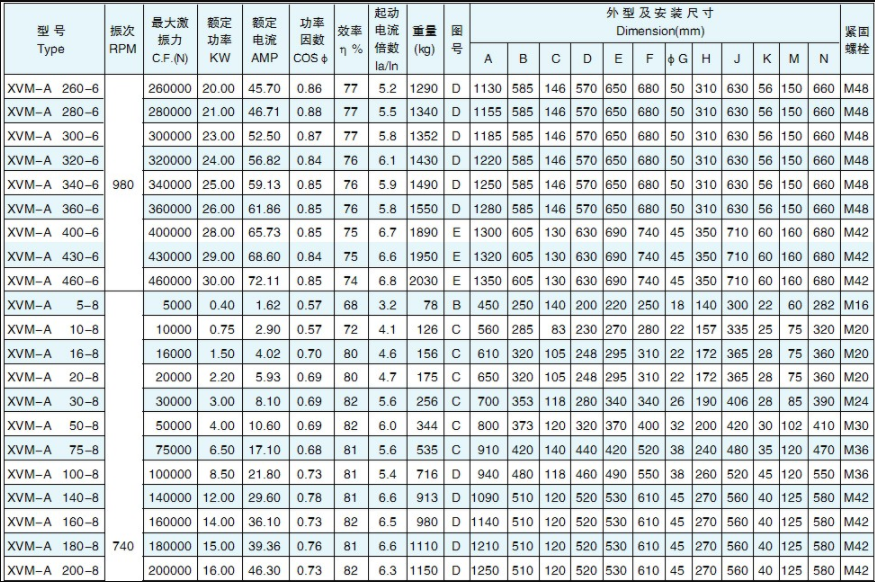

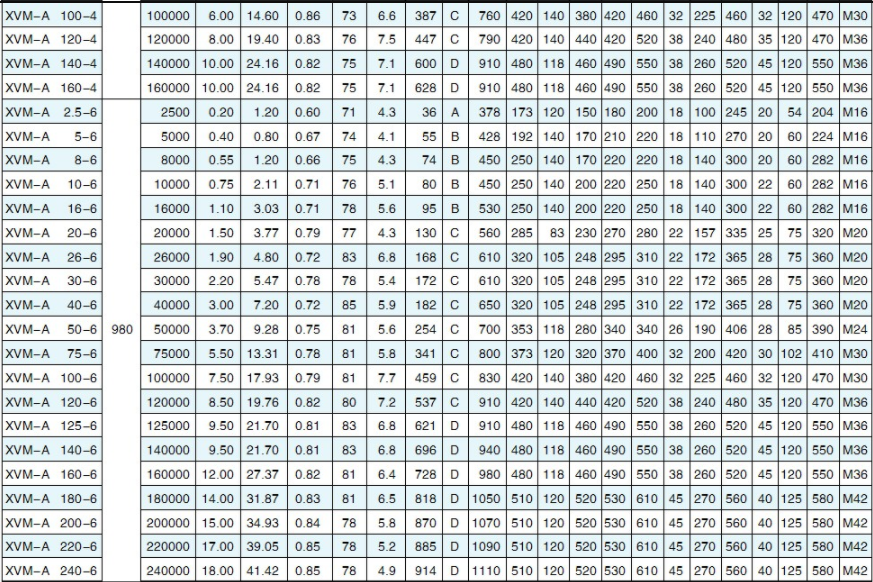

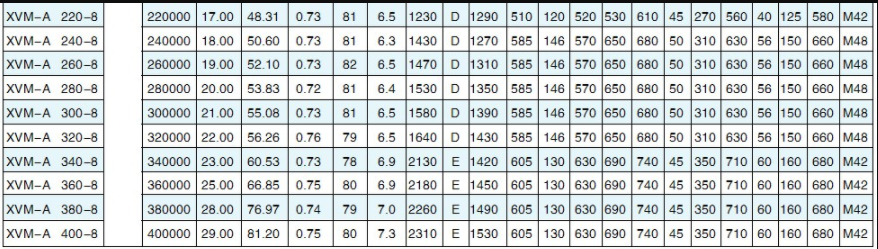

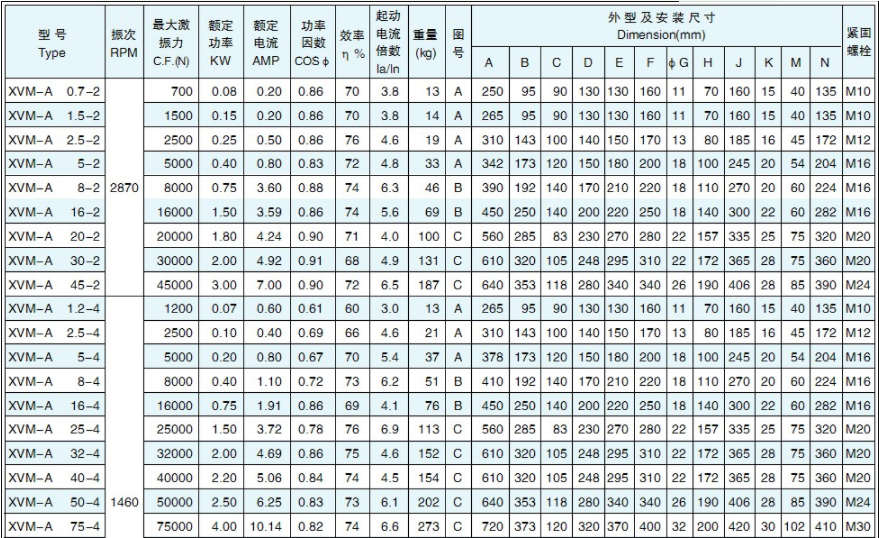

Technical Parameters of XVM-A Series Vibration Motors:

Rated Voltage: 380V

2. Rated Frequency: 50Hz

3. Protection Class: IP55

4. Allowable environmental temperature: -20℃ to 40℃

Insulation Grade: B Class

6. Work Schedule: Continuous

Ordering Instructions for Vibrating Motors:

Please specify the specifications, power, vibration force, number of poles, and quantity of the required product.

(2) Any special requirements for the face paint?

(3) Are there any special requirements for the motor leads?

(4) Vibrating motors with customizable special parameters, such as special voltage, special installation dimensions, etc.
