详情描述

YZO vibration motors are widely used in general vibration equipment such as vibration crushers, vibration separators, vibration packers, vibration sand fallers, vibration molders, vibration pile drivers, vibration hoists, vibration fillers, and vibration de-arch devices for silos, etc. YZO vibration motors are extensively applied in industrial sectors including hydropower construction, thermal power generation, construction, building materials, chemicals, mining, coal, metallurgy, and light industry.

The YZO series vibration motor is an excitation source that combines the power source with the vibration source. It is equipped with adjustable eccentric blocks at both ends of the rotor shaft, utilizing the centrifugal force generated by the high-speed rotation of the shaft and eccentric blocks to achieve excitation force. The YZO vibration motor offers high excitation force utilization, low energy consumption, low noise, and long service life. The excitation force of the YZO vibration motor can be infinitely adjusted.

The YZO series vibration motors feature a design concept with a separate housing and base, maintaining the ease of maintenance from previous series. They utilize finned heat sinks for cooling, making them more suitable for harsh working environments and higher operating temperatures, thus reducing the overall maintenance costs of the motor. They are particularly suitable for users with long working hours, poor working conditions, and low maintenance levels. Additionally, this series of vibration screens and motors has been developed with different excitation forces and more reasonable installation dimensions, offering customers more options and ease of use.

YZO series vibration motor technical specifications:

Rated Voltage: 380V

2. Nominal Frequency: 50 Hz

3. Protection Level: IP55

4. Allowable environmental temperature: -20°C to 40°C

5. Work schedule: Continuous

Special parameter vibration motors can also be customized, such as special voltages, special installation dimensions, etc.

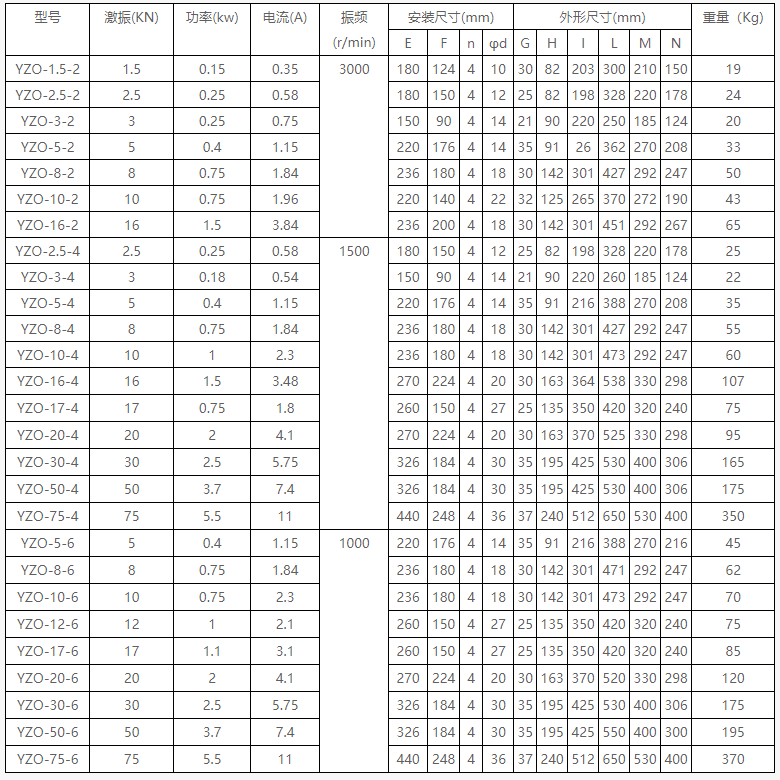

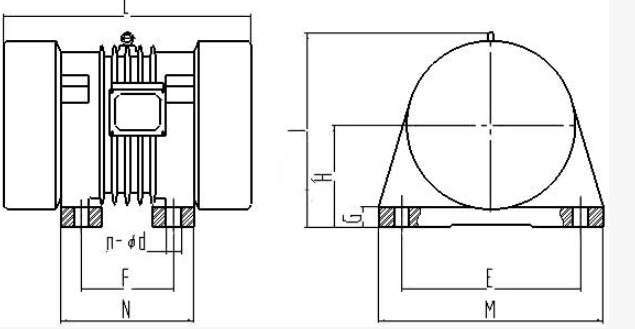

YZO Series Vibration Motor Technical Specifications:

Vibration Motor Order Instructions:

Please specify the specifications, power, vibration force, pole number, and quantity of the required product.

(2) Any special requirements for the face paint?

(3) Any special requirements for the motor lead wires?

(4) Customizable vibration motors with special parameters, such as specific voltage, special installation dimensions, etc.
