Feature highlights

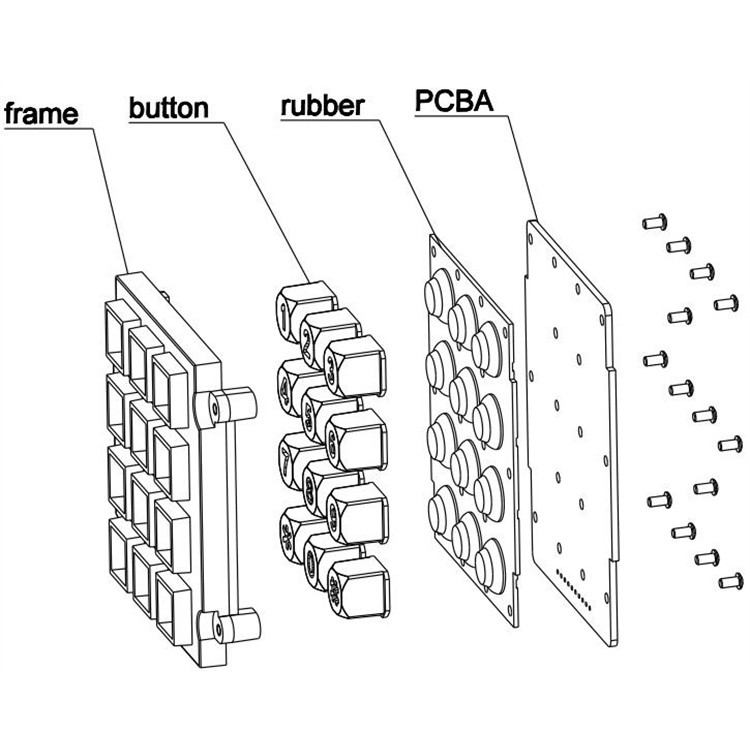

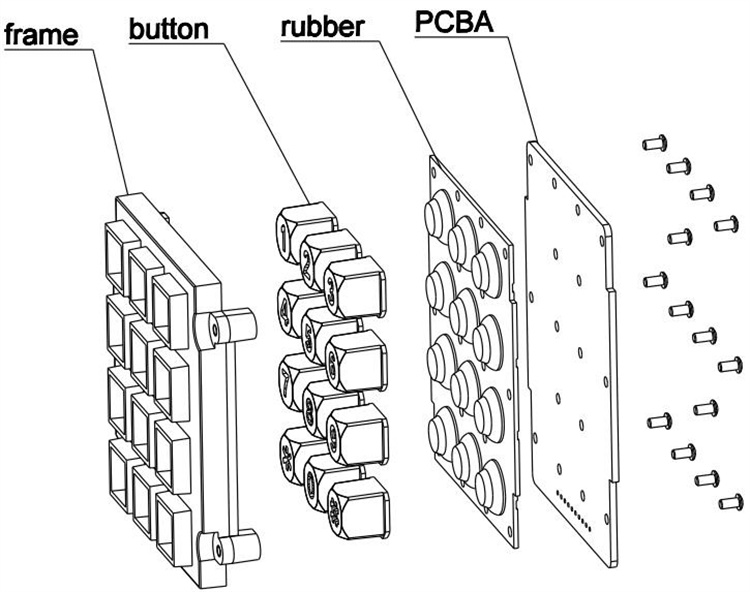

The keyboard assembly is composed of zinc alloy key frames and keys. The product boasts excellent anti-vibration, anti-corrosion, and waterproof properties. Particularly, it performs well in harsh environments and allows for easy operation.

2. User-friendly key layout with keys featuring die-casting and injection molding for improved operation; characters won't fall off or wear out even after long-term use. Key surface characters and patterns can be customized according to customer requirements.

3. The keyboard features a unique sealed film installation design, offering excellent waterproof and dustproof capabilities.

4. The keyboard PCB board is a double-sided gold-plated board with silicone conductive carbon layer contact, ensuring reliable connection.

5. The buttons feature LED light transmittance technology, offering high clarity and operable in low-light conditions.

6. The keypad features industrial-grade backlit keys (red/blue/green/white) with a variety of colors available.

7. Key frame and keypad surface plating colors: bright chrome, matte. Custom colors available upon customer request.

8. Conductive rubber is made from natural silicone, featuring wear resistance, corrosion resistance, and anti-aging properties.

9.3" x 4" keyboard design, featuring 10 numeric keys and 2 function keys. The key layout can be redesigned according to customer requirements.

10. Output interfaces include USB, PS/2, RS232, and XH connectors (optional).

11. Easy and convenient embedded installation.

Packaging Details

Outer Carton Dimensions: 42×35×11.5 cm

1 Case Quantity: 40 PCS

After-sales service

In the absence of human damage, our company is responsible for free repairs within 1 year.
