Suzhou Chip Collector

The Suzhou chip removal unit is compact and high-efficient; it is suitable for pairing with CNC, NC, and industrial machinery models. The chain plate widths are diversified, offering flexibility in pairing and effective application.

A one-piece chain link assembly with high strength, precise fit, and stable, quiet operation. A tight, raised dot design,

Effectively prevents particle adhesion and enhances dust removal capabilities. Torque limitation setting effectively reduces damage caused by improper operation.

Primarily used for collecting and conveying various types of rolled, clumped, and block-shaped chips, as well as materials like copper shavings, aluminum shavings, stainless steel shavings, carbon blocks, nylon, etc., which magnetic chip separators cannot handle.

Widely used in various CNC machine centers, combined machine tools, and flexible production lines. Also serves as a conveying device for stamping, cold heading machine small parts, and can be applied in sanitation,

The conveyor system in food production improves the operation environment, reduces labor intensity, and enhances the overall automation level. The chain plates can be custom-made in either stainless steel or cold-rolled steel, as per customer requirements.

Suzhou Chip Collector Product Categories:

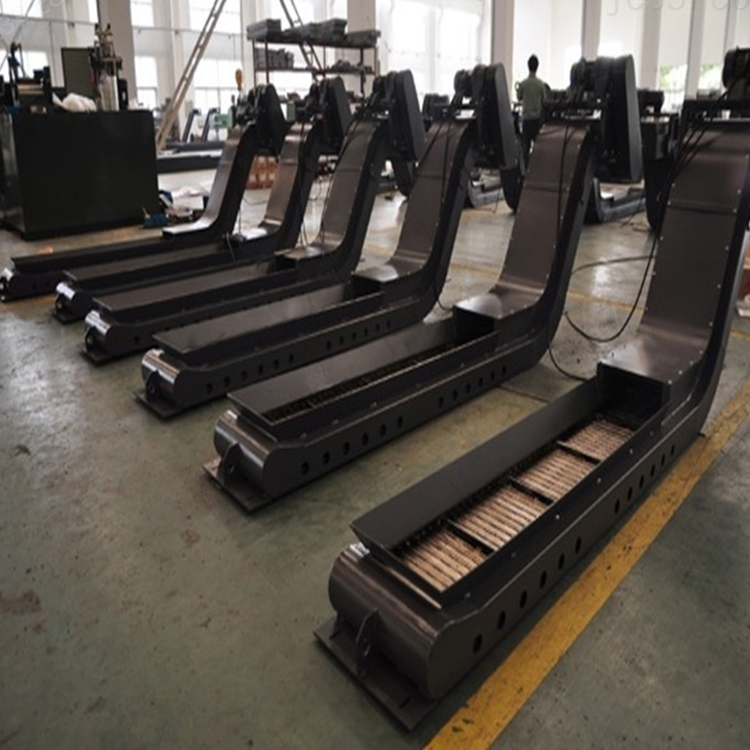

Chain Link Chip Conveyor

Primarily used for collecting and conveying various types of rolled, clumped, and block-shaped chips, as well as materials like copper shavings, aluminum shavings, stainless steel shavings, carbon blocks, nylon, etc., that magnetic chip separators cannot handle.

Widely used in various CNC machine centers, combined machine tools, and flexible production lines. Also serves as a conveying device for stamping, cold heading machine small parts, and is applicable in sanitation,

The conveyor system improves the operational environment, reduces labor intensity, and enhances the overall automation of the food production process. The chain plates can be customized to be made of stainless steel or cold-rolled steel according to customer requirements.

Magnetic chip conveyor

The magnetic roller chip conveyor utilizes the rotation of the magnetic roller to progressively transfer chips between each roller, thereby achieving the purpose of chip conveyance. This machine is developed based on the magnetic chip separator.

It compensates for the performance and structural shortcomings of magnetic chip separators in certain applications. Suitable for conveying powdered chip in wet processing, it is especially suitable for chip and cutting fluid with a high amount of oil contamination.

Note: 1. Due to the inherent characteristics of magnetic materials, this series of machines is not recommended for use in work environments with temperatures exceeding 80 degrees; otherwise, the reduction in magnetic field intensity may affect the working performance.

Due to the rotational movement of magnetic materials within the machine and the minimal gap between them and the work panel, foreign objects are strictly prohibited from colliding or pressing against the work panel.

In humid conditions, if the machine is not in use for an extended period, it's advisable to clean the liquid phase and keep it clean, Aelite chip remover.

Rake-type chip removal device

The scraper chip removal device offers a wide range of conveying speed options, high work efficiency, and diverse effective chip removal widths, providing ample selection for various applications such as CNC machines, machining centers, grinding machines, and automatic production lines.

The scraper features special chains on both sides, which are highly effective in handling metal particles and abrasive grains in grinding processes, as well as in dealing with aluminum shavings in the automotive industry.

The屑blades' height and spacing can be custom designed, ensuring smooth transmission, a compact structure, and high strength.

And can be customized with steel mesh backflush, chip scraper, eddy current separator, oil-water separator, etc., to form a comprehensive filtration system, enhancing the surface processing accuracy of the product.

Save coolant and reduce labor intensity for workers, a widely used machine tool auxiliary device.

Helical Chip Conveyor

This unit drives the rotating shaft with spiral blades through a reducer to push materials forward (or backward), concentrating them at the discharge outlet and falling into place. The machine is compact in structure.

Compact space requirement, easy installation and operation, fewer transmission stages, extremely low failure rate, especially suitable for machine tools with limited屑 removal space and where other屑 removal methods are difficult to install.

There are mainly four types: 1) with a rotating shaft and chip collecting groove; 2) with a rotating shaft but without a chip collecting groove; 3) without a rotating shaft but with a chip collecting groove; 4) without a core, without a chip collecting groove, and can be combined with other chip removal devices for use.
