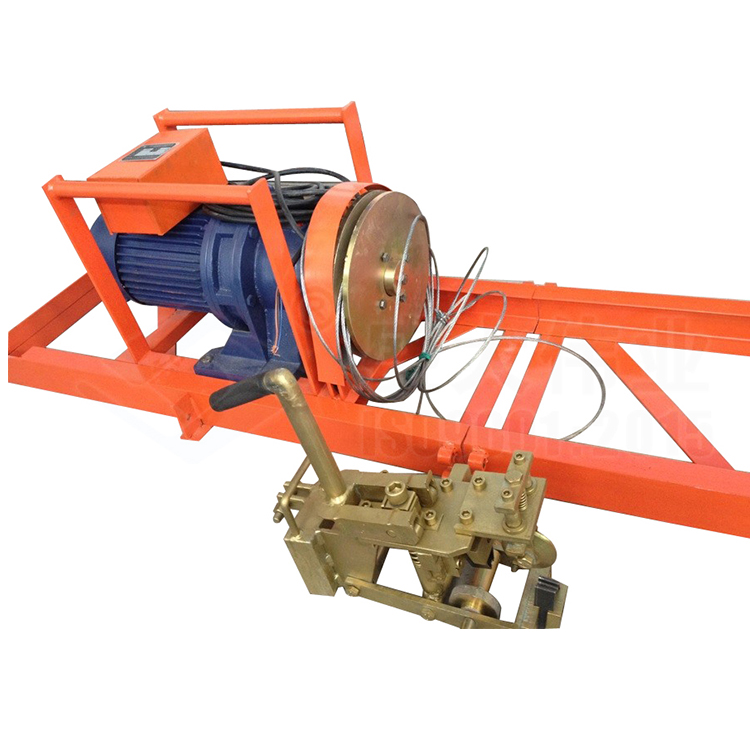

Usage:

Separation between the covering rubber of various fabric cores, steel wire rope cores conveyor belts, and between the covering rubber and steel wire rope, as well as between canvases.

Product Advantages:

High efficiency, low labor intensity, and lightweight, suitable for use in various environments.

Technical Specifications:

Power Supply: Voltage 380V, 50Hz

2. Power: 3 kW

3. Weight: 96 kg

4. Applicable Range: EP, NN, cotton duck, and various layered seams with junctions.

Usage Instructions:

Firstly, strip out a section of about 15 centimeters wide steel wire from the end of the wire rope transport tape. Remove the rubber on both sides and secure the tape.

2. Install the upper and lower blades, aligning the lower blade with the center of the steel wire rope. Adjust the tension of the pressure roller bolts, press down on the operating handle, and move the motor frame through the steel wire rope connection.

Engage the blade to disengage the rubber from the steel wire rope, and the stripping process is complete.
