Product Description:

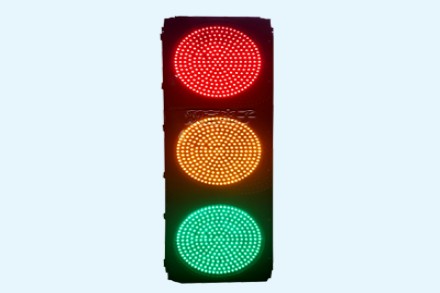

A full-screen of signal lights, displaying red, yellow, and green signals in a single screen.


Product Features:


1. Imported ultra-bright LED diodes, with strictly sealed LED lamps, resistant to high temperatures and vibrations, low power consumption, and long lifespan.

2. Single LED burn-out structure design, which does not affect the operation of other LEDs, offering higher reliability.

3. Waterproof and dustproof sealing, high temperature resistance, flame retardant, long service life.

4. Constant voltage and current power supply, operating normally within a range of 200-240VAC.

5. Clamp and bracket installation is straightforward, easy to assemble and disassemble.

The product has passed the inspection by the Public Security Ministry's Traffic Safety Product Quality Supervision and Inspection Center, meeting the requirements of the People's Republic of China GB14887-2011 standard.



Parameters:

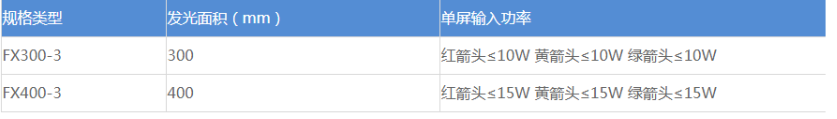

Specification: Φ300, Φ400, Φ500

Lamp housing material: PC, aluminum alloy, die-cast aluminum

Installation Methods: Horizontal, Vertical

Lumens Life: ≥100,000 hours

Central Wavelength: Red 625nm, Yellow 590nm, Green 505nm

Operating Temperature: -40℃ to +85℃

Working Voltage: DC 12V/24V, AC (220±20%)V (optional)

Field of View: ≥30°

Visible Distance: ≥500m

Warmth Performance: Relative air humidity 5% to 95% (no condensation)

Insulation Resistance: >10 MΩ

Wind Resistance Level: 145 m/h

Shell Protection Class: IP53
