Product Description:

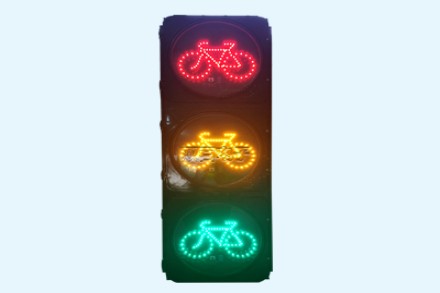

Non-motorized traffic signals, single-screen display of red, yellow, and green non-motorized traffic signals.


Product Features:

1. Import high-brightness LED diodes, with strictly sealed LED lamps that are resistant to high temperatures and vibrations, low power consumption, and long lifespan. 2. Single LED burn-out structure design, which does not affect the operation of other LED lamps, offering higher reliability. 3. Waterproof and dustproof sealing, heat-resistant, flame-retardant, and long service life.

4. Constant voltage and current power supply, operates normally within the range of 200-240VAC. 5. Clamp and bracket installation is simple, easy to assemble and disassemble.

The product has passed the inspection by the Public Security Ministry's Traffic Safety Product Quality Supervision and Testing Center, meeting the requirements of the People's Republic of China GB14887-2011 standard.


Parameters:

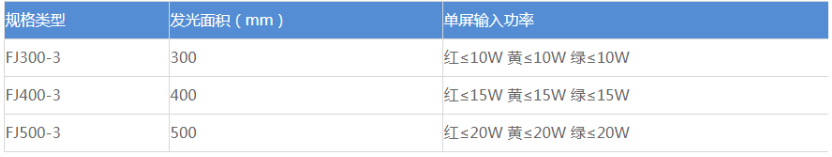

Specification: Φ300, Φ400, Φ500 (Any one to choose)

Lamp Housing Material: PC, Aluminum Alloy, Die-Cast Aluminum (Choose One)

Installation Methods: Horizontal, Vertical

Luminaire lifespan: ≥100,000 hours

Central Wavelength: Red 625nm, Yellow 590nm, Green 505nm

Temperature Resistance: -40℃ to +85℃

Working Voltage: DC 12V/24V, AC (220±20%)V (Optional)

Viewing Angle: ≥30°

Visible Distance: ≥500m

Warmth Performance: Relative air humidity 5% to 95% (no condensation)

Insulation Resistance: > 10 MΩ

Wind Resistance: 145 m/h

Shell Protection Rating: IP53
