Product Description:

Above is a red pedestrian pattern, below is a green pedestrian pattern displayed, with the green pedestrian pattern having a dynamic effect.


Product Features:



All specifications comply with the People's Republic of China GB14887-2011 "Traffic Signal Lights" standard.

Imported four-element ultra-bright LED lamp cores, even chromaticity, wide viewing angle, long visible distance, and long lifespan.

Utilizing silicone rubber sealing parts, dustproof, waterproof, and flame-retardant, effectively eliminating various potential hazards.



Parameters:

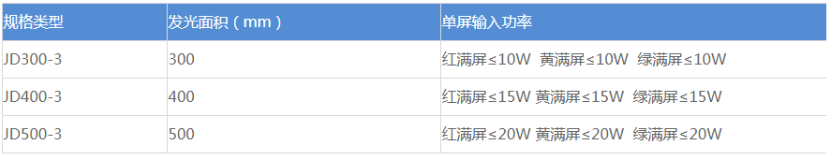

Specification: Φ300, Φ400, Φ500 (Any one size)

Lamp Housing Material: PC, Aluminum Alloy, Die-Cast Aluminum (Choose One)

Installation Methods: Horizontal, Vertical

Lumens Life: ≥100,000 hours

Center Wavelength: Red 625nm, Green 505nm

Operating Temperature: -40℃ to +85℃

Working Voltage: DC 12V/24V, AC (220±20%)V (Optional)

Field of View: ≥30°

Visual Distance: ≥500m

Warmth Performance: Relative air humidity 5% to 95% (no condensation)

Insulation Resistance: > 10 MΩ

Wind Resistance Level: 145 m/h

Shell protection grade: IP53
