Photoelectric Safety Barrier: Zhejiang Infrared Light Grid Sensor curtains react sensitively

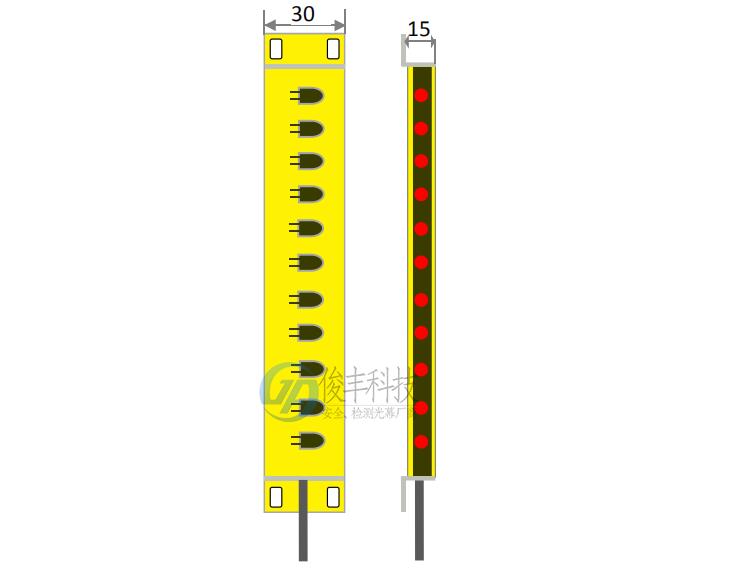

F15 Series Thin Safety Light Curtain, ultra-thin, with a thickness of only 15mm, suitable for applications requiring minimal space, close installation, or discretion. It can be used on machine doors for protection or start-up signals, as well as for passage detection or object through signal detection. It features a comprehensive self-check function, strong anti-interference capability, and output type: NPN output.

F15 Series Ultra-Thin Safety Light Grid Technical Specifications:

Optical Axis Spacing: 10mm, 20mm, 40mm, 80mm; other spacings available upon request.

Height Protection: 50-3500mm; other heights available upon customization.

Output Methods: Relay Output; Switched Output; NPN/PNP Output; Dual NPN/PNP Output;

Protection Length: 0-5000mm (default); 5000-30000mm. (Please specify at time of order.)

Safety Light Curtain Selection Guide:

Step 1: Match product type based on usage scenario and requirements.

Step 2: Select the required height for protection.

Step 3: Select the protected area; (choice of light axis spacing)

Step 4: Select the required output type.

The above models, specifications, and dimensions are for reference only. For more product models and technical specifications, please call for information.

Features of PTS Safety Photoelectric Sensors:

1. CE Certified, offering 4-level safety protection.

2. Full range of specifications, easy installation, and simple wiring.

Enhanced self-inspection feature

4. Strong resistance to electromagnetic and light interference.

5. Strong vibration resistance, superior waterproof and dustproof performance.

6. Features work status, line connection, fault indication, and optical function.

7. Features secure dual PNP and dual NPN outputs.

8. Optional 2nd and 3rd level cascade screens offer multi-directional protection.

9. Features EDM and output capabilities.

10. External testing, manual reset function (optional);

11. Fixed and floating shielding features (optional);

12. Configuration can be done using a handheld device or host computer software (optional).
