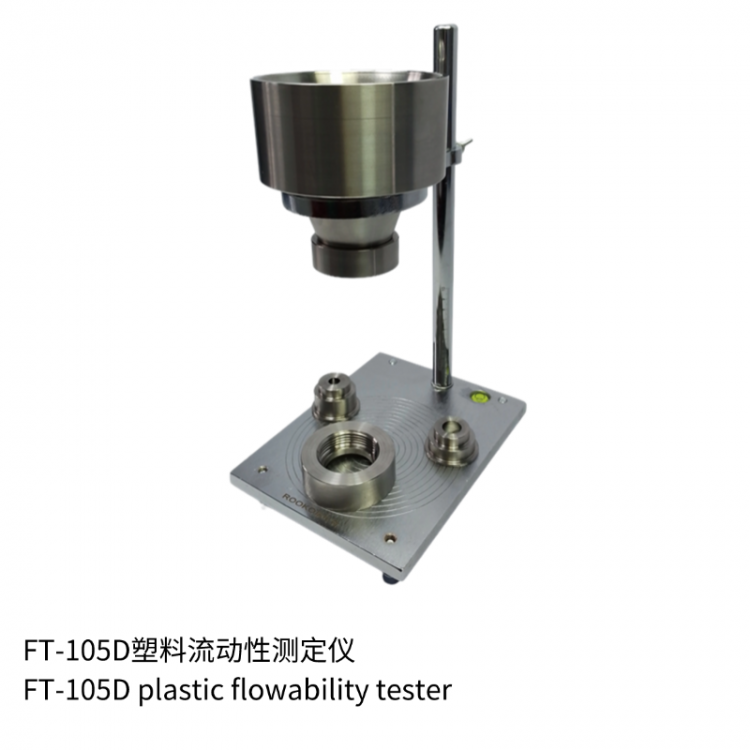

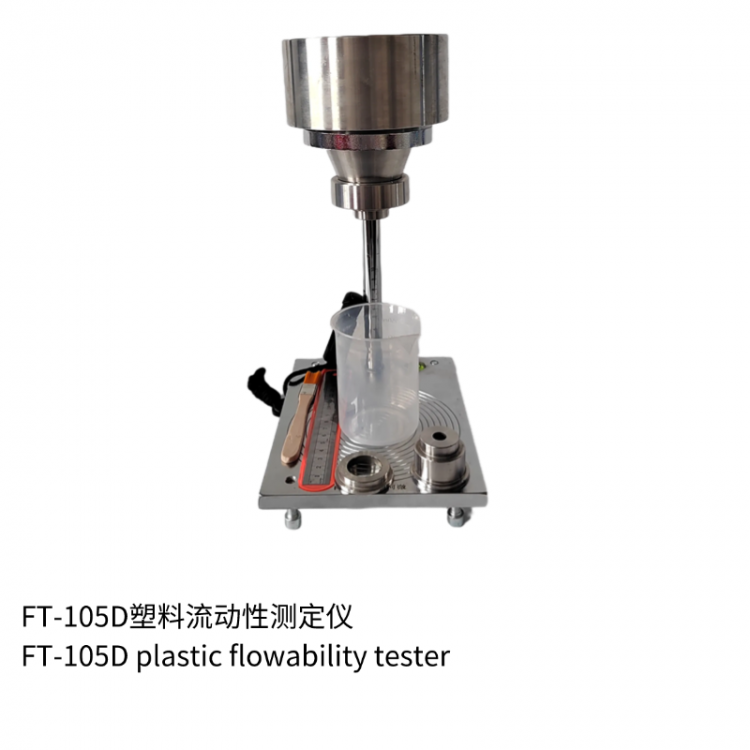

FT-105D Plastic Flowability Tester



Scope of Application

Two methods, Method A and Method B, are used to determine the flowability by measuring the time it takes for powdered or granular plastic to flow out of a funnel.

Method A provides information related to processing performance.

Method B is designed for process control during production.

Reference Standards

GB/T 21060-2007 "Determination of Plastic Flowability"

ISO 6186-1998 "Determination of Flow Properties of Plastics"

The time required for a sample with known quality or volume to flow through a funnel of specified size is represented.

Parameter DataTechnical data

Funnel: Funnel with convertible interface, stainlessSteel material, polished interior finish.

Funnels equipped with control valves and grounded with grounding wires.

The funnel has an upper diameter of 110mm and an angle of 40 degrees.

Export apertures are available in three sizes: 10±0.05mm, with a height of 140mm.

15±0.05mm, Height: 133mm;

25±0.05mm, height: 120mm

Refer to the standard requirements: If the sample's fluidity is poor, not fluid, or does not flow at all during testing.

Therefore, perform funnel tests with different diameters and note them in the test report.

Main Components: Base, Bracket, Export Control Valve, Funnel, Stopwatch, Steel Ruler, Brush
