Laser radar cutting-edge technology enhances crane collision avoidance with intelligence! Safety and efficiency soar!

A port has been shut down for 48 hours due to a traffic collision, resulting in direct losses exceeding one million yuan!!!

Today, we're discussing the collision avoidance applications of LiDAR technology in port cranes or double-decker workshop structures.

Pain Points: Limitations of Traditional Collision Prevention

Ultrasonic/Camera Solutions: Prone to weather interference, large blind spots, performance declines in night or foggy conditions

Manual Monitoring Reliance: Slow response time, difficult to handle sudden dynamic obstacles

❌ Single-Strategy Collision Prevention: Only offers fixed-distance alarms, unable to adapt to complex scenarios

Laser radar possesses "superpowers"!

He can:

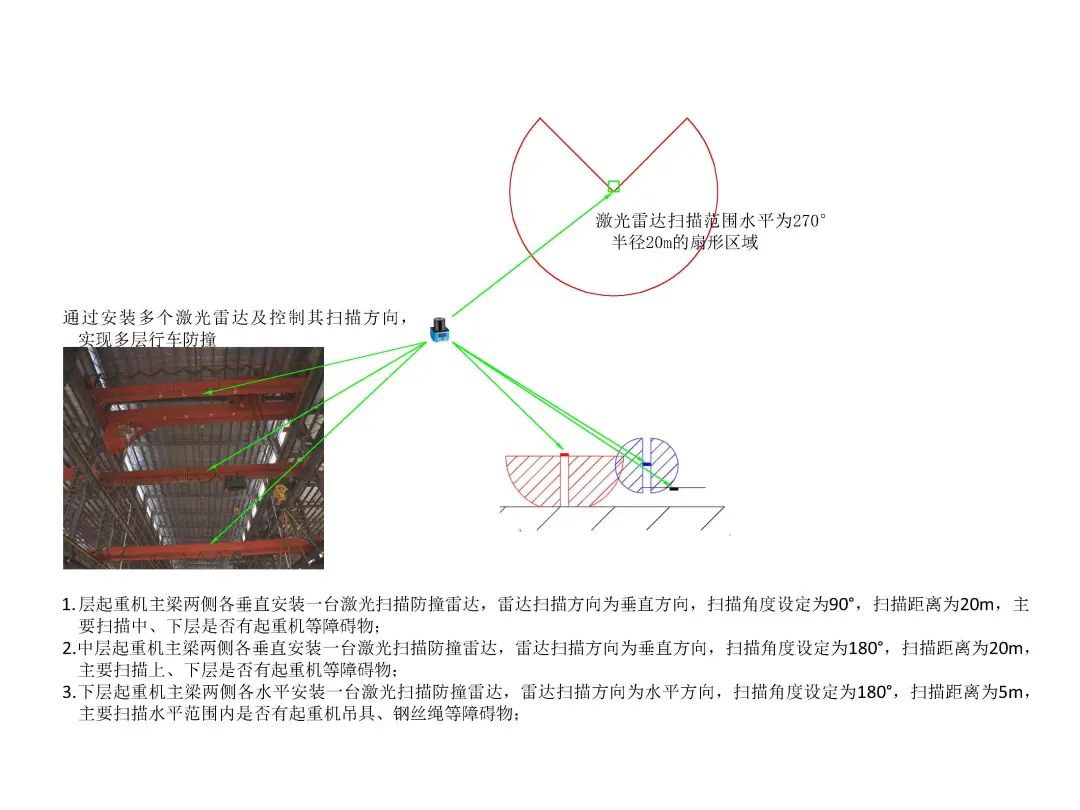

360-Degree Scan Coverage: Multi-line Laser Radar (e.g., 32-line/64-line) Constructs 3D Point Clouds, Real-Time Mapping of Work Environment Digital Maps

Dynamic Safety Zone: Automatically adjusts detection range based on speed (expands at high speeds, narrows at low speeds), reducing false alarms.

Multi-Level Early Warning System

·

30-meter early warning → 20-meter automatic deceleration → 10-meter emergency braking, tiered protection

Severe Weather Unstoppable: 1550nm Laser Penetrates Rain and Fog, More Reliable Than Traditional 905nm Radar

·

·

·

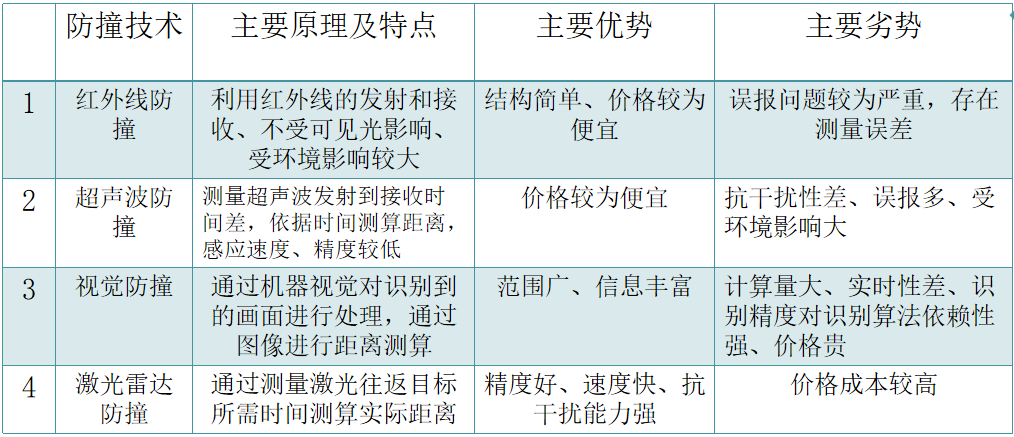

The comparison between traditional collision avoidance systems and LiDAR-based collision avoidance technology is as follows:

The Principles Behind the Black Technology

Multi-Sensor Fusion: LiDAR + Millimeter-Wave Radar + IMU, Data Complementary, Enhanced Anti-Interference

Enhanced with Intelligent Algorithms:

·

Dynamic clustering algorithms, such as DBSCAN, differentiate cranes, vehicles, and workers.

·

·

Collision Time to Contact (TTC) prediction, triggering braking 0.5 seconds earlier

5G + Edge Computing: Millisecond Response, Multi-Machine Collision Prevention (Latency < 20ms)

·

Future: Smarter Cranes

Solid-State LiDAR: Lower Cost, Longer Lifespan (May Drop to $500 per Unit in the Future)

Digital Twin Simulation: Risk Simulation 30 Seconds Ahead with BIM Models

Autonomous Cranes: LiDAR + AI, Stepping Towards Unmanned Operations

Laser radar elevates cranes from "passive protection" to "active obstacle avoidance," making it an indispensable safety guardian for smart construction sites! As the technology matures, future crane operations will be safer, more efficient, and even achieve full automation!
