Magnetic coagulation sedimentation technologyRevolutionary Concrete Clarification Technology



Introduction to Magnetic Coagulation Sedimentation Technology

Magnetically enhanced coagulation sedimentation technology is a process that synchronously incorporates a density-enhanced coagulant into the traditional coagulation sedimentation method.On April 8-5.1, the magnetic powder is used to combine with pollutants into a single entity, enhancing coagulation and flocculation effects. This results in denser and stronger flocs, achieving rapid sedimentation. The sedimentation speed of magnetic flocs can exceed 40 m/h. The magnetic powder is then recycled and reused through high-shear machines and magnet seed catchers (magnetic separator).

The entire process has a short dwell time, therefore, it is highly efficient for includingMost pollutants within TP have a very low probability of undergoing a reverse dissolution process. Additionally, the magnetite and flocculants added to the system exhibit excellent adsorption properties for bacteria, viruses, oil, and various microscopic particles. As a result, the removal efficiency of these pollutants is superior to traditional processes, with particularly remarkable phosphorus removal effects. Moreover, due to its high-speed sedimentation performance, it boasts numerous advantages over traditional methods, such as faster speed, higher efficiency, smaller land occupation, and lower investment. Magnetic coagulation sedimentation technology is a revolutionary new technology.

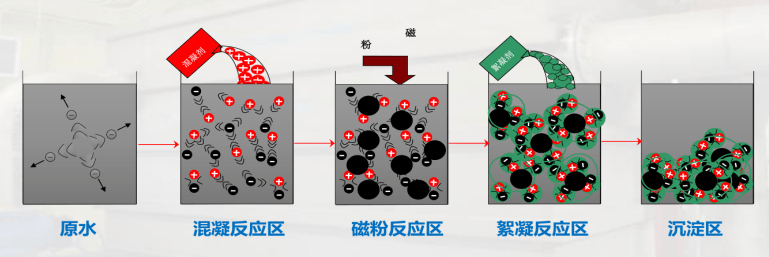

Magnetic coagulation sedimentation technology originated in the United States. Previously, the application of this technology in water treatment projects was limited due to the unresolved issue of magnetic powder recovery. Now, this technical challenge has been successfully addressed, fully showcasing the technological and economic advantages of the magnetic coagulation sedimentation process. As a result, it has gained increasingly widespread application both domestically and internationally. Currently, in China, the engineering application of this technology in urban wastewater treatment, reclaimed water utilization, river black and odorous water treatment, high-phosphorus wastewater treatment, paper mill wastewater treatment, and oilfield wastewater treatment has gradually been implemented, yielding favorable results. The wastewater to be treated first enters the treatment facility...Level 1 mixing pond, where coagulant PAC is added to the pond and thoroughly mixed before being transferred to the Level 2 mixing pond. Here, it is mixed with reclaimed magnetic powder and回流污泥 to form flocs. The mixture then proceeds to the Level 3 mixing pond, where it reacts with the flocculant PAM added, creating larger floc particles. Subsequently, it enters the sedimentation pond for rapid settlement. The clarified water then flows to the next treatment stage or is discharged directly in compliance with standards.

Sludge settled in the sedimentation pond is partially recycled by the sludge recycle pump.The 2-level mixing pool continues to participate in the reaction, while another portion undergoes sludge stripping through a high-shear machine and then enters an magnetic separator for magnetite recovery. The recovered magnetite is reintroduced into the 2-level mixing pool for further reaction, with the remaining sludge being transferred to the subsequent sludge treatment system. The dosing room-prepared PAC and PAM solutions are transported to various dosing points by a dosing pump. PAC is added to the 1-level mixing pool, while PAM is added to the 3-level mixing pool.

Section 3: Application Fields
Wastewater Sector: ExcludingSS, Total Phosphorus; excluding particulate and some colloidal COD

(Our projects include: Wastewater Treatment Plant Upgrading; Deep Phosphorus and Suspended Solids Removal; River Black and Odorous Water Treatment; Heavy Metal Wastewater Treatment; Oil-Contaminated Wastewater Treatment)

Water Treatment Sector: Phosphorus and Algae Removal, Softening

IV. Process Features

High sedimentation rate, capable of achieving a sedimentation speed of up to 40m/h.

2. High surface load, up to 20 m³/㎡h ~ 40 m³/㎡h.

3. Short stay time, from intake to outflow can be as low as 20 minutes.

4. Effectively reduces land area requirements, with sedimentation pond coverage as low as 1/20 of conventional processes.

5. High-efficiency phosphorus removal, with the effluent total phosphorus (TP) as low as 0.05 mg/L.

6. High transparency with turbidity < 1 NTU.

7. High SS removal rate, effluent < 2mg/L.

8. Cost-effective magnetic powder recovery and usage; low operating costs.

9. Efficiently optimize dosing of chemicals, reducing operational costs; scenarios can save up to 15% of chemical dosage.

10. The system is compact (also available as a portable processing unit) and features automated control, with easy operation.
