Efficiency Up 30% and Energy Consumption Down 20% — This Technology Solves the Calcium Hydroxide Production Challenge!

Calcium hydroxide, a seemingly ordinary chemical raw material, is a versatile guardian of the environmental protection field. Its applications range from desulfurization of flue gas from waste incineration, to pH adjustment in wastewater treatment, and even carbon emission control in coal-fired power plants, deeply penetrating the entire chain of pollution control. However, the domestic calcium hydroxide industry is hampered by two major technical challenges: high energy consumption and low efficiency. Traditional production lines are characterized by complex equipment, excessive dust, and raw material utilization rates below 60%, leading to high environmental protection costs. With the implementation of the new "Law of the People's Republic of China on the Prevention and Control of Environmental Pollution by Solid Wastes," the pressure on enterprises to reduce emissions has surged, and a revolutionary technological innovation is already on the horizon.

Industry Pain Points: Traditional Production Bottlenecks

Currently, domestic calcium hydroxide producers largely rely on traditional multi-stage superimposed digesters, which are large in size, occupy much space, and have high energy consumption. Taking a waste incineration power plant as an example, a seven-stage digester requires multiple motors to drive, with a total power reaching hundreds of kilowatts, yet the calcium oxide conversion rate is only 60%-70%. More challenging is that the specific surface area (BET) of common calcium hydroxide is less than 7㎡/g, resulting in low desulfurization efficiency, high consumption, and easy generation of waste sludge. Environmental protection treatment merely addresses the symptoms rather than the root cause.

Breaking Through Technological Barriers: Generation Three Digestive Equipment Achieves the Impossible

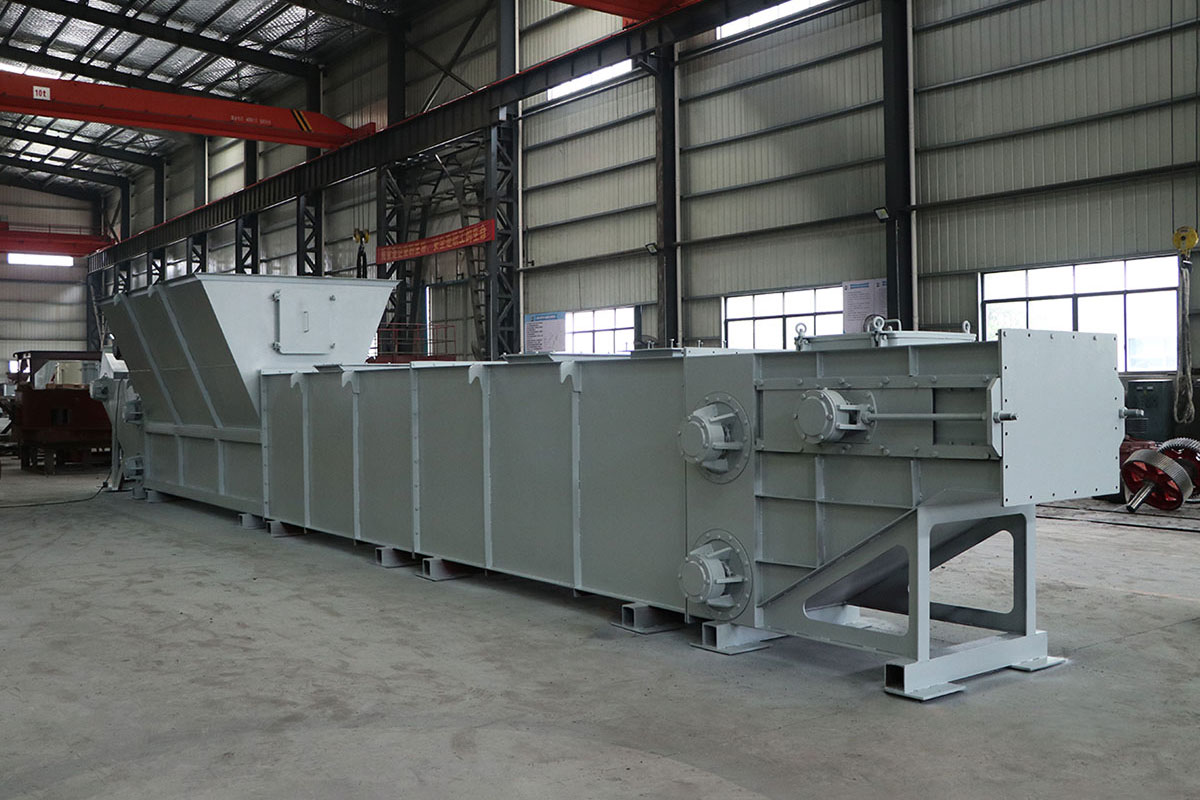

Guilin Mining Machinery has conducted research on the application of functional composite additives to address the deficiencies in the structure of existing mixing-pushing digesters, mixing overflow digesters, and production line technologies. It has innovatively designed the structure of calcium hydroxide digesters, developed the third-generation lime digesters, as well as equipment for producing medium-to-high specific surface area calcium hydroxide and an industrialized production demonstration line. This has resolved issues such as complex digester structures, low digestion efficiency, high energy consumption,不便安装维护，and the limitations of ordinary calcium oxide in quality, preventing its full application and the maximized generation of medium-to-high specific surface area calcium hydroxide.

Reduced energy consumption by 20%A single-stage continuous digestion chamber replaces the traditional stacked structure of three, five, or seven-stage digesters. The length of the single-stage digestion chamber can reach several meters, with a volume exceeding that of a traditional 2-7 stage digester by over 20%. The digestion time is longer than the cumulative time of a traditional 2-7 stage digester, and the motor power is only 1/6 of a seven-stage digester, resulting in a direct 20% reduction in energy consumption.

Increased Efficiency by 30%Through functional composite additives optimization, the conversion rate of ordinary calcium oxide raw material exceeds 95%, and the produced medium-high specific surface area calcium hydroxide (BET≥20㎡/g) achieves a desulfurization efficiency of over 85%.

Energy Utilization Rate Increased by 40%The配套 preheated water fog dedusting device reduces dust by 90%, improves the thermal energy recycling utilization rate by 40%, truly realizing the transformation of waste into treasure.

Technological Highlights: The Leap from Catch-up to Leadership

Structural RevolutionThe traditional seven-stage digester has been replaced by a single-stage chain stirrer, which can be adjusted in length up to 30 meters, reducing land occupation by 50% and lowering installation and maintenance costs by approximately 60%.

Smart ControlThe company's production line now features real-time multi-sensor monitoring of temperature and humidity, precise water distribution through intelligent algorithms, full-process automation, and a reduction in failure rates of approximately 80%.

Material InclusivityEven low to medium-quality calcium oxide (purity 70%) can be efficiently converted, solving the bottleneck problem of raw material dependence on imports.

Looking Ahead: How New Technology Will Catalyze a Trillion-Dollar Market

It is predicted that the domestic demand for calcium hydroxide will exceed 18 million tons by 2025, with the environmental protection sector accounting for over 35%. Thanks to the raw material advantage of the Karst terrain, Guangxi is accelerating its industrialization efforts. Multiple calcium hydroxide production lines have already been launched, propelling the local calcium carbonate industry chain to new heights. The project team stated, "This technology not only reduces costs and increases efficiency for enterprises but also contributes to the dual carbon goals. It is expected to be extended to 50% of national flue gas treatment projects within the next three years."

The third-generation lime kiln technology transforms energy hogs into energy-saving benchmarks, injecting new vitality into the environmental protection industry. As technological innovation meets policy momentum, the "chemical reaction" of green development is accelerating—this is not only an upgrade of the industry but also a缩影 of environmental protection commitment.
