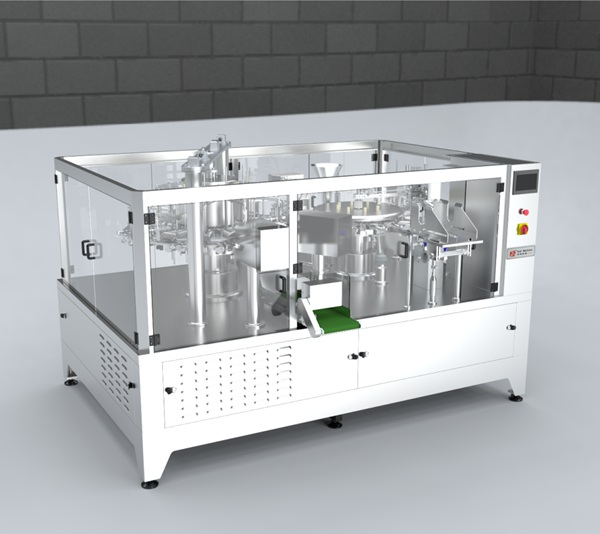

Vacuum Gas Displacement Machine

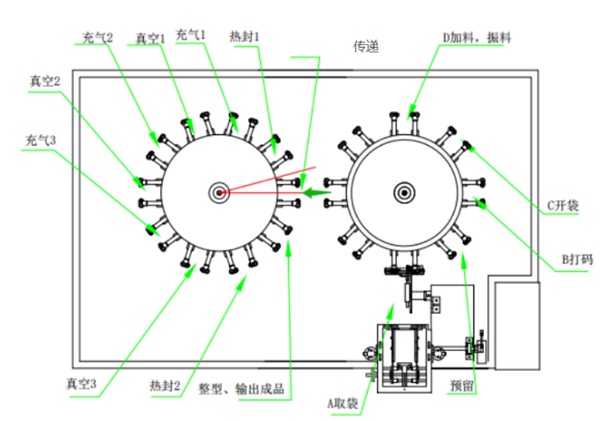

The QH12-180 model gas displacement bagging machine, through its bag delivery mechanism, transports finished bags (flat bags, stand-up pouches) to the pick-up station, where they are gripped and delivered to the turntable machine. The bags are coded, opened, inspected for opening, filled, pre-heated sealed, nitrogen filled, evacuated, and undergo multiple cycles of nitrogen filling and evacuation to achieve the required nitrogen content or vacuum state inside the bag. It is then re-sealed (fully sealed), shaped, and output. This equipment utilizes PLC control and a human-machine interface, meeting the requirements for high inert gas content or vacuum levels, catering to various industries' diverse needs.

1. User-friendly operation with German Siemens PLC control, featuring a touch screen human-machine interface control system

2. Variable speed control, featuring a variable speed control unit, allowing for adjustable speed within the specified range.

3. Automatic detection feature: No material added, no heat sealing performed, and bags can be reused when not opened or not fully opened, avoiding material waste and saving production costs for users.

4. Safety device: alerts with an alarm when the working pressure is abnormal or the heating tube malfunctions.

5. Equipped with random safety doors made of acrylic, the machine stops when the door is opened, protecting the operator.

7. Partially made with imported engineering plastic bearings, oil-free operation minimizes material contamination.

8. Utilize oil-free vacuum pumps to prevent contamination in the production environment.

9. Low packaging material waste; the machine uses pre-made bags with perfect patterns and good sealing quality, thereby enhancing the product's grade.

10. Meets sanitation standards for the food processing industry; all parts that come into contact with materials or packaging bags on the machine are made of stainless steel or other materials that comply with food hygiene requirements, ensuring the sanitation and safety of the food.

11. Wide range of packaging options available, suitable for particles, irregularly shaped blocks, and other materials, with the choice of different measuring devices.

12. The packaging bags have a wide range of applications, suitable for pre-made bags made from multi-layer composite films, single-layer PE, PP materials, as well as paper bags.

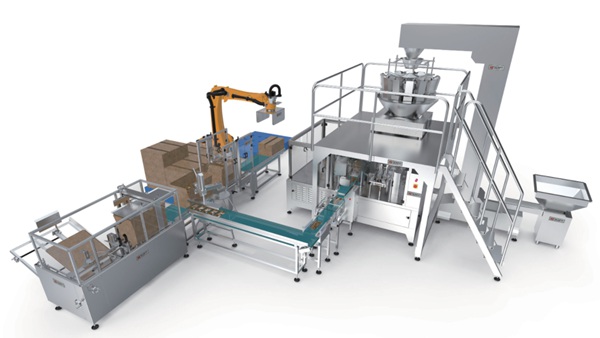

Production Line Diagram
