Multi-functional tablet press

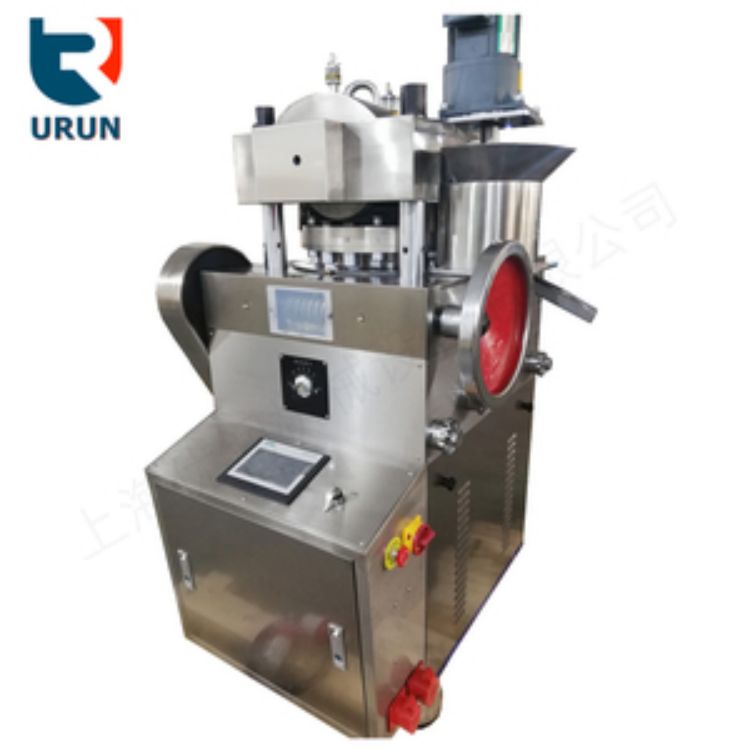

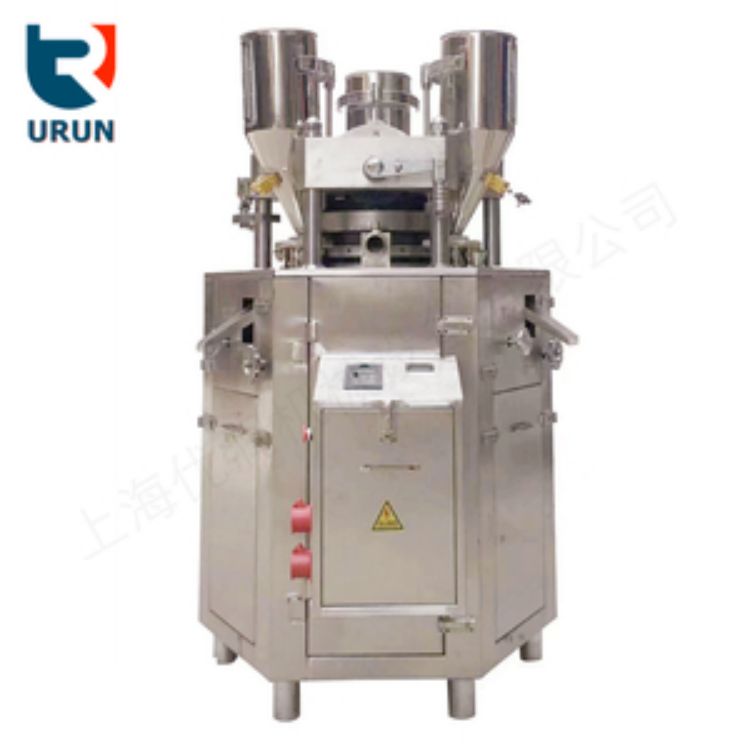

This unit is a three-pressure automatic rotating tablet press, capable of continuously compressing granular raw materials into round tablets, embossed and irregular shapes, bi-color, and tri-color tablets. It is primarily used for:

Tablet production for industrial use, suitable for chemical, food, and electronic industrial enterprises.

Key Features:

The outer casing is a fully enclosed stainless steel design, with the interior countertop made of stainless steel to maintain surface luster and prevent cross-contamination, meeting GMP requirements.

2. Equipped with an acrylic glass observation window, allowing visibility of the pressing status. The side panel can be fully opened for easy internal cleaning and maintenance.

All controllers and operating parts are logically arranged.

4. Equipped with a variable frequency speed control device for electrical speed regulation, easy to operate, smooth rotation, and safe and accurate performance.

5. Equipped with an overload protection device, it can automatically shut down when overpressure occurs.

6. Implement mechatronics, featuring touch keys and screen display.

7. First to trial semi-automatic lubrication equipment and dust-proof glass cover on the top of the turntable.

8. The transmission system is sealed within the oil tank beneath the main unit, a safely separated independent component, ensuring no cross-contamination, and allows the transmission section to be immersed in an oil bath for easy heat dissipation.

And wear-resistant.

9. Equipped with a dust suction unit, capable of extracting dust inside the pressing room.

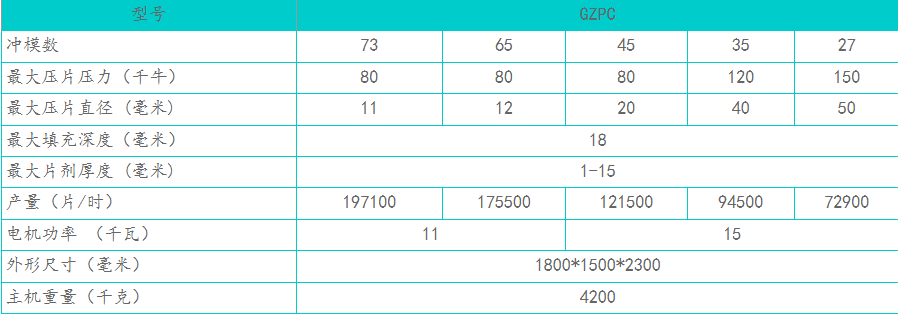

Main Technical Parameters:
