Grinder series

I. Equipment Overview:

This unit consists of three main parts: the main machine, the auxiliary machine, and the electrical control box, featuring various functions such as wind selection, sieveless, meshless, and uniform particle size, with a continuous production process.

Alright. The machine is equipped with a grading mechanism, enabling both crushing and grading to be completed in one operation.

Section II: Working Principle and Features:

Material is fed into the crushing chamber from the hopper via a spiral conveyor, where it is sheared and crushed by high-speed rotating blades. The material is then transported into the cyclone separator using a negative pressure air flow method. Bagged

Dust collectors ensure that the discharged material meets product specifications. Negative pressure conveying continuously exhausts the heat generated in the chamber during the crushing operation, making it suitable for powdered heat-sensitive materials.

Chipped.

Section 3: Equipment Applications:

Wide range of application, continuous production process, adjustable particle size, capable of handling materials such as: chemicals, food, pharmaceuticals, cosmetics, dyes, resins, shells

The machine achieves international advanced levels in the crushing and grading of various materials, such as stone, coal, and mineral powders, and is widely used in the crushing of materials in industries like chemicals and food processing.

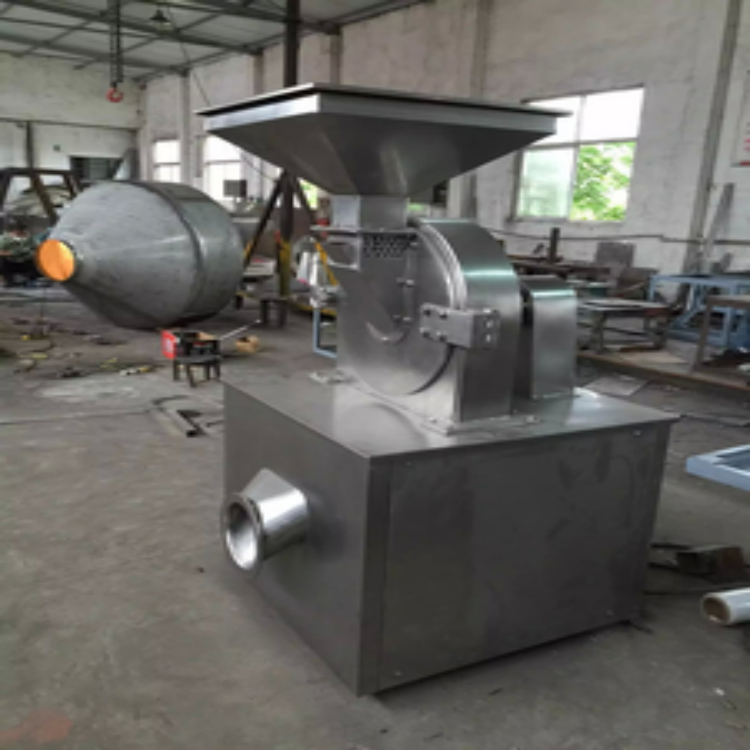

4. Crushing Machine Structural Features

The machine features a simple, sturdy structure, smooth operation, and excellent crushing effect. The crushed material can be directly discharged from the grinding cavity of the main unit, with particle size adjustable by replacing screens of different pore sizes.

Screened acquisition.

For heat-sensitive materials such as resin powder, white sugar, and salt, our water-cooled crushing machines can be used to effectively control the temperature during the crushing process.

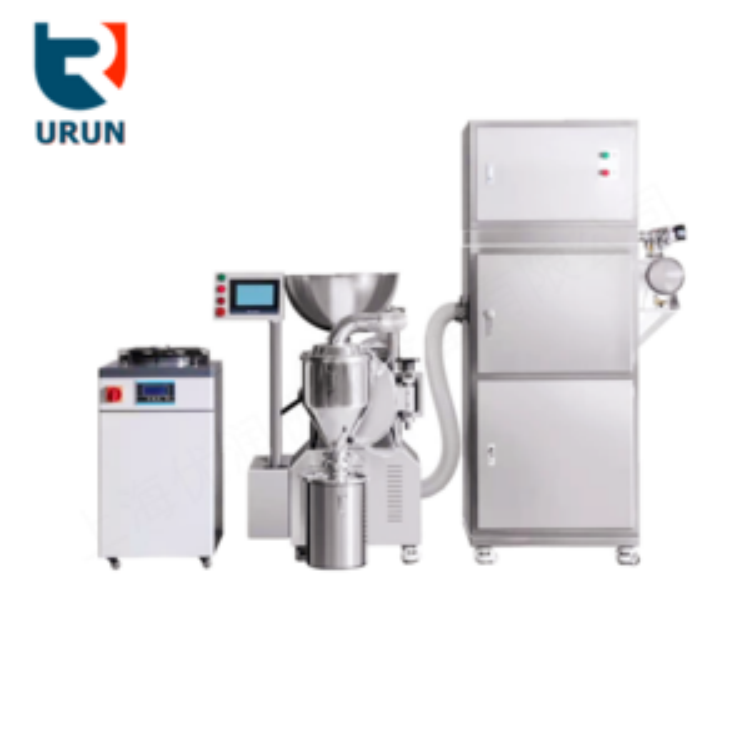

For customers requiring continuous large-volume crushing, our company's air flow crusher is available. It can transport the crushed material directly through an air flow pipeline.

Delivered to the storage yard, significantly reducing transit time; the air flow also carries away heat, ensuring the grinder can operate continuously for an extended period.

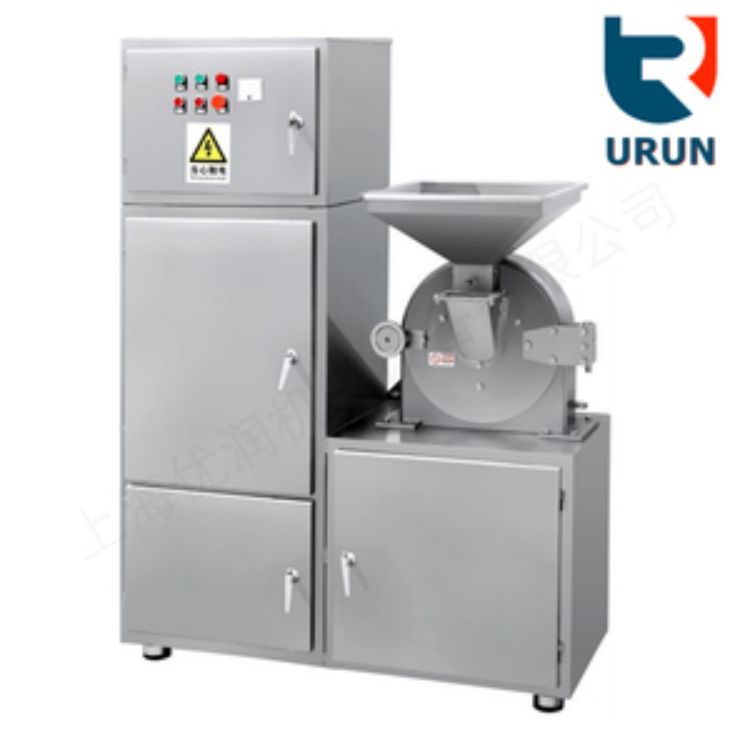

Customers are advised to choose a crushing machine with dust removal features when selecting. For materials with fine particle sizes, without a bag dust collection device, it may

Causing dust and material loss throughout the entire work area.
