Concrete Wall Cutting  Door and Window Opening Slotting Machine  Large Electric Wall Saws

Wall cutting machines are primarily used for building renovations, reinforcement, and design changes, capable of cutting large areas of walls for door openings, windows, or elevator shafts. They offer non-destructive structure, forming in one go, which not only avoids damaging the building structure from traditional hammering construction but also saves time, materials, and labor in drilling circular排孔, as well as significantly reduces the time and costs for adjustments.

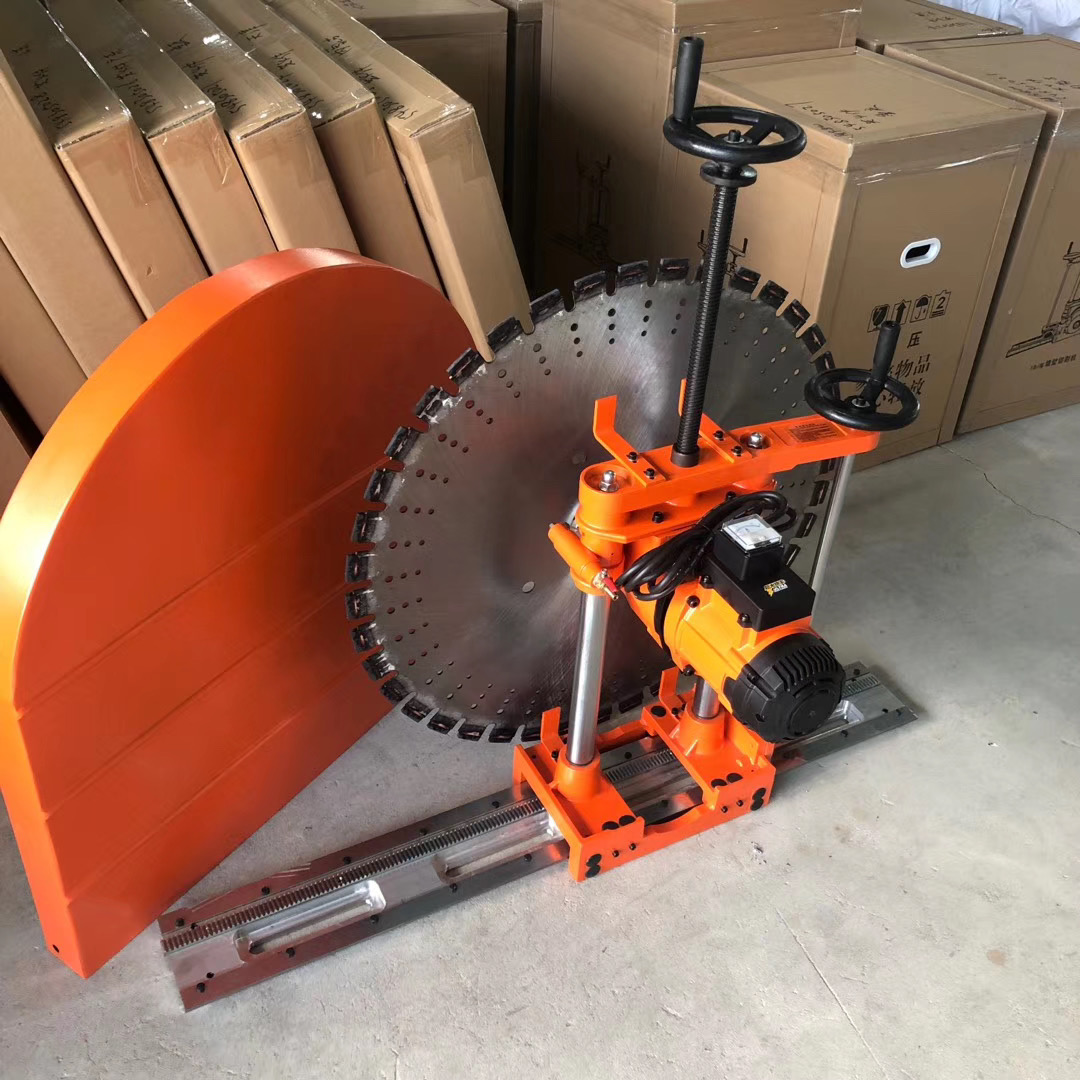

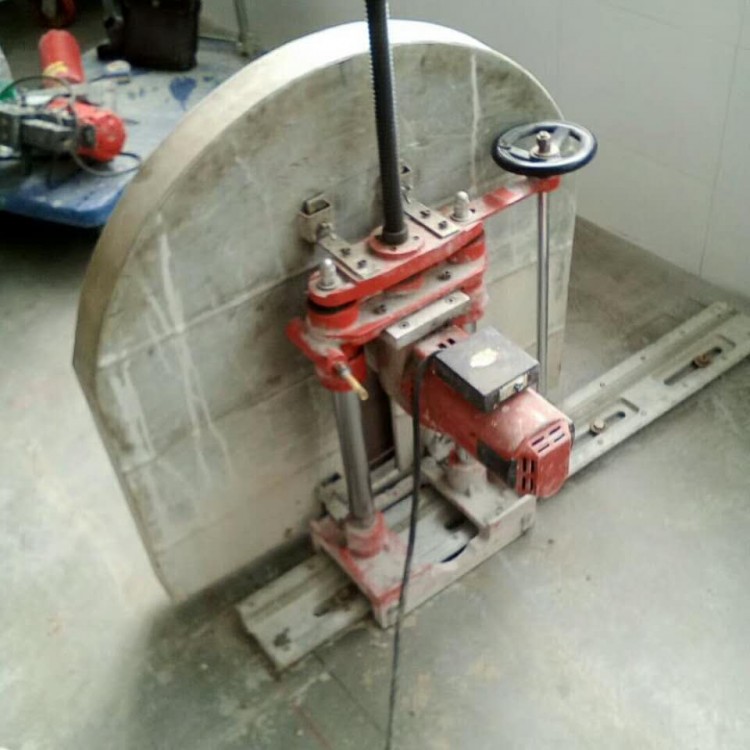

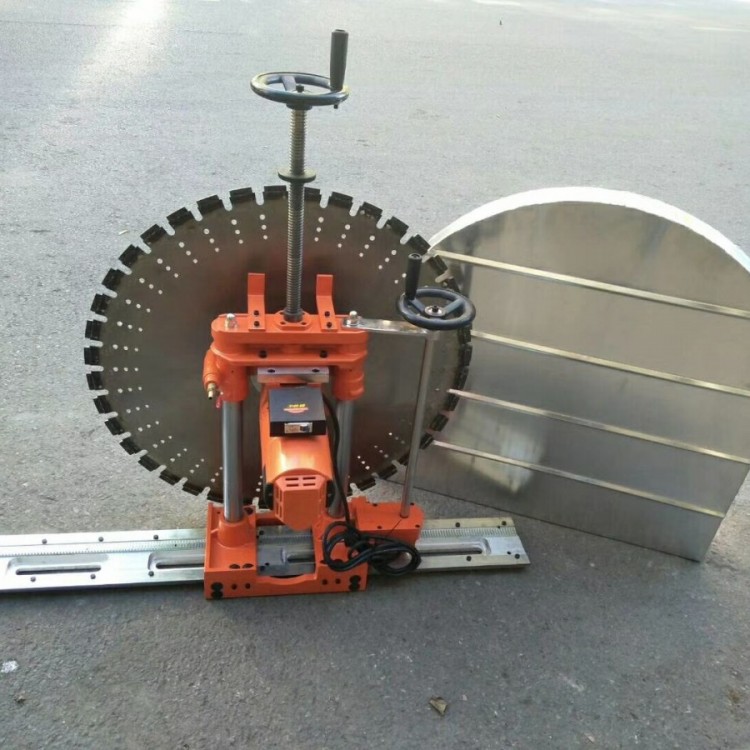

This machine is easy to operate. Secure the track with expansion screws, place the machine on the track (the track has teeth, and the machine has gears that won't slip off; movement is only possible via the handwheels), install the blade, the guard, and then operate the two handwheels. The middle handwheel controls the up and down movement of the blade, while the right-hand handwheel controls the machine's movement along the track. Efficiency varies by individual, generally we24-inch walls, 10 minutes per meter  Single-cut (cut once, lift the knife, move to the next cutting spot, cut again).

Utilizing heavy-duty dual-insulated high-power motors and gearboxes, with low failure rates and long service life, this saves on maintenance costs. A mechanical clutch protector effectively prevents damage to the machine and personnel due to incorrect operation. In addition to enhancing construction quality, it also accelerates the pace of construction.Reduce the labor intensity for the operator

Model                            ZX-800         ZX-1000

·

Frequency/HZ                       50-60          50-60

·

Saw blade/mm                      800            1000

·

Voltage/V                      220            220

·

Power/W                6880         7180

·

Cutting Depth/mm    320         420

·

Weight/KG                50             80

·

Dimensions/M                         1.0*1.0*0.8       1.2*1.2*0.8

·
