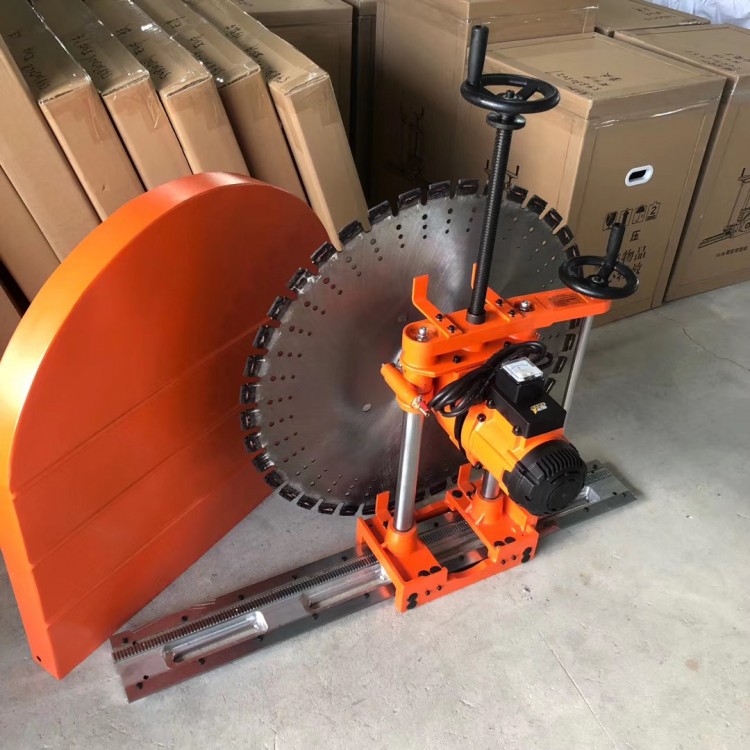

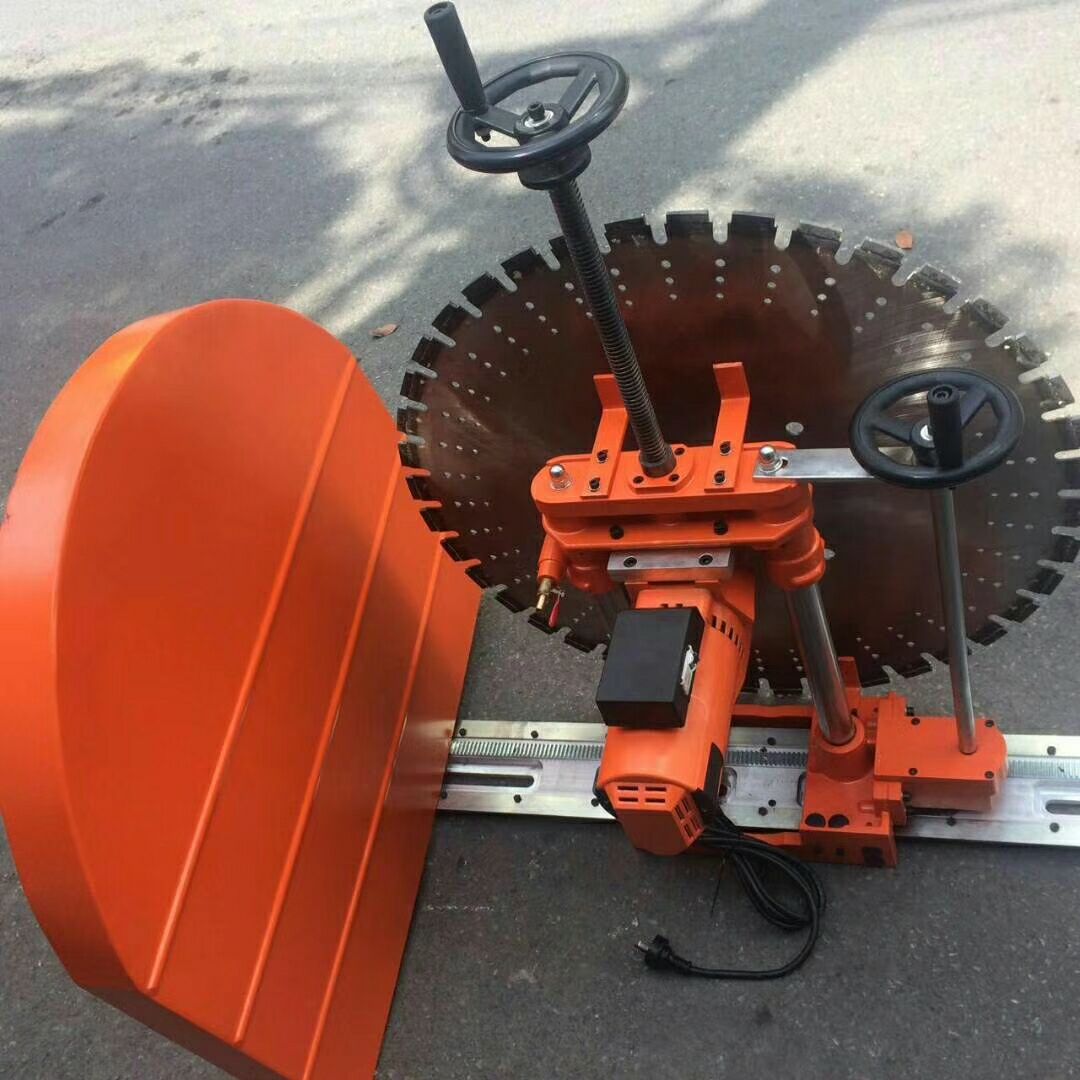

Wall Cutting Machine AY-800 Electric Demolition Wall Saw Manual Wall Saw

Wall Cutting Machine AY-800 Electric Demolition Wall Saw Manual Wall Saw

Reinforced concrete wall cutting machine30/40/50 cm Wall Cutting Machine, Wall Saw Blade for Reinforced Concrete, Concrete Wall Cutting Machine (for elevator shaft cutting, door hole cutting, wall cutting), Building Renovation Wall Grooving Machine, Wall Cutting Machine, Desktop Cutting Machine, Reinforced Concrete Cutting Machine 800, Concrete Wall Cutting Machine, Concrete Cutting Machine, Reinforced Concrete Cutting Machine 800, Concrete Cutting Machine, Cutting Depth 32CM, wall thickness: 24CM (standard), floor thickness: 13CM, panel wall thickness: 30CM. Manufacturer Direct800-1200 Desktop Wall Cutting Machine Wall saw steel Reinforced concrete cutting saw blade

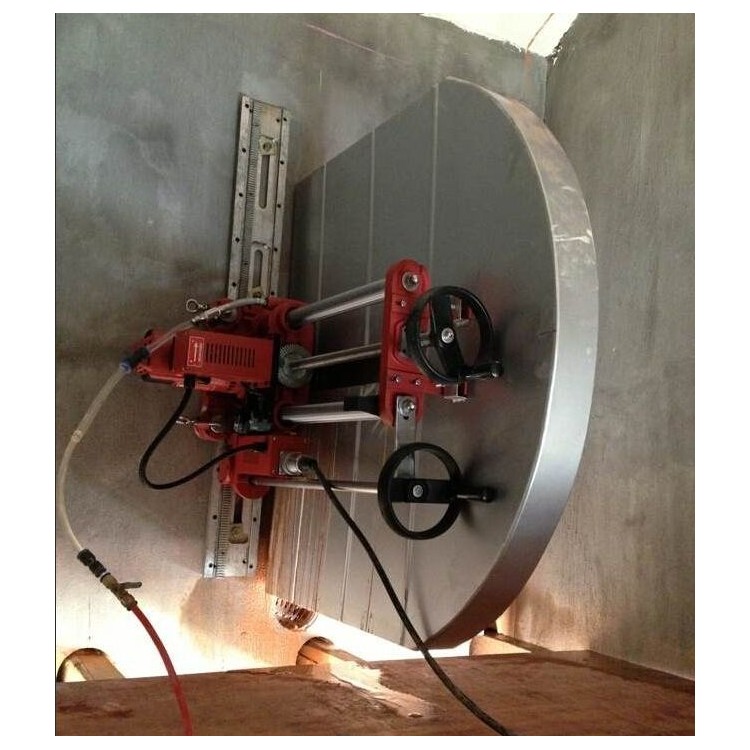

 Application Range: Suitable for concrete walls, brick walls, or stone surfaces, highways, bridges, and construction engineering cutting. It allows for cuts at any angle, occupies minimal space, and provides flexible control over the cutting area.

High power, stable output, export-grade gears, durable, quick cutting speed Higher material strength, twice as strong as regular cutting machines, with lifting screw made of bearing steel and widened threads.2x, betterDurable  Rarely requires replacement; dust cover with fixed corner and integrated overall design AY-800 Manual Cutting Machine (Best Seller) Technical Specifications:

Motor Power:6680

Power Voltage:220V

Saw blade speed:300-600R/MIN

Blade Diameter:800MM

Cutting Depth:32 cm

The complete set of machines includes:

Server and Rack    Power Motor

Thick custom aluminum alloy protective shield

2 1.2-meter tracks

1 piece  800 Blades [All blades here can be mounted on the side plate]

Carbon brush set, fixed bolts, and stainless steel washers4 sets, 4 waterproof cover fixing screws, 1 user manual, 1 certificate of conformity

Machine Features:

Each machine is personally fine-tuned by experienced technicians before leaving the factory, ensuring every unit meets quality standards.

Specific Usage:

The distance to the cut seam is16.5, the distance for the line stretch expansion.

Expansion is12mm internal expansion.

Cutting Techniques:

Not a quick up and down movement with a single cut, but rather a cut in and out, moving along the track for a segment, then another cut—cut in, cut out. This is a fast pace.

Machines cannot cut to the edge when leaning against the wall; generally, there needs to be some space.3 to 5 cm, for instance, to open a door, the bottom needs to be 5 cm from the ground. [To move to the side, please use the side stand.]
