Sulphurizing machine accessoriesElectricBelting剥LayerMachineBPJ-3  Wire Strip Peeler Machine

剥皮机Enable Please provide the Chinese content to be translated. Please provide the Chinese content to be translated. Ming Book

OneFeature Overview

    剥 layer for conveyor belt joints, especially suitable for nylon and canvas belts. One-time剥 layer width180mm. Enhance jointing efficiency and reduce labor intensity for workers.

   The XLP-200 electric stripping machine boasts the advantage of using a 220V voltage, which significantly reduces the electrical preparation required at the joint site. Additionally, the machine only35Pounds in weight, equipped with a carrying handle for easy portability.

Two  Composition

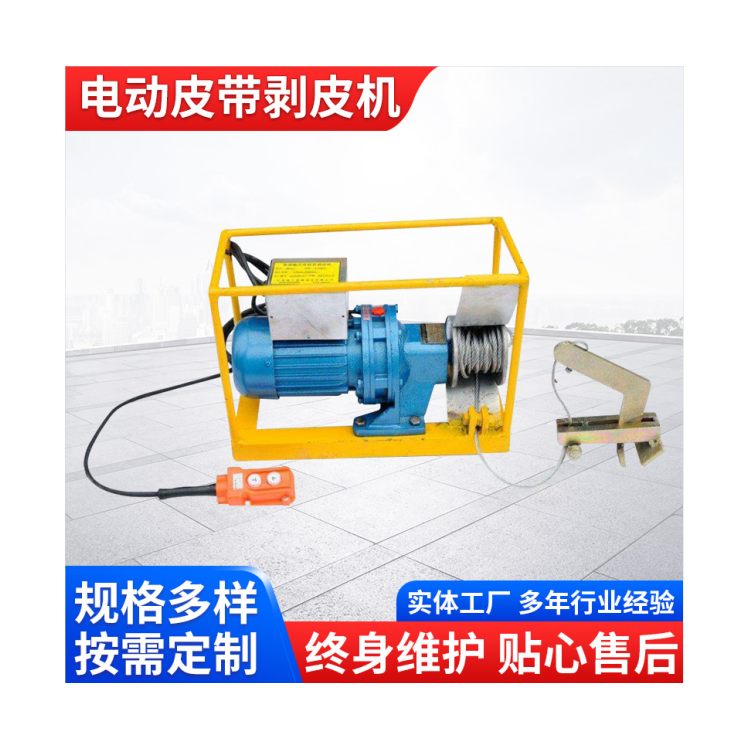

       XLP-200Type Electric Peel Layer Machine with handheld controller (1) Motor (2), Gearbox (3), Rope Drum (4), Rear Fixed Sleeve (5), Robot Arm (6), Handle (7) make up. The motor's output power is reduced through a meticulously designed gearbox, driving the rope drum, which in turn moves the robot arm at one end in and out, to accomplish the peeling operation.

The total length of the steel wire rope is 6 meters. When preparing for the stripping operation, pay attention to the distance between the stripping position and the fixed position of the stripping machine, which must not exceed 5.5 meters.

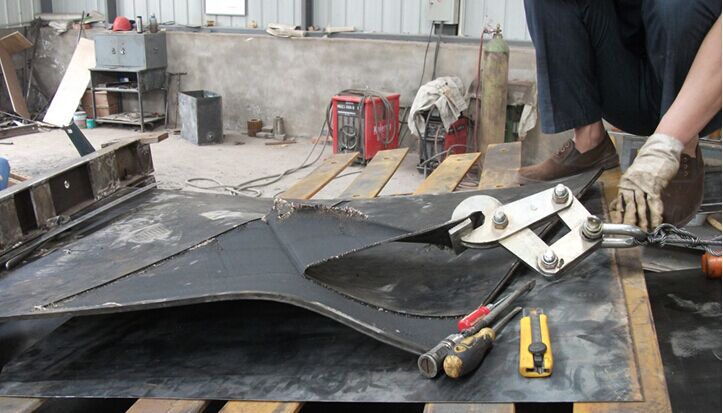

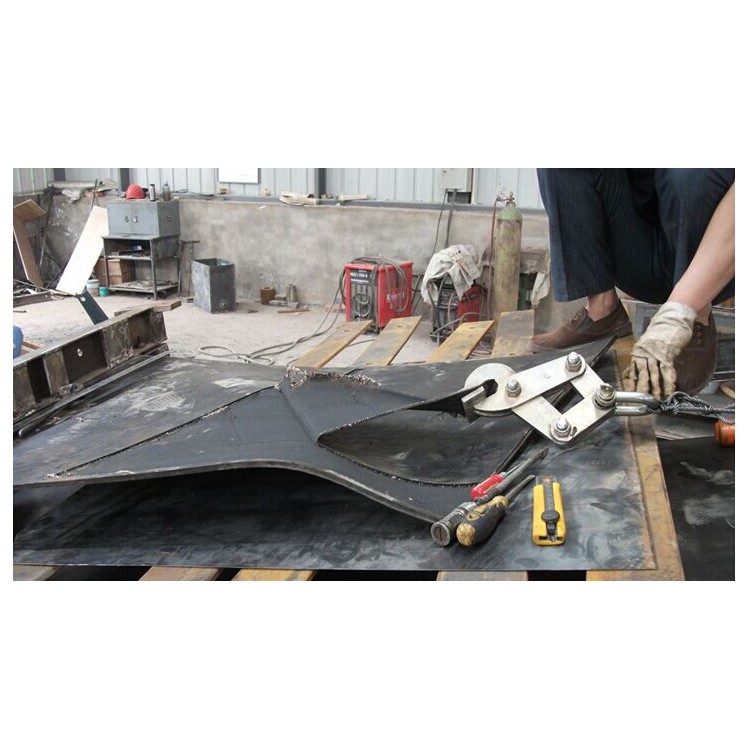

      Before peeling with the stripping machine, use a fixed sleeve to secure the stripping machine to a sturdy location. The stripping machine's pulling force can reach300Pounds, so it needs to be sufficiently sturdy. If it's not achievable on-site, reduce the width of each layer peeled to decrease the tension.

This剥层机can剥one layer of nylon belt at a time.180mm(With the two sides of the stripping line already fractured.) The width of the robotic arm is160mm。

FourImportant Notes & Troubleshooting

This剥层machine operates on an intermittent basis and is not designed for continuous, long-term operation.

In case of rope uncoiling, re-tie the wire rope properly. Replace the rope if significant wear is present.
